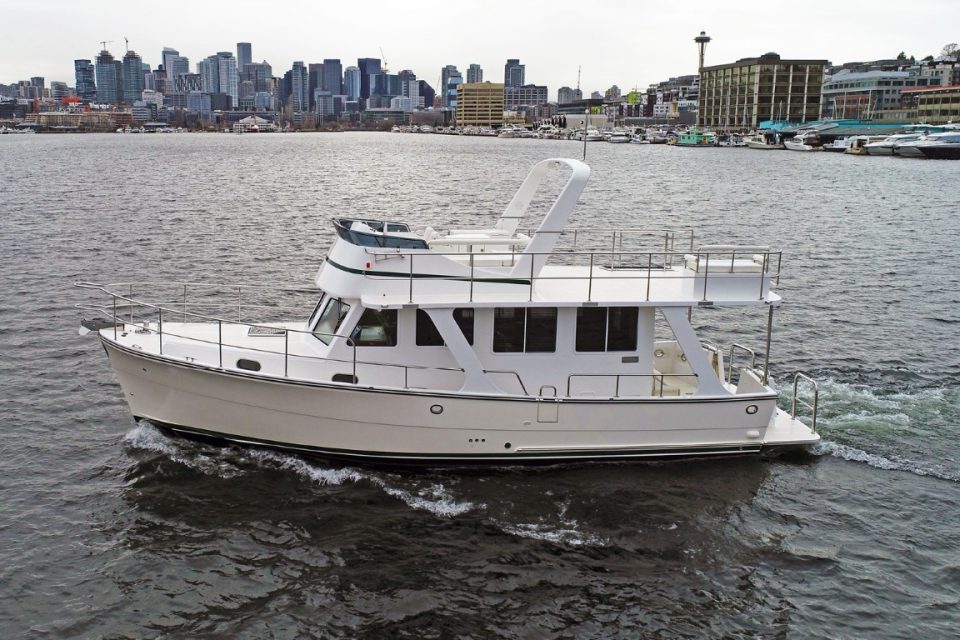

Helmsman Trawlers 38 Sedan

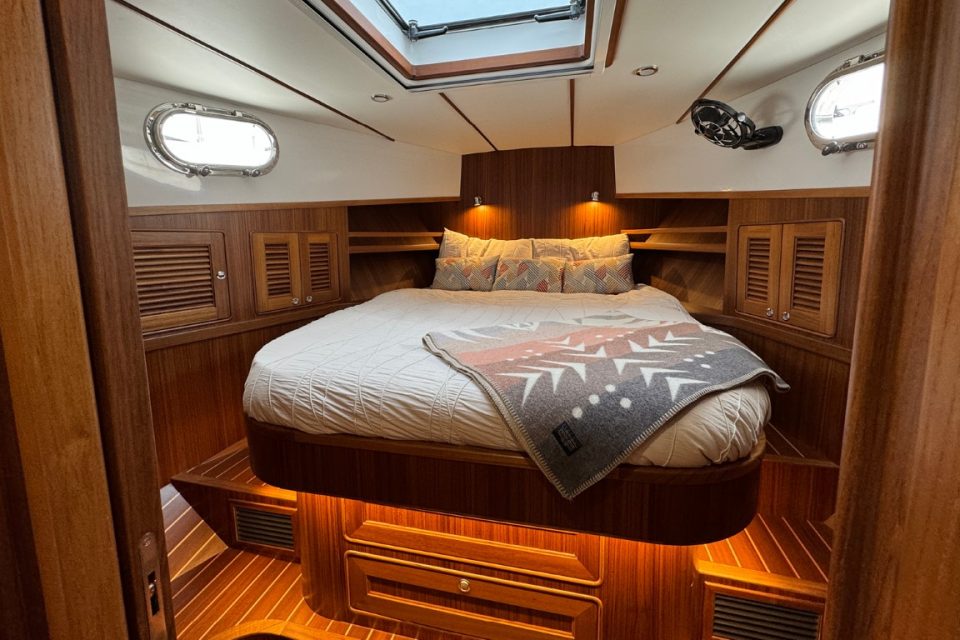

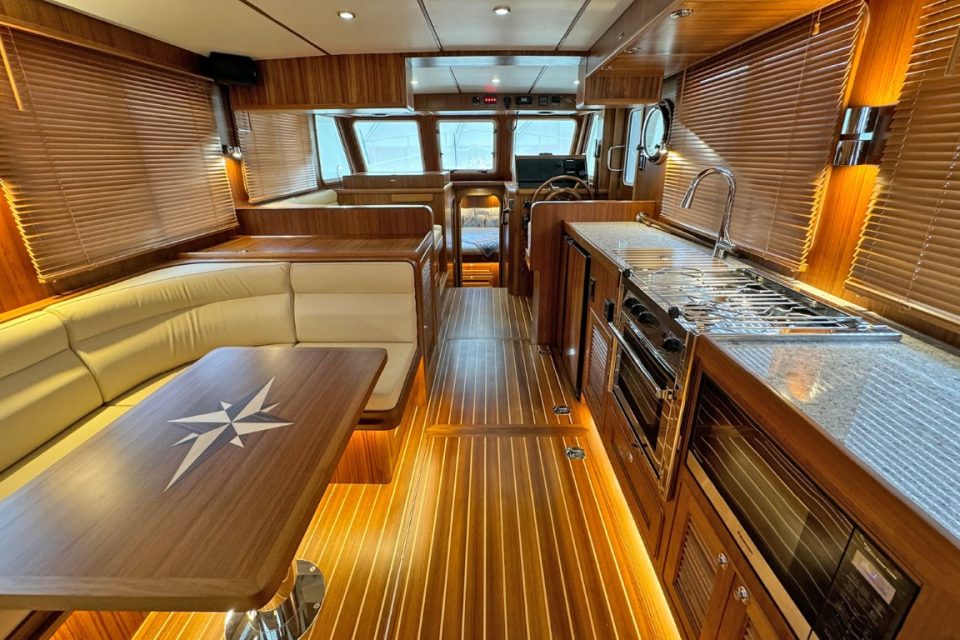

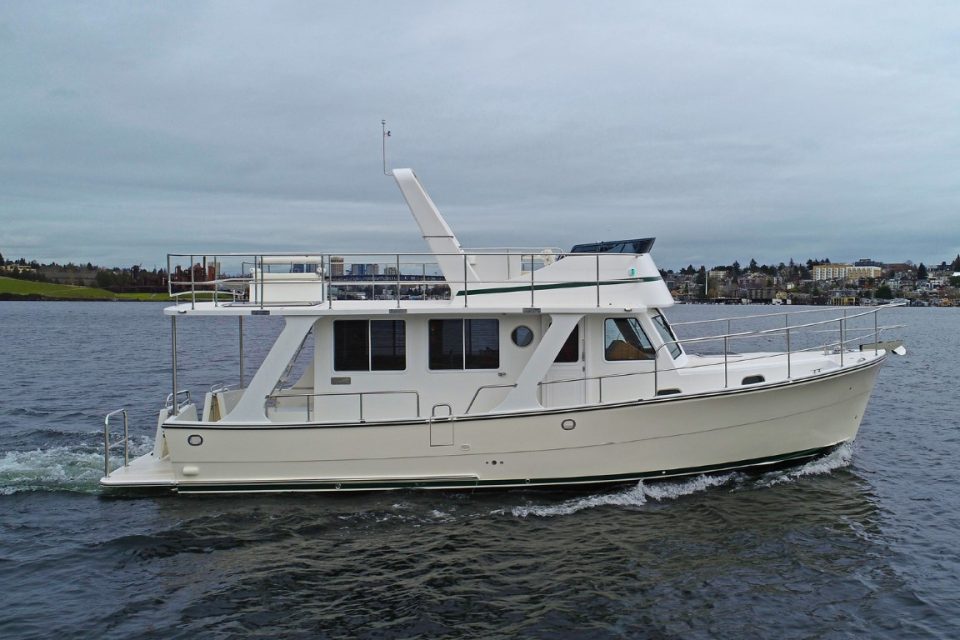

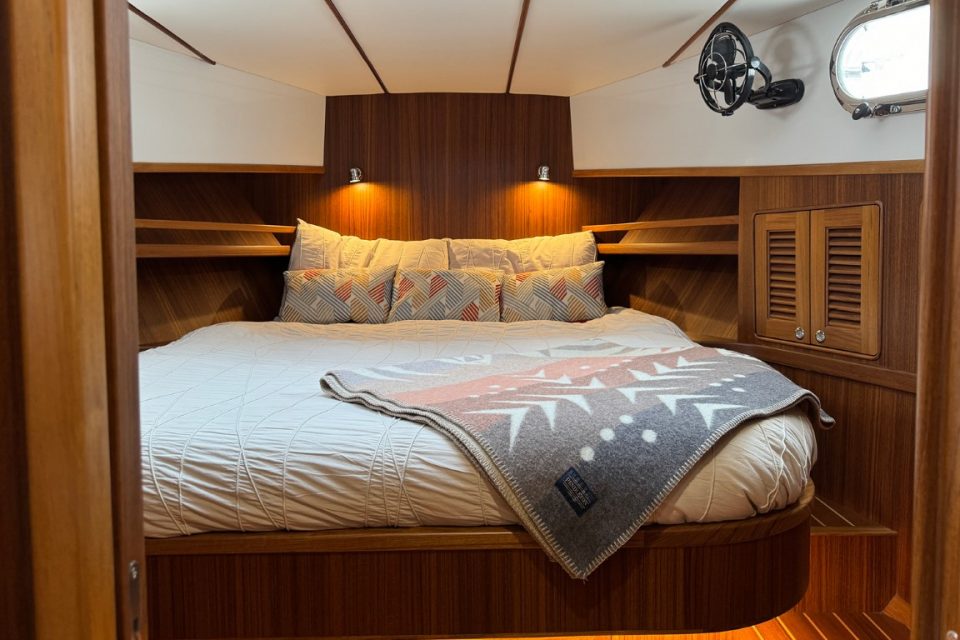

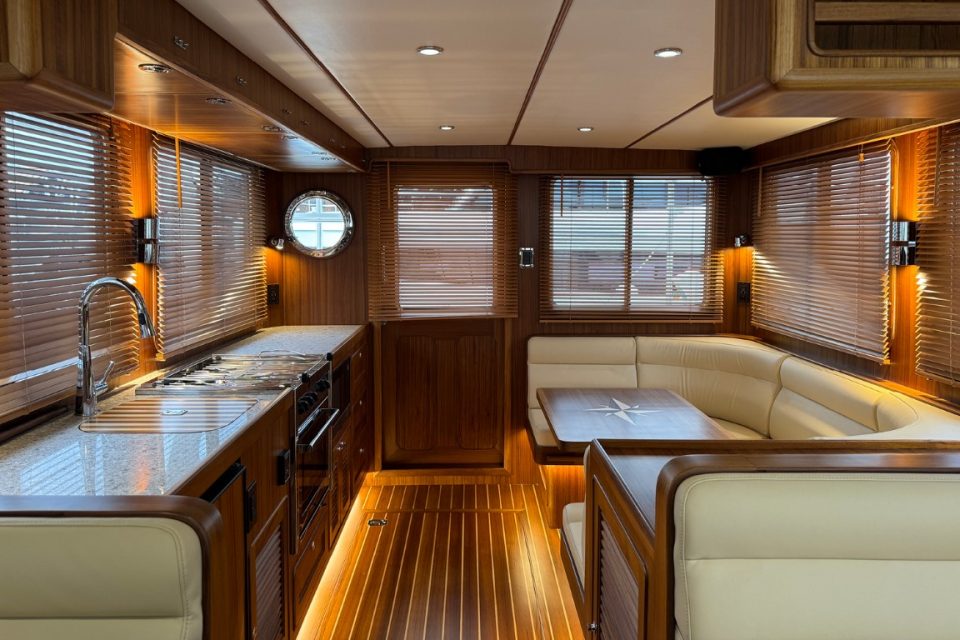

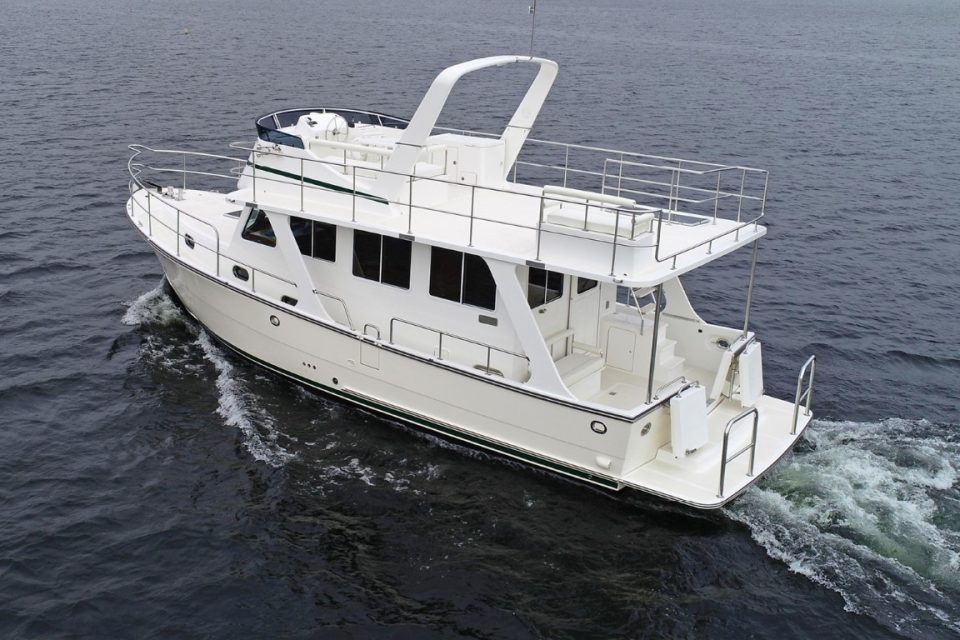

The Helmsman Trawlers 38 Sedan in its two stateroom version is a contemporary update on the traditional “europa” sedan trawler design. The owners’ stateroom is luxurious and comfortable. The guest stateroom is surprisingly roomy with its clever layout, and doubles as an office. The open, well-lit and well-ventilated salon is modern yet richly nautical, and is a comfortable living area — whether in port or underway. This sedan trawler achieves a roomy interior because of its wide beam, while offering safe exterior walk-arounds on both sides of the boat. The salon is lengthened from the earlier Helmsman Trawlers 37 Sedan by more than two feet — increasing the size of the galley and the dining settee. The flybridge has comfortable seating for six and space to mount a dinghy.
Minimal exterior maintenance and reliable, economical propulsion systems allow owners to spend more time cruising.
All Helmsman Trawlers are designed for long-range, comfortable passage-making. They feature sturdy construction, reliable mechanical and electrical systems, quality components and materials, and stable, efficient hull designs. Beautiful nautical interiors are expertly crafted. Helmsman Trawlers are built to exceptional standards and our quality is superb – examine and compare!
The Helmsman 38 Sedan Two Stateroom model is offered at $620,000, well-equipped with the most common and desirable features.
Base Price includes shipping, delivery, commissioning and training – Seattle or Charleston. Taxes and duties not included. U.S. residents may consider foreign flagging which will remove U.S. import duties. Inquire for more information.
LOA 40′ 10″ | LOD 37′ 10″ | BEAM 13′ 11″ | DRAFT 4′ 0″
FUEL 400 GAL | WATER 145 GAL | WASTE 45 GAL
30,000 LBS DRY WT
Design and Construction
- Semi-displacement hull design with soft chines, deep forefoot, broad sections aft for form stability, and full keel
- Strong stainless steel skeg and large rudder
- Flybridge; ladder to flybridge with stainless steel deck hatch
- Full walk-around covered side decks

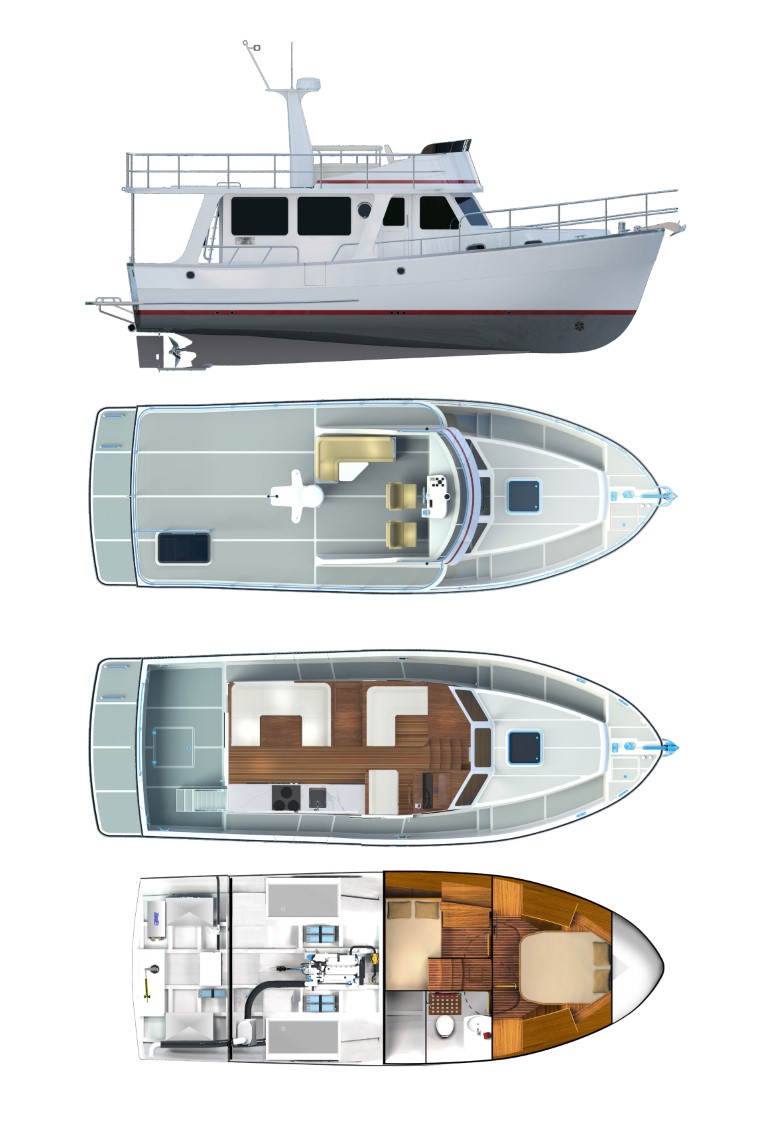

- Two staterooms

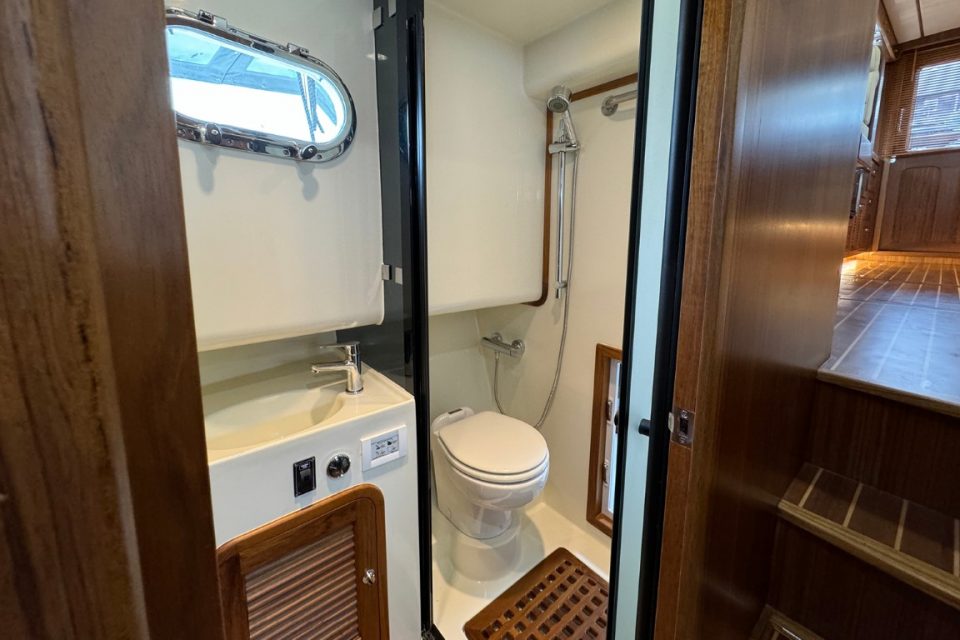

- Head with shower compartment

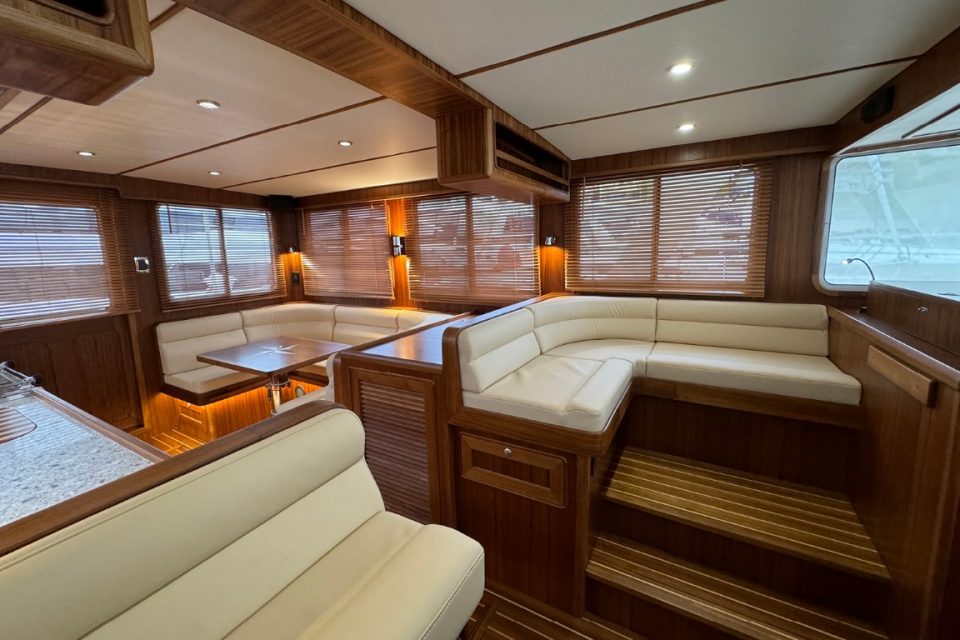

- Convertible U-shaped settee in salon; raised L-shaped companion seating area forward with pull-out table
- Exceptional light and ventilation – opening windows (6), opening portlights (7), opening hatch (1)
- Structural stiffness with a solid FRP laminate hull with vinylester resins in external layers – hull fitted with an internal FRP grid
- Decks built with substantial laminations and cored with PVC foam
- FRP fuel tanks (2), stainless steel water tanks (2), and FRP holding tank (1)
- Extensive use of sound deadening techniques and materials
- Multi-layer composite interior floor construction, with rubber cork inner layer for sound and vibration reduction, topped with teak and holly strip planks
- Expertly-crafted cabinetry – teak solids and veneers throughout for strength, water resistance and long-lasting beauty
- Hand-brushed and hand-rubbed two-part polyurethane varnish in multiple layers, with final satin finish
- Ceiling panels easily removable for wiring access
- Wireways and cable runs positioned for easy equipment installations
- Quality stainless steel deck hardware
- Aluminum sliding helm station door and aft cabin door
- Oversized double-rung stainless steel safety rails with finely polished welds
Equipment and Features Included in Base Price
EXTERIOR
- Matterhorn White gel coat hull, superstructure and deck surfaces
- Sleipner bow and stern thrusters
- Transom door
- FRP integrally molded swim platform
- Full-length cockpit cover
- Lewmar V4 windlass with 200′ of 5/16″ high tensile chain
- 45 lb stainless steel Bruce-type anchor
- Anchor chain locker access hatch on foredeck
- Raw water anchor washdown at bow
- Hawse cleats on transom (2), aft (2) and amidships (2)
- Flybridge control center with stainless steel wheel
- Lazarette storage compartment
- Flybridge L-shaped settee
- LED navigation lights
- Dual-trumpet electric horn
- Pedestal helm seat on flybridge (1)
- Radar mast with hinge or radar arch with hinges
- Three pantographic windshield wipers
- Stainless steel handrail on transom
- Seahawk epoxy barrier coating and bottom paint
- Seahawk Barnacle Blocker on underwater metal
ENGINEROOM
- Cummins QSB 6.7 liter 380 hp electronically controlled common-rail diesel engine
- Dual Racor or Griffin fuel filters
- PYI Dripless-type prop shaft seal with inspection window
- Tides Marine rudder shaft seals
- Sea Star hydraulic steering system with autopilot hydraulic steering taps installed
- Electric bilge pumps (3) with automatic switches and high water bilge alarm
- Shower sump pump
- Hinged interior floor hatches with gas stays
- Removable deck plates throughout engine room
ELECTRICAL
- Victron 200 A-hr AGM house batteries (2); AGM bow thruster battery (1)
- AGM start battery (1)
- Victron inverter/charger
- Blue Sea Systems remote battery switches and automatic charge relays
- SmartPlug 30 amp shorepower inlets (2) on transom
- Victron isolation transformers (2)
- Blue Sea Systems electrical (AC/DC) distribution panel
- Bonding system with anodes
INTERIOR
- LED interior overhead lighting with dimmers
- LED lighting in engineroom
- LED reading lights in salon, galley, and staterooms
- LED cockpit lighting
- Pilothouse control center with teak wheel
- Louvered storage cabinet doors for ventilation
- Stainless steel overhead hatch and portlights with screens
- Opening center windshield window
- Wood blinds in salon and pilothouse
- Bench-style helm seat with flip-up bolster

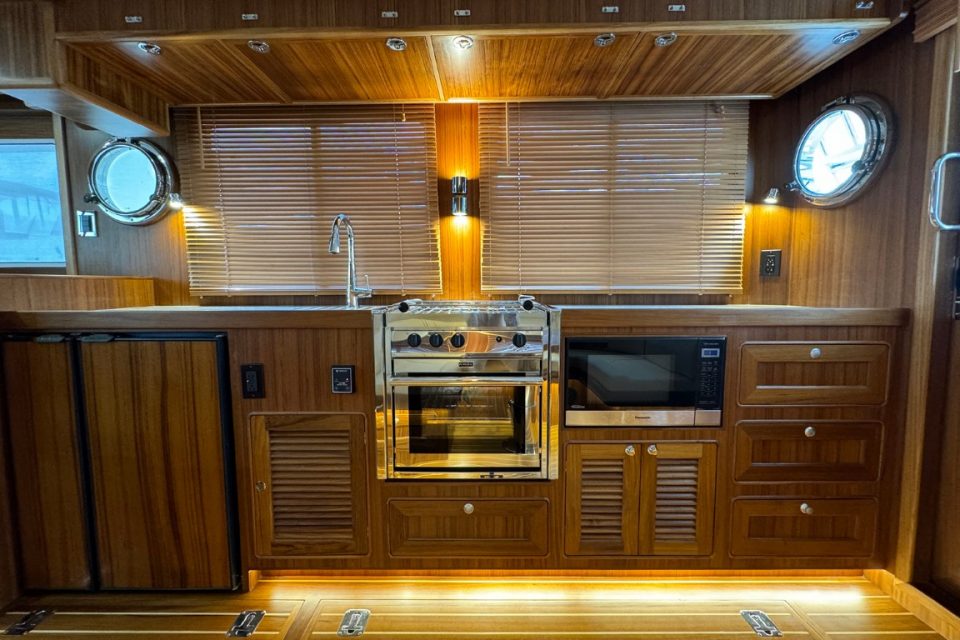

- Caesarstone galley countertops
- Overhead drop-down storage cabinets in galley
DOMESTIC SYSTEMS
- Force 10 galley range – propane or electric — and microwave; or Miele propane cooktop with convection oven / microwave; or Kenyon induction cooktop with convection oven / microwave
- Nova Kool 7.5 cu. ft. refrigerator/freezer
- Webasto Air Top 55 cabin heating system (or credit toward optional reverse-cycle heating/cooling system)
- Raritan Elegance macerating-type electric head (1)
- Macerator overboard pump with through-hull fitting
- Marco variable speed potable water pump
- 17 gallon Torrid electric water heater
- Cockpit shower (hot and cold)
MISCELLANEOUS
- Lines, fenders, shore power cable, and USCG safety equipment included –
- Delivery and commissioning in Seattle WA or Charleston, SC. Subsequent transportation may be additional
OPTIONS AVAILABLE
A wide range of options and customizations including: engine brand and horsepower selections, generators, galley appliances, exterior gel coat colors, upholstery and granite choices, custom cabinetry, bridge layouts, and more.
