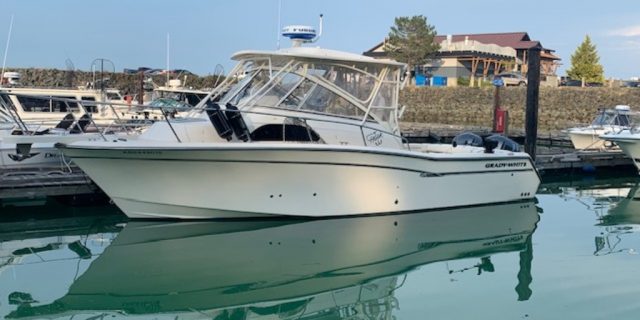

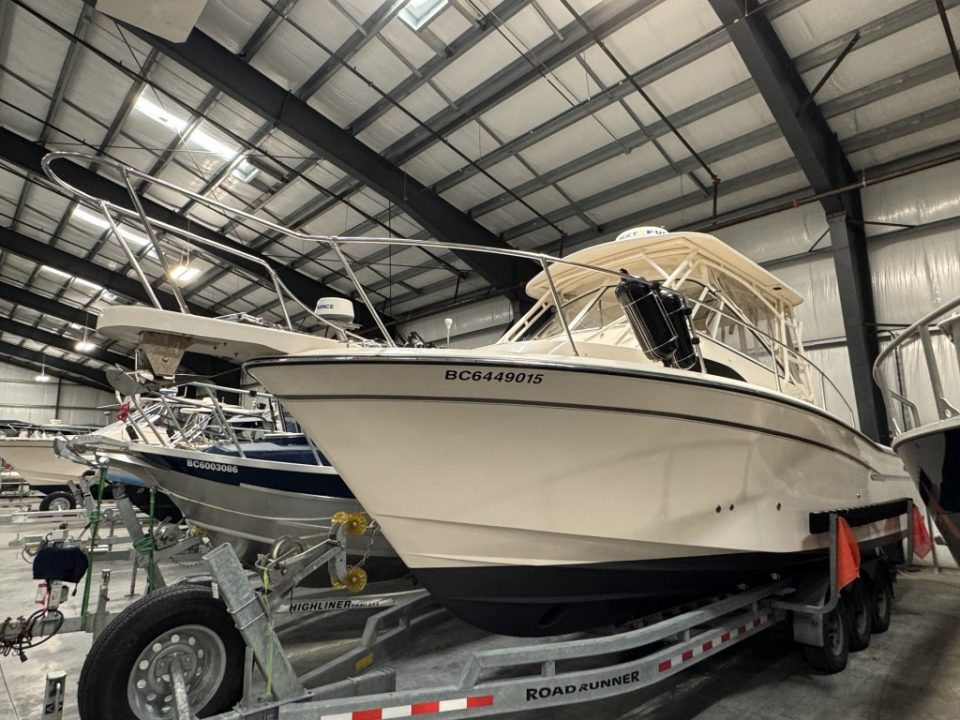

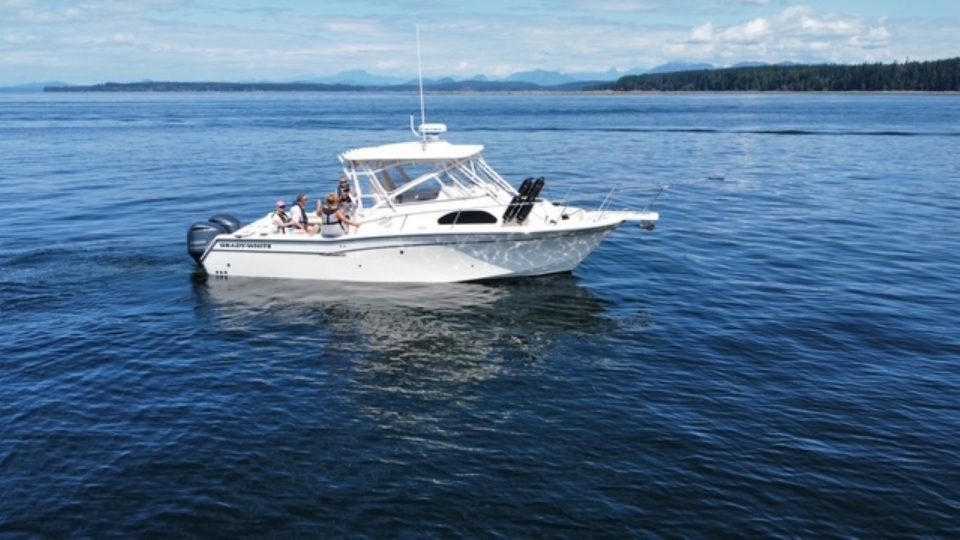

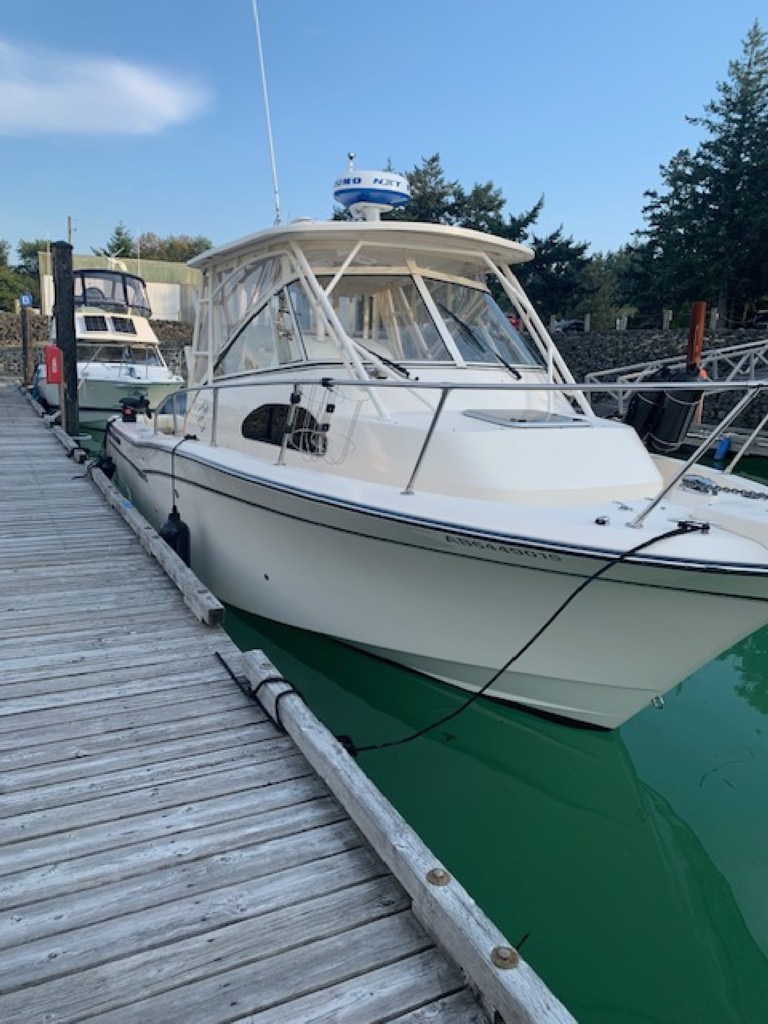

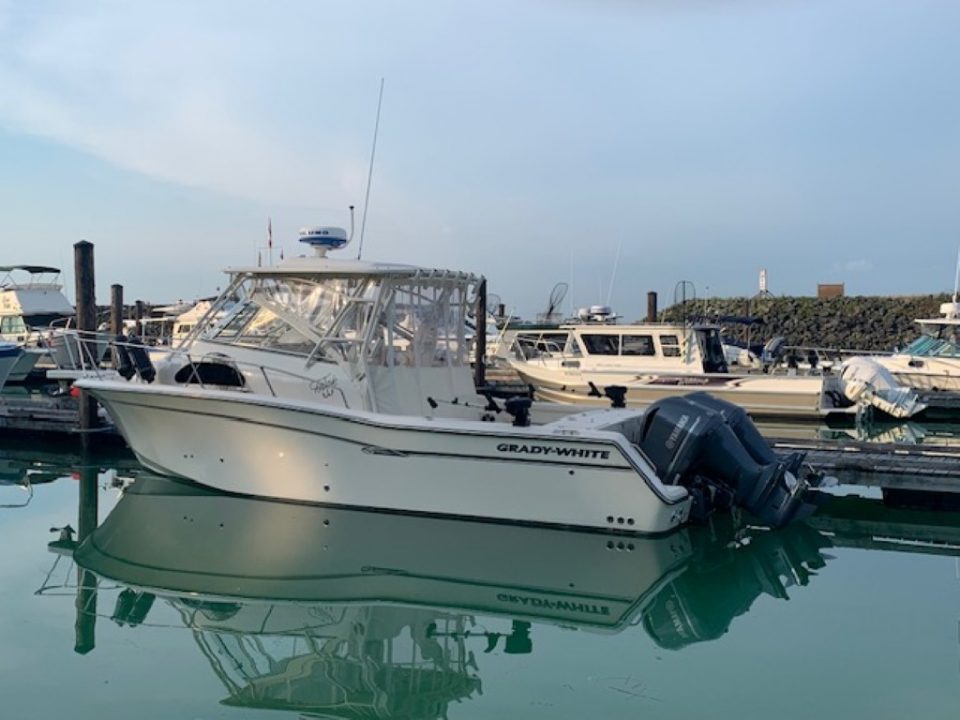

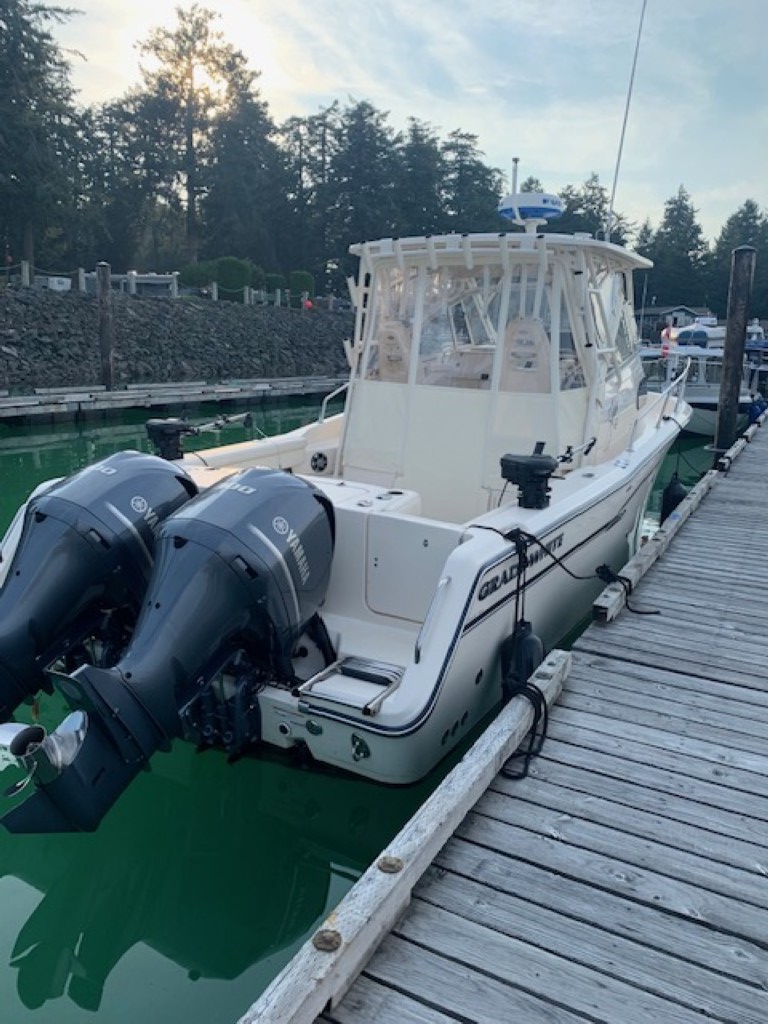

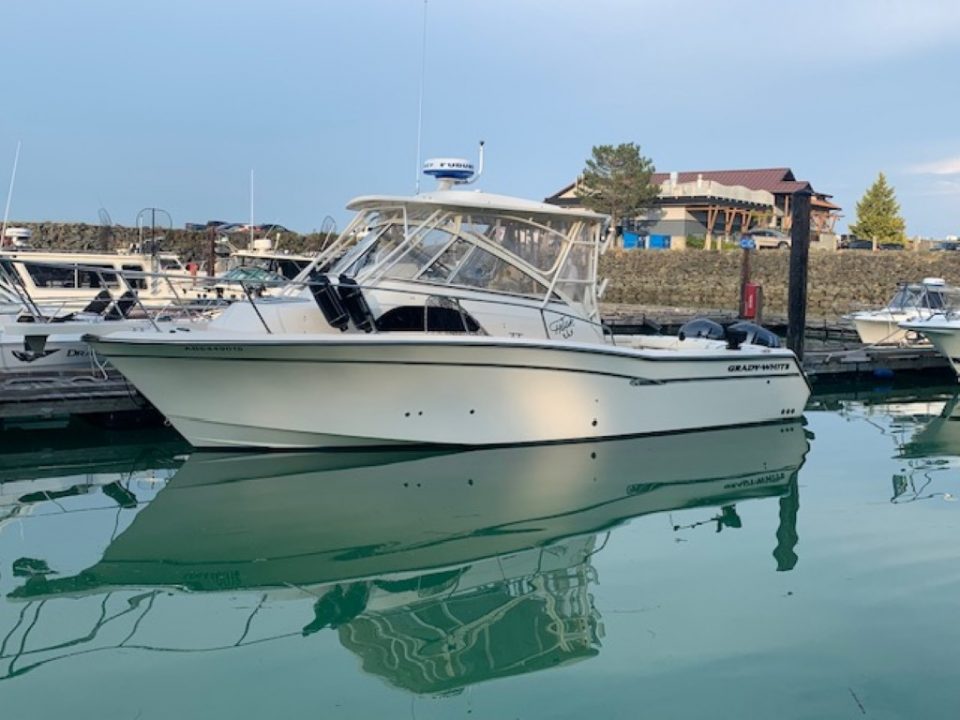

2019 Grady-White Marlin 300

Key Dimensions & Capacities

• Length Overall (LOA, without engines): 30 ft 6 in (9.30 m)
• Beam: 10 ft 7 in (3.23 m)
• Draft (hull): 23 in (0.58 m)
• Bridge Clearance: 9 ft 9 in (2.97 m)
• Transom Deadrise: 19.5° (SeaV²® progression)
• Fuel Capacity: 282 US gal (1,067 L) — dual tanks
• Freshwater Capacity: 32 US gal (121 L)
• Waste Holding Tank: 10 US gal (38 L)
• Dry Weight (no engines): 8,221 lb (3,729 kg)

Construction & Hull

• 100% hand-laid SeaV²® fiberglass hull and deck
• Composite stringer system and transom (water impervious)
• Self-bailing cockpit with multiple drains
• Nonskid surfaces throughout
• 316-grade stainless steel hardware and bow rail
• Hardtop (standard) — painted aluminum frame with radio box, spreader lights, rod holders, and outrigger plates

Propulsion & Steering

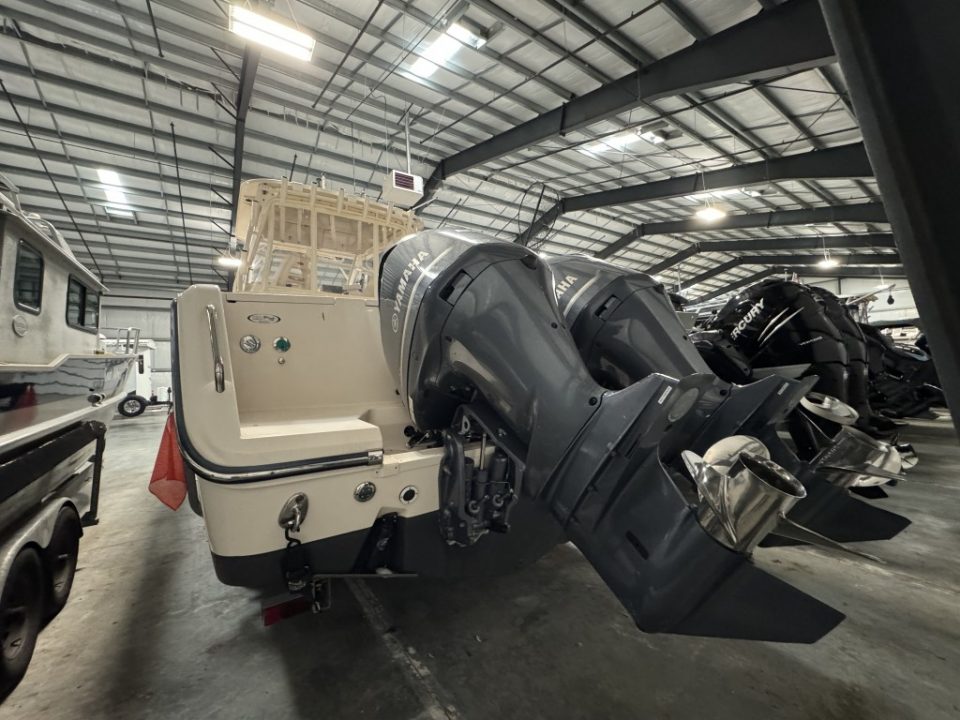

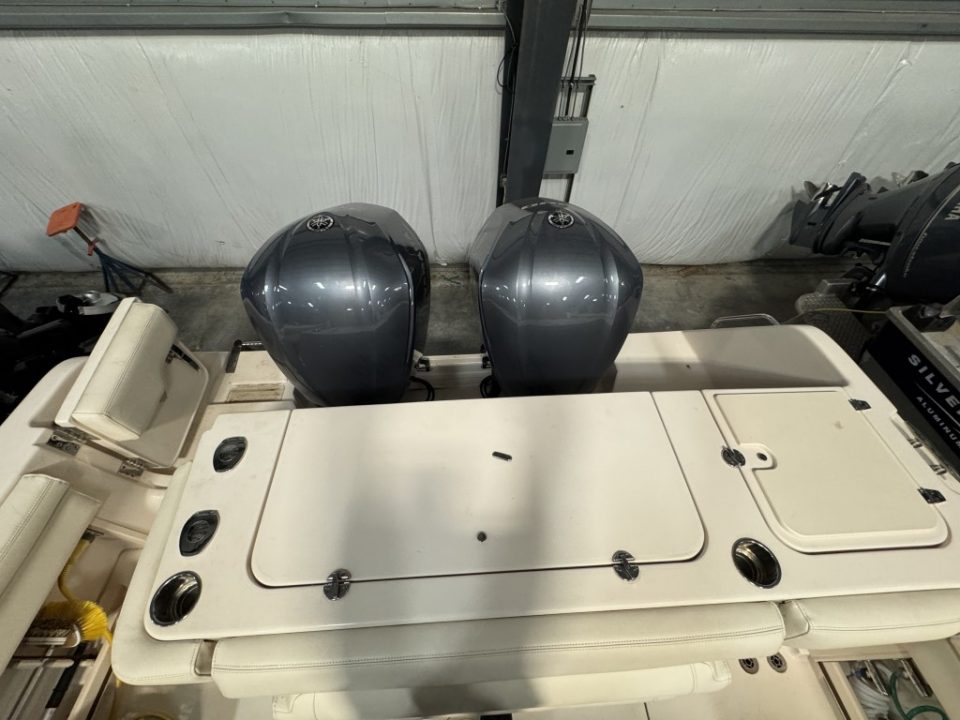

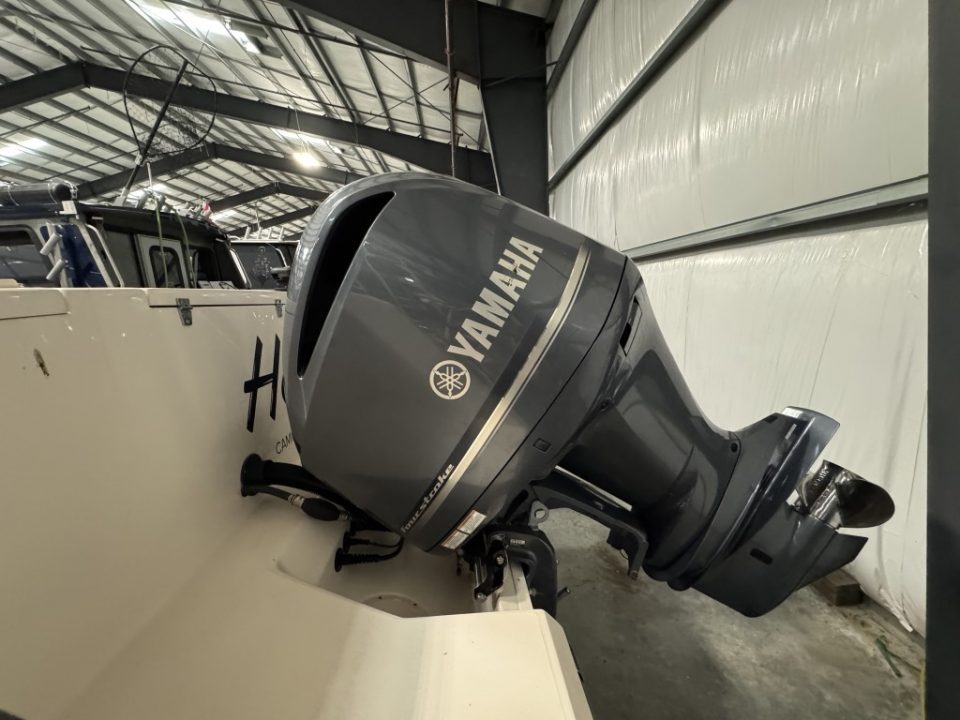

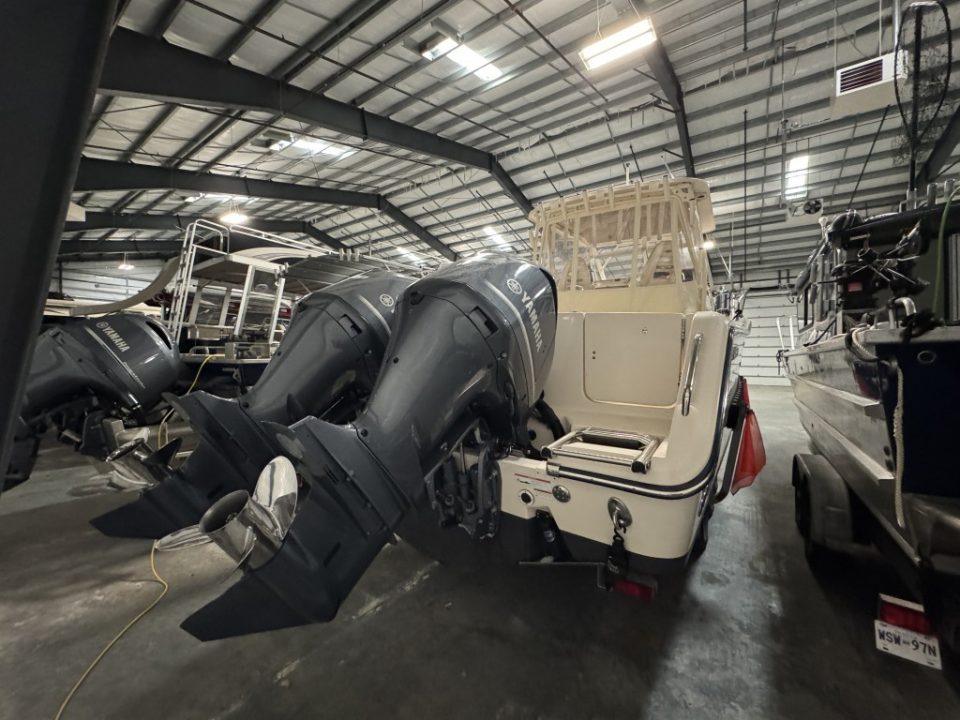

• Engines: Twin Yamaha 300 hp four-stroke outboards

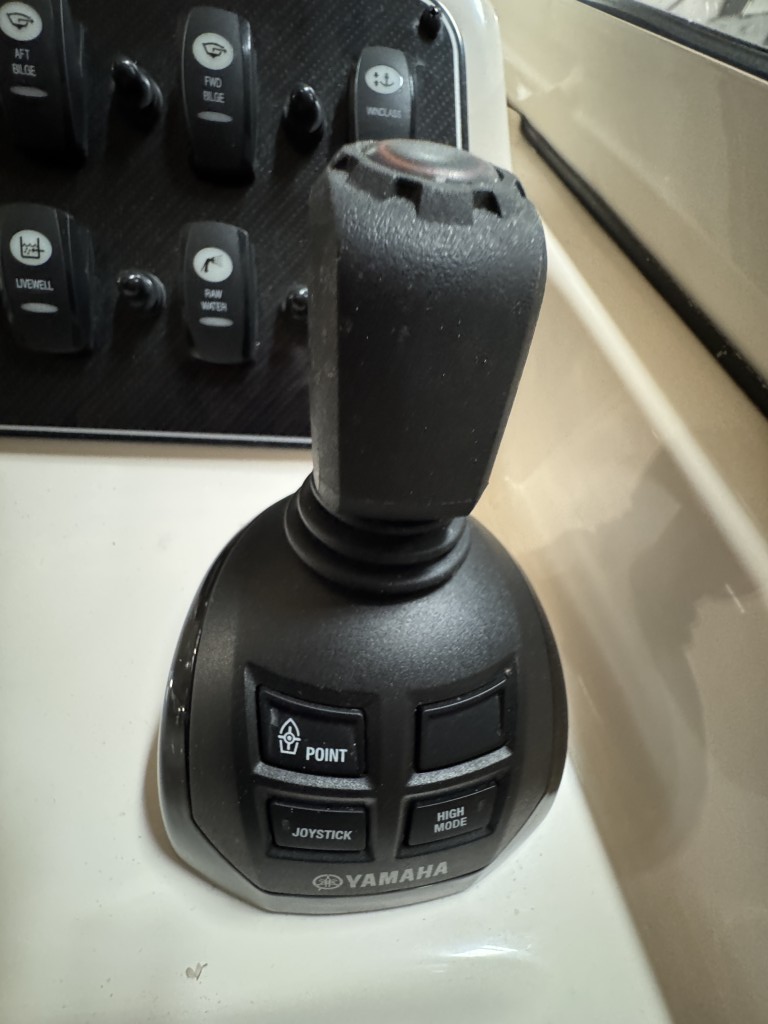

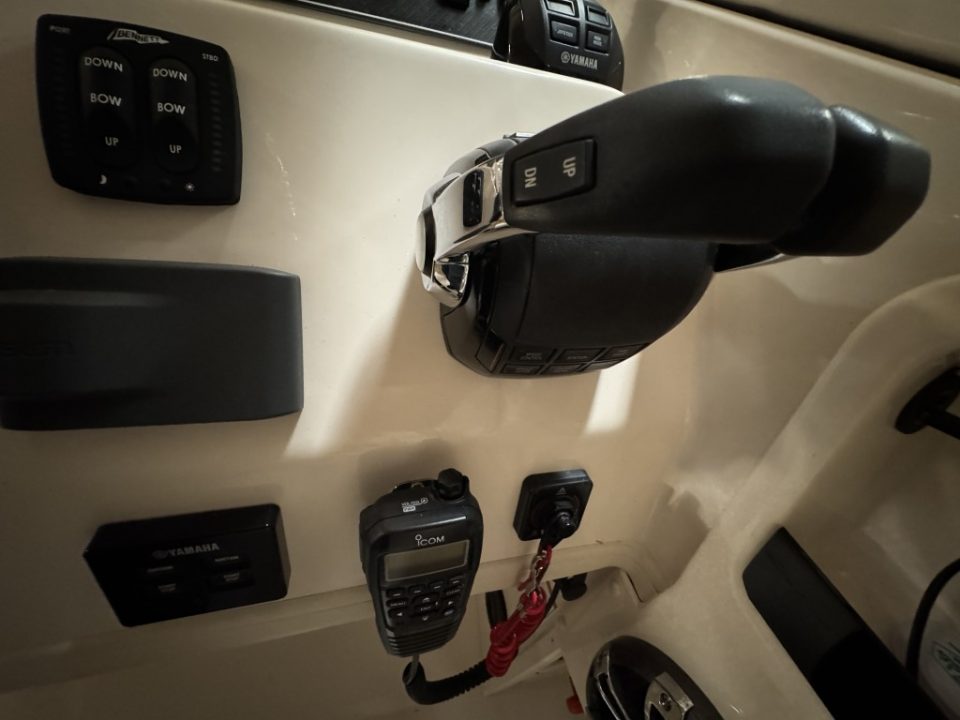

• Steering: Yamaha Helm Master EX with Full Maneuverability (joystick system for precise docking and low-speed control) + integrated digital electric steering
• Engine flush system (one per engine)
• Battery system with select switches and charger

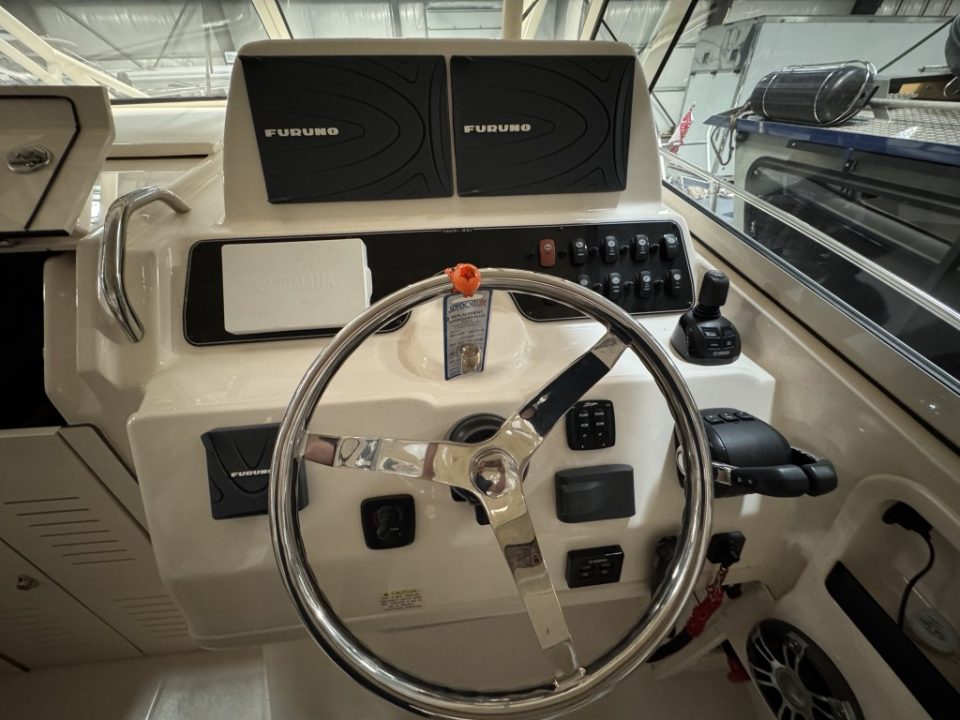

Electronics & Navigation — Premium Furuno Package

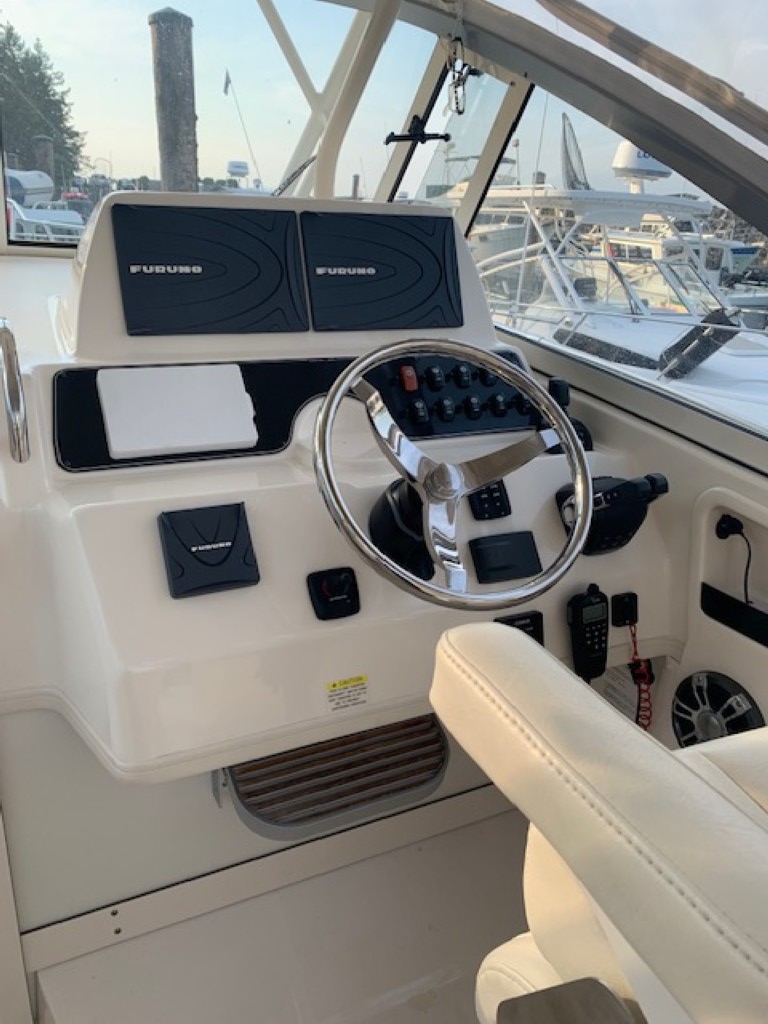

The helm features a flush-mount electronics area upgraded with a Premium Furuno electronics package.

Premium Furuno setup for this model include:

• One or more Furuno TZtouch  multifunction displays (MFDs) — chartplotter, radar overlay, and fishfinder functions

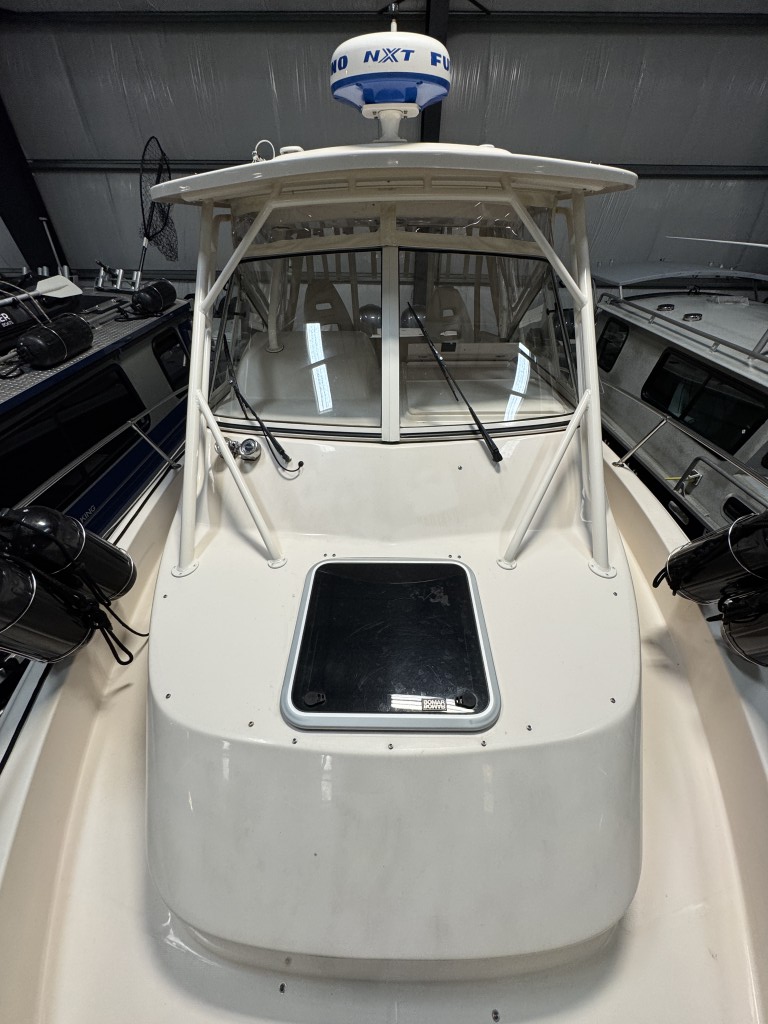

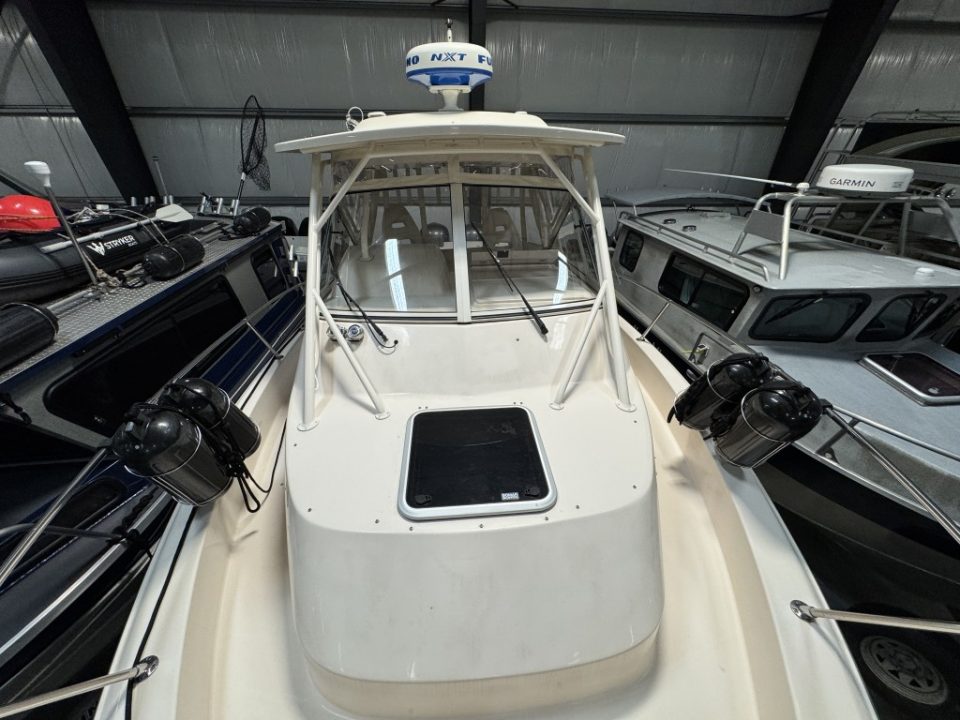

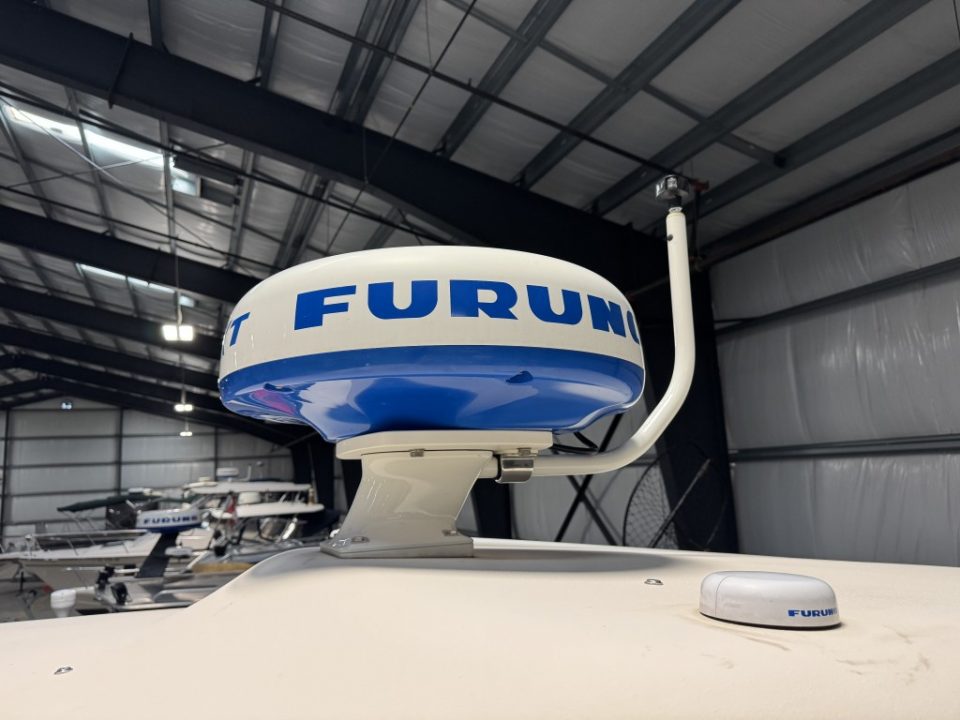

• Furuno radar (DRS-NXT series dome or open-array antenna for excellent target detection)
• Furuno CHIRP fishfinder/sounder with high-performance transducer with thru-hull for superior offshore performance
• Furuno NavPilot autopilot system (integrated with MFDs and Helm Master)
• Furuno VHF marine radio with DSC and AIS capability
• Full integration of Yamaha engine data, fuel flow, and Helm Master controls on the Furuno displays
• Additional sensors, compass, with SiriusXM weather/fish mapping

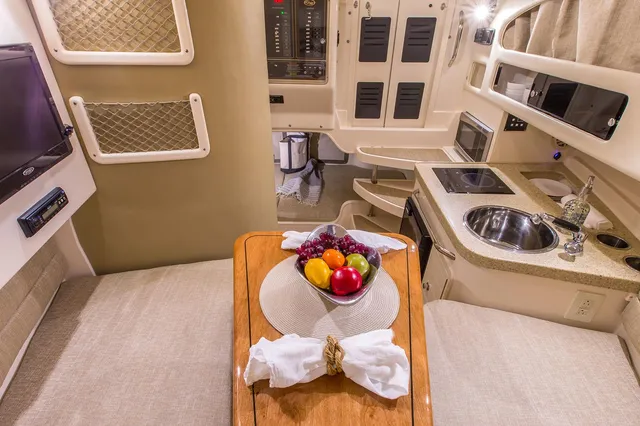

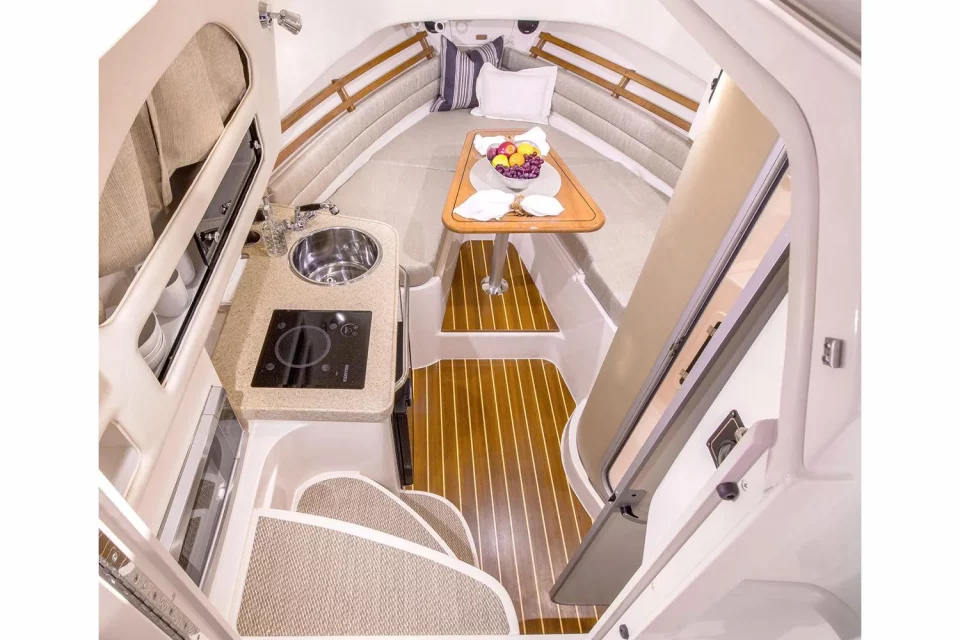

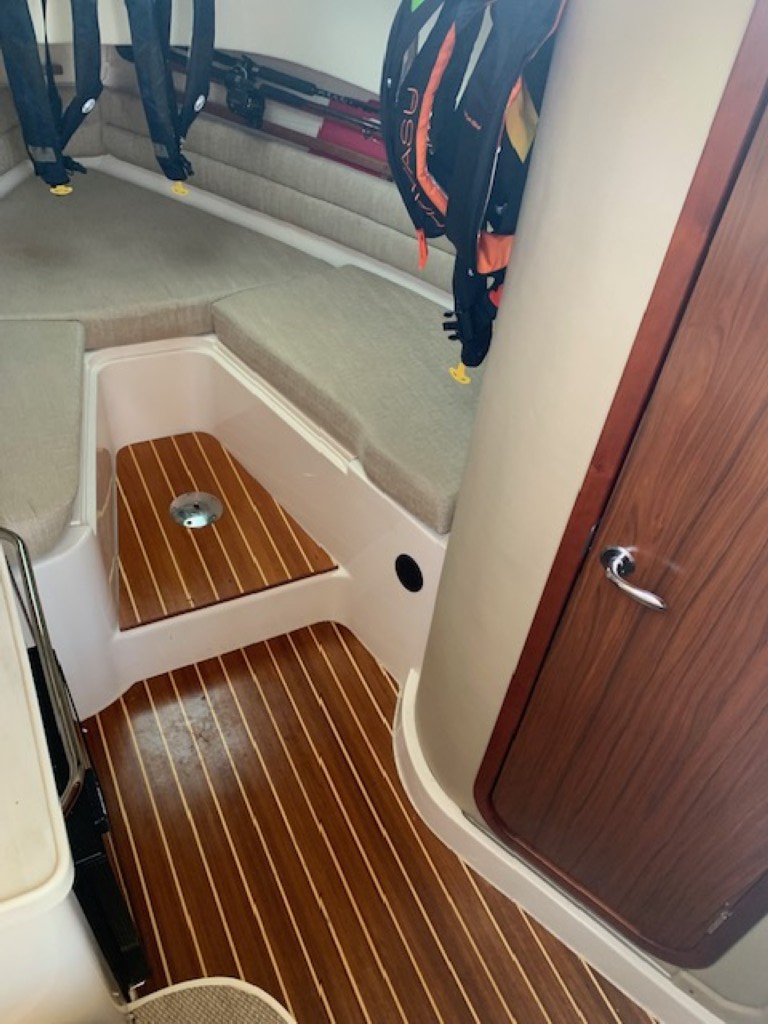

Accommodations & Cabin

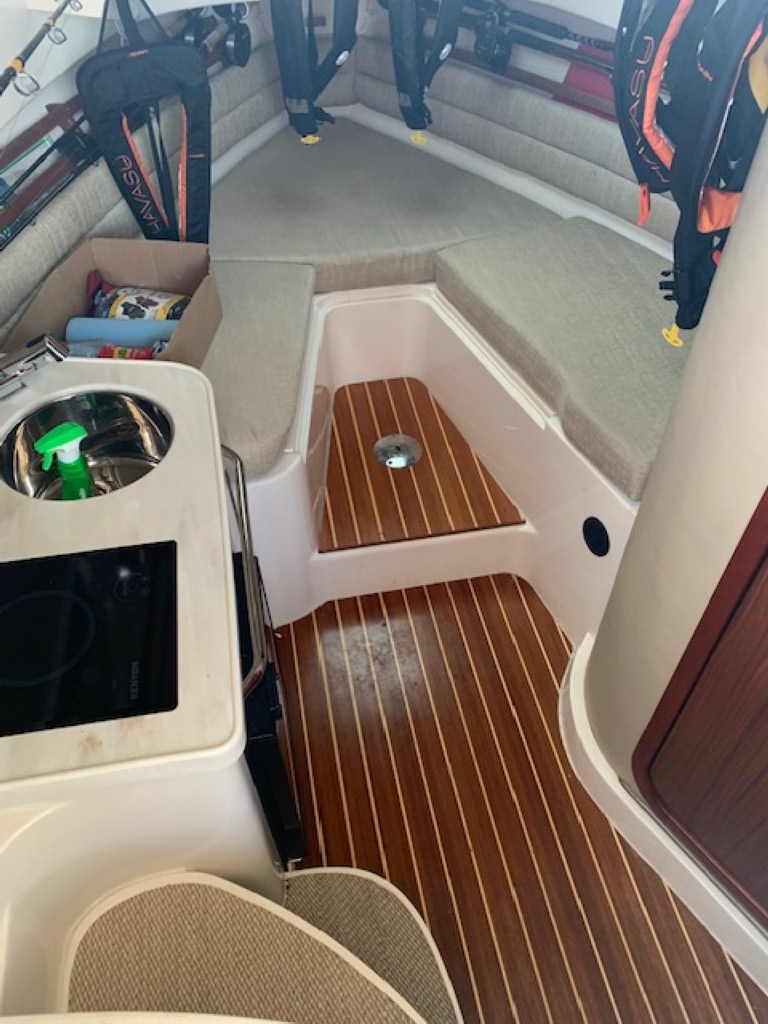

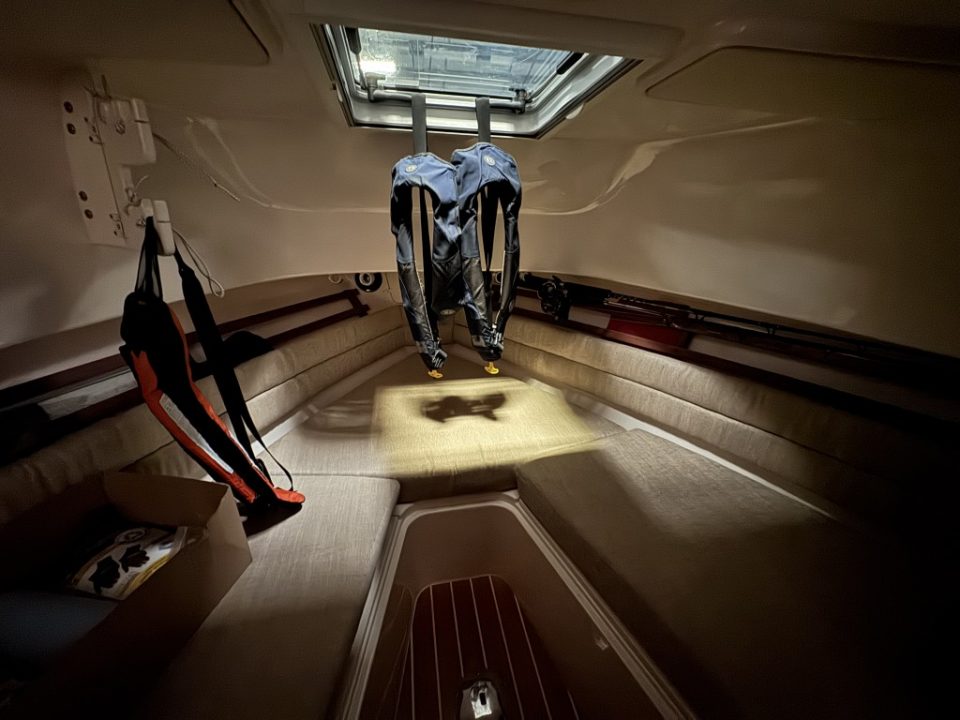

• Forward V-berth with filler cushions, table, and rod storage

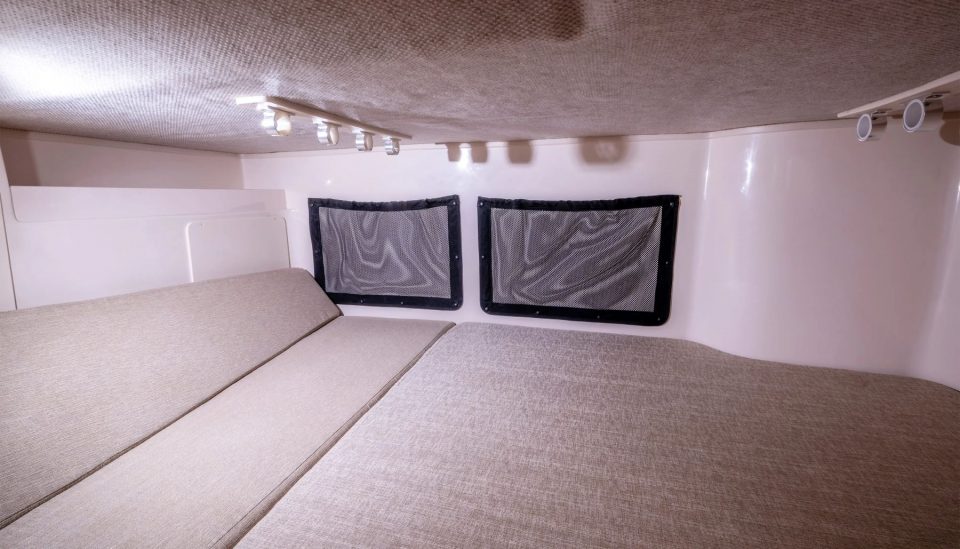

• Aft double berth

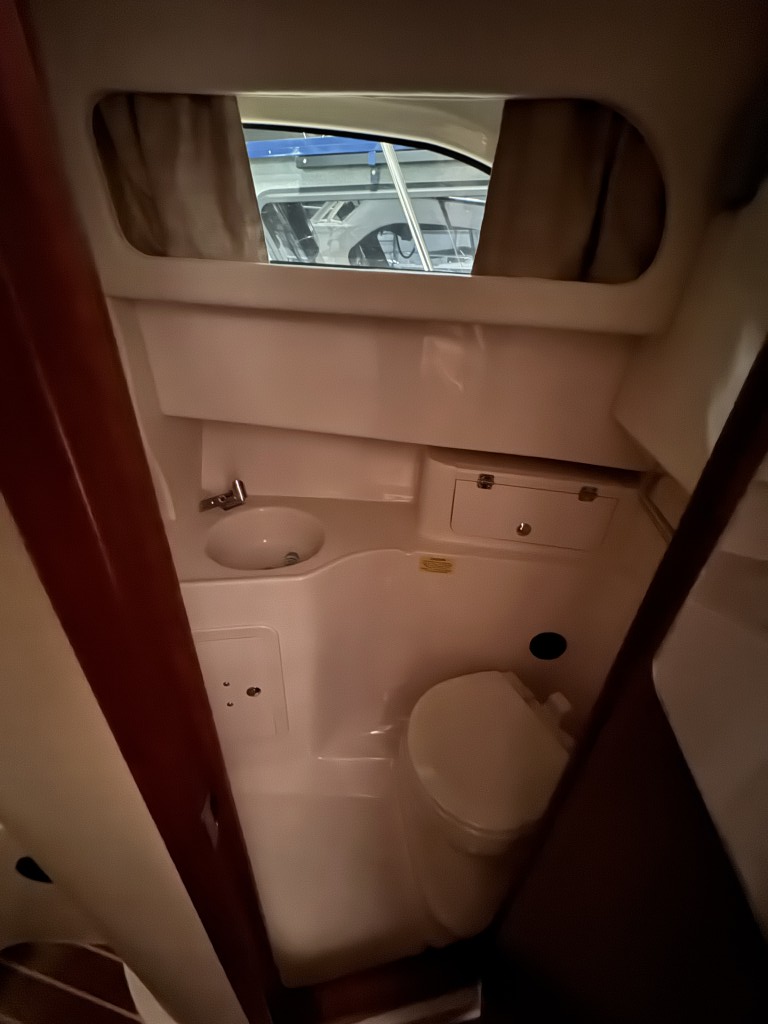

• Enclosed head with VacuFlush® toilet, sink, and shower

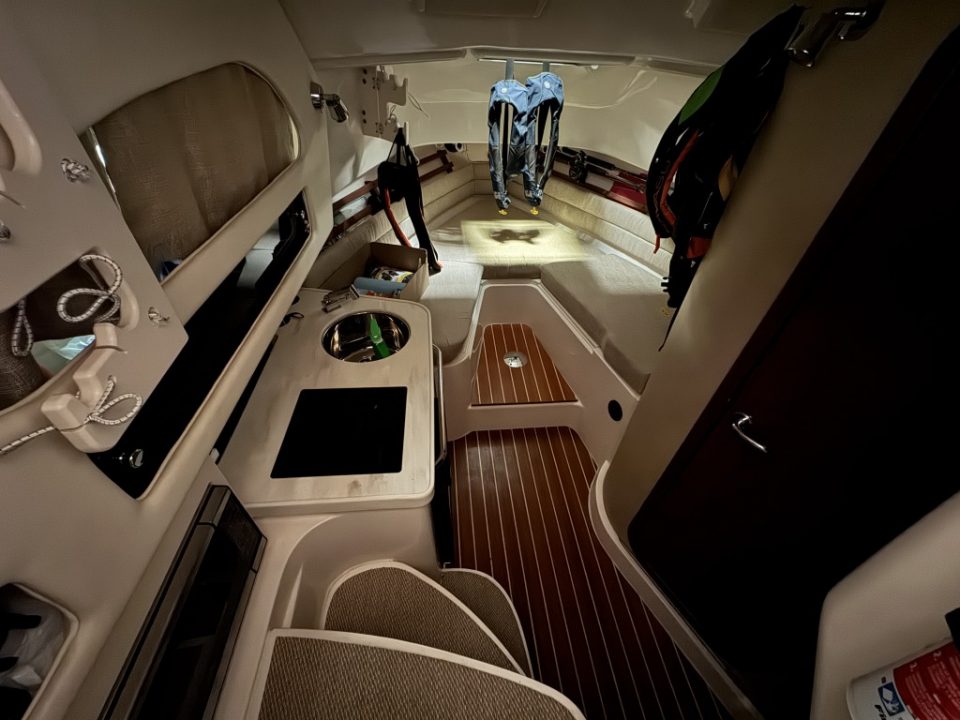

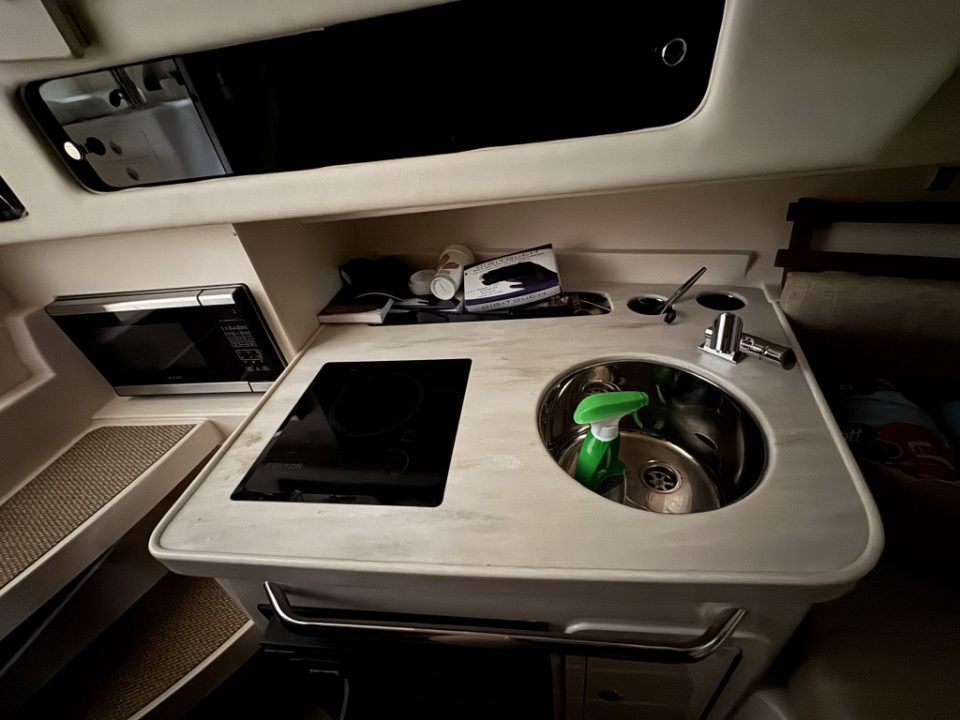

• Galley (port side) with Corian® countertop, stainless sink, electric glass-top stove, microwave, and refrigerator
• Teak & holly sole, cherry wood accents, ample storage, reading lights, and dome lighting
• Forward hatch with screen and shade
• Accessory outlet – 5V duplex USB port
• Berth – aft double berth
• Berth – forward vee berth
• Carbon monoxide monitor

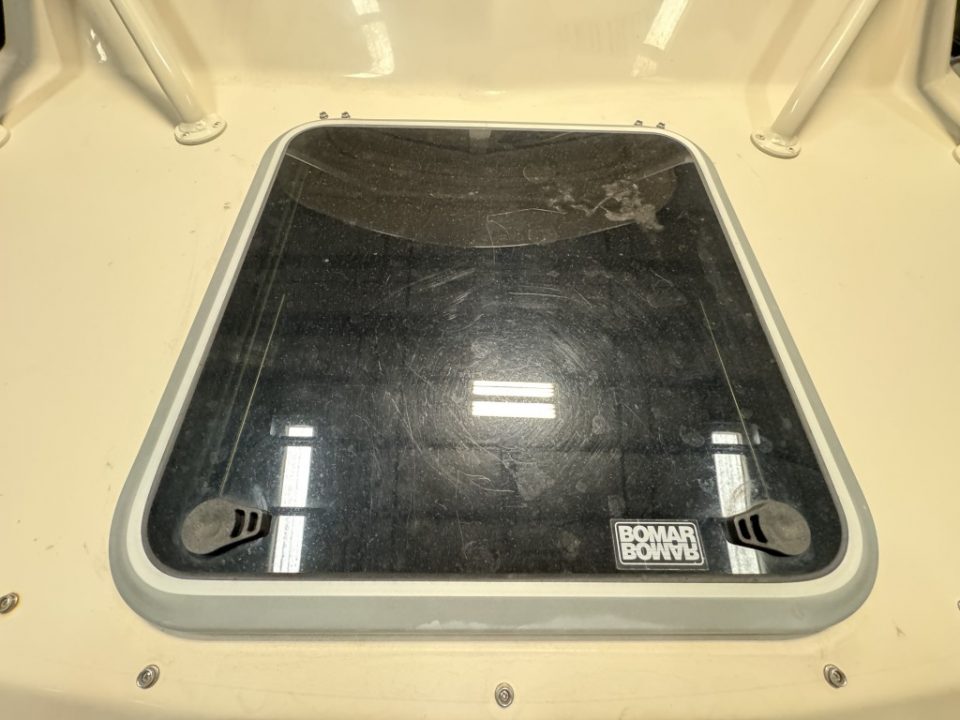

• Forward hatch – low profile acrylic hatch w/screen & shade
• Galley – port side galley w/sink, light & Corian(R) cutting board
• Head – enclosed head area w/sink, shower, lamp & VacuFlush® marine head w/10-gallon (38 l) holding tank & pump out
• Lighting – dome (2)
• Lighting – reading (3)
• Lockable door w/screen & companionway hatch
• Microwave oven
• Mirror
• Refrigerator
• Rod storage – aft berth
• Rod storage racks (6)

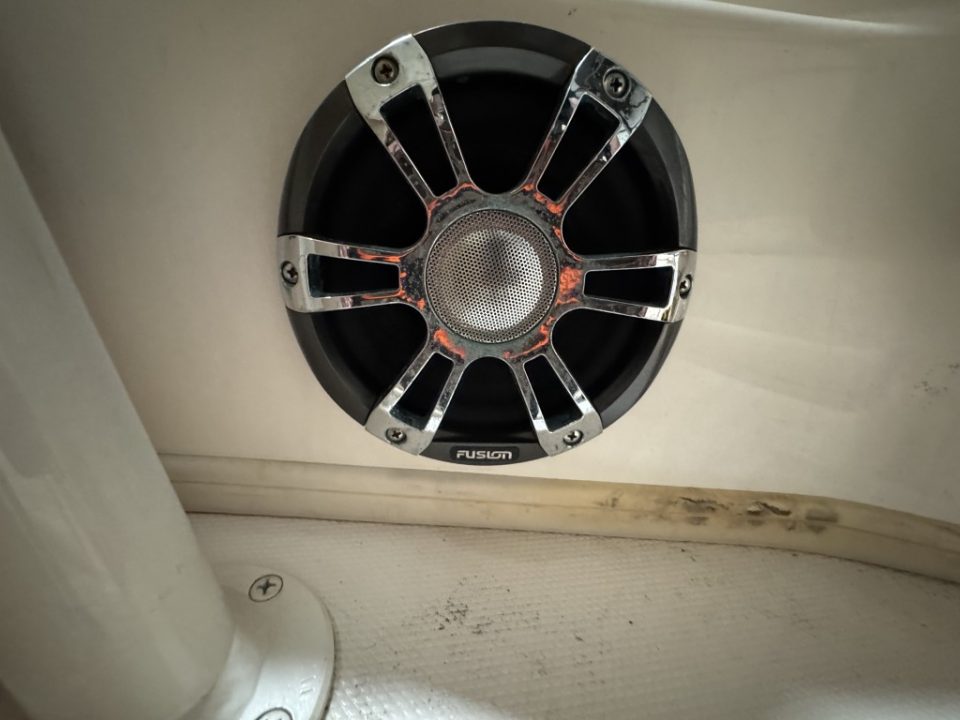

• Stereo system w/AM/FM tuner, MP3 auxiliary audio connections/amplifier, Bluetooth®, remote control & fold down storage; speakers – cabin (2), cockpit (2) & helm (2)
• Storage – galley cabinet & counter
• Storage – under berth compartments
• Storage nets
• Stove – electric glass top
• Table – cherry
• Teak & holly sole
• Water heater – 6-gallon (22.7 l), 120V
• Water tank – 32-gallon (121.1 l) freshwater
• Window – aft berth window w/screen
• Windows – tinted frameless acrylic w/curtains (2)

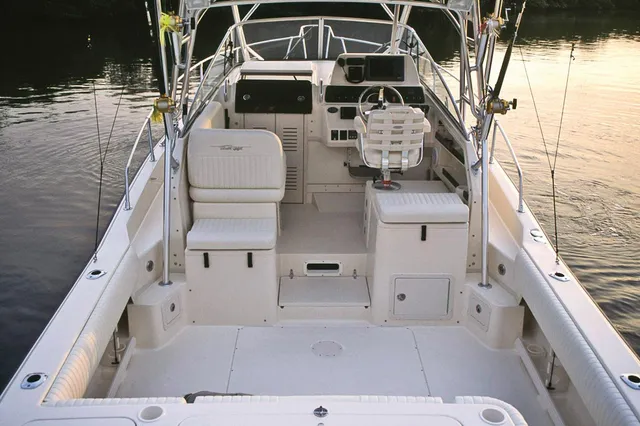

Cockpit & Deck Features

• 100% hand laid SeaV² hull & deck
• Accessory outlet – 12V
• Accessory outlet – 5V duplex USB port
• Anchor windlass w/remote switches at helm & windlass
• Batteries (4)
• Battery charger system
• Battery select switch
• Bow pulpit w/roller
• Cleats
• Cockpit bolsters
• Cockpit freshwater shower (recessed)
• Cockpit lights – blue LED
• Compass
• Deck hardware – 316 grade stainless steel through-bolted

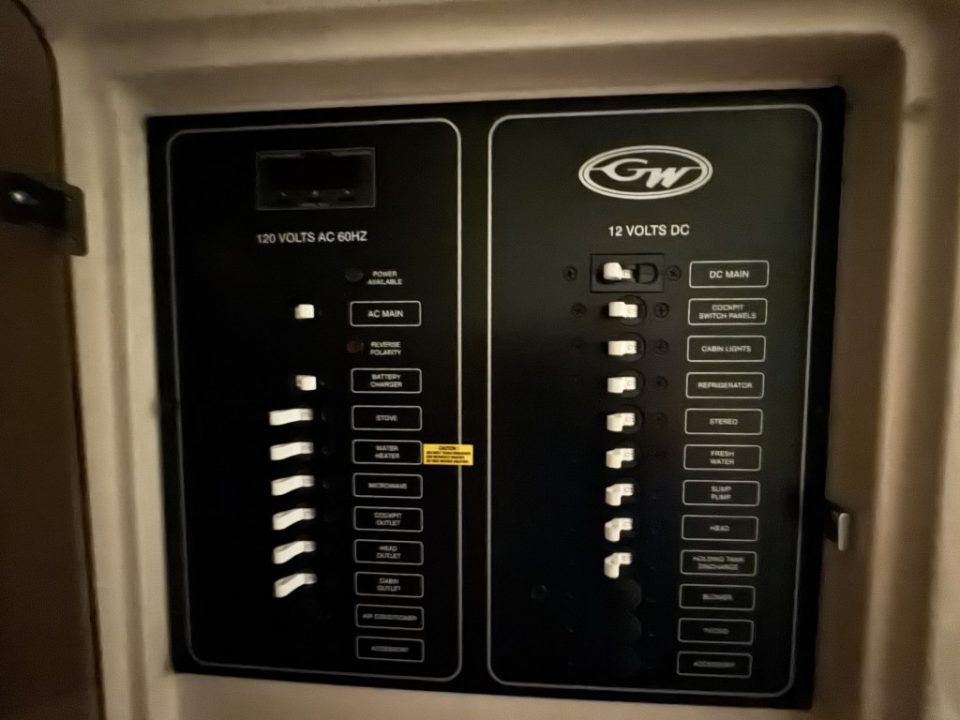

• Dockside power w/galvanic isolator
• Drink holders – stainless steel (9)
• Engine flush system w/hose attachment aft (one per engine)
• Factory engine pre-rigging
• Fighting chair reinforcement

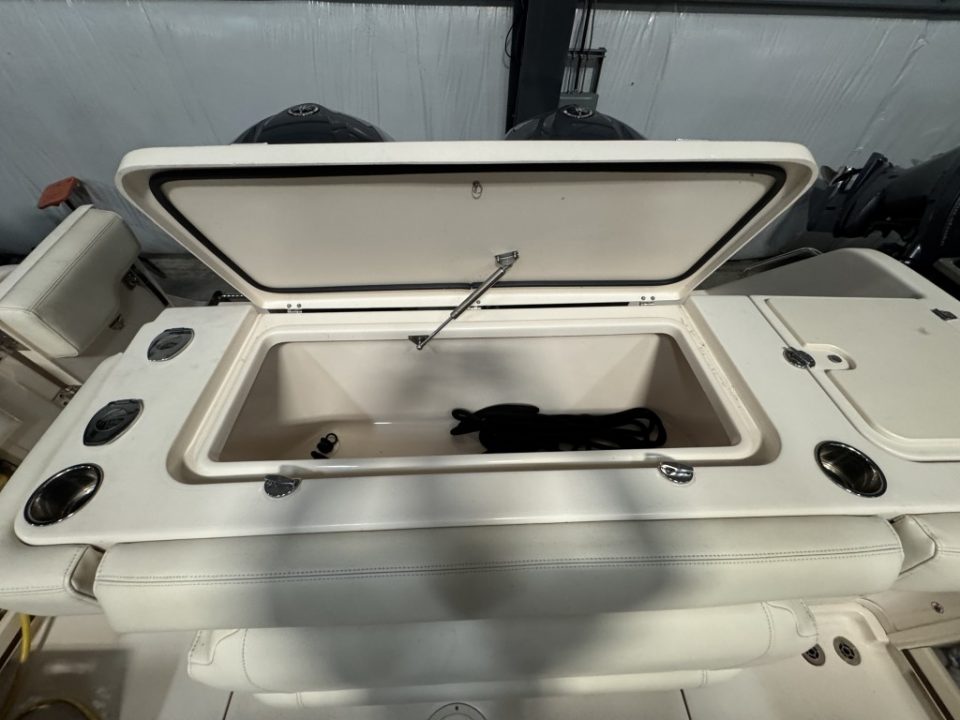

• Fish box – 290-qt. (274.4 l) aft insulated fish box w/light & ob drain
• Flush mount electronics
• Footrests – helm & companion (adjustable)
• Freshwater level indicator
• Fuel capacity – 282 gallons (141-gallon tank, 141-gallon tank) (1067 l)

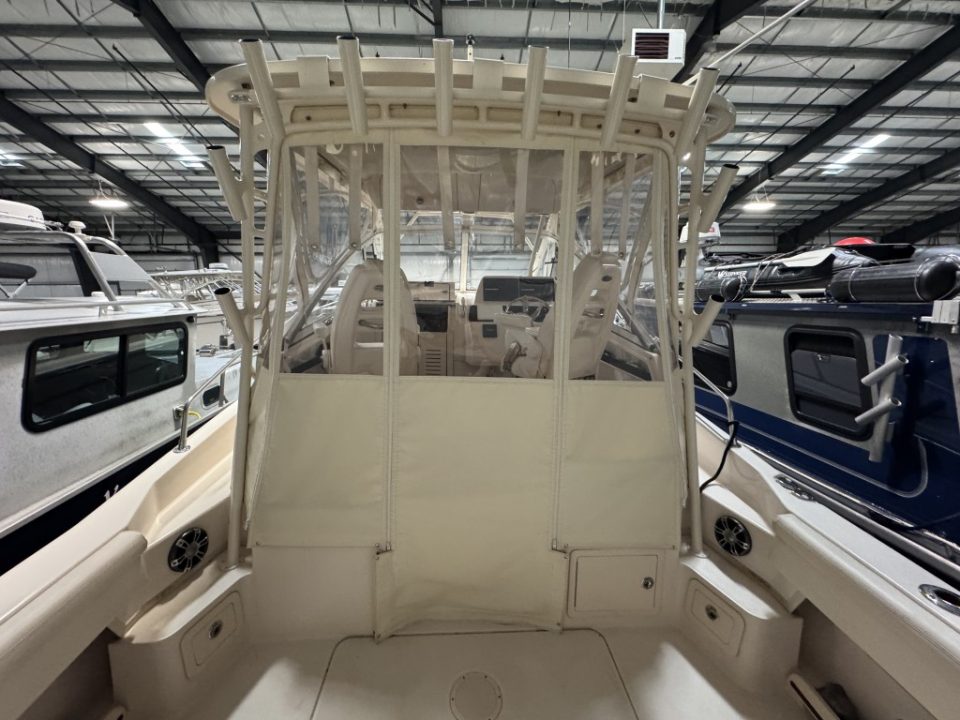

• Hardtop w/painted aluminum frame, radio box, storage nets, spreader lights, side mounted rod holders (4), outrigger plates & drop, front & side curtains (black or ivory)

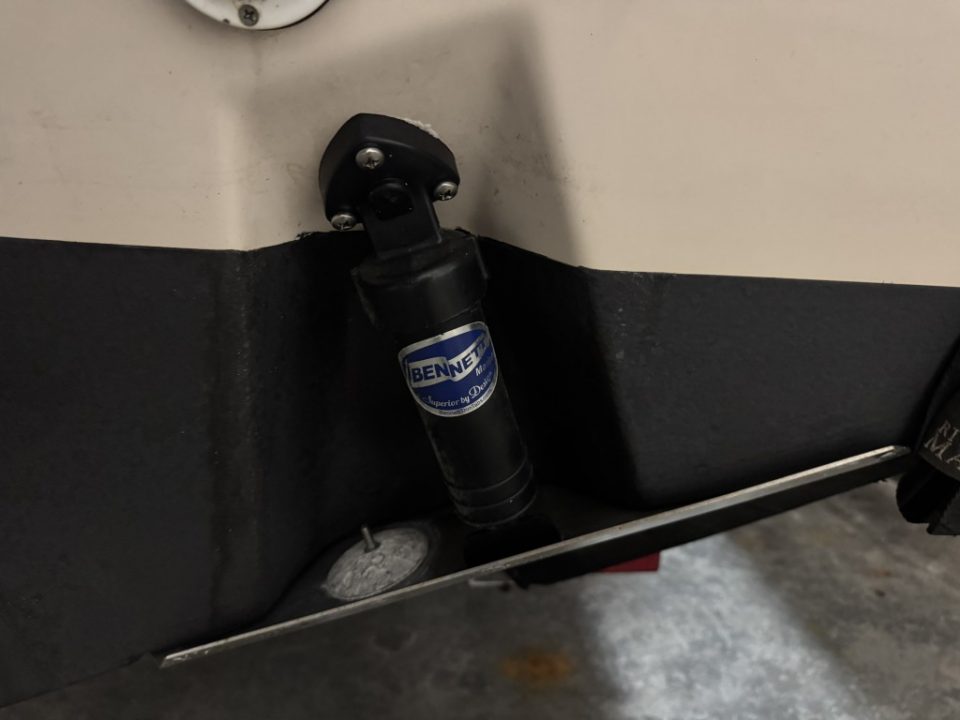

• Hydraulic trim tabs w/indicator & retractor
• Integrated outboard mounting system w/swim platform & ladder
• International lighting
• Livewell – 32-gallon (121.1 l) port insulated raw water livewell w/light, full column distribution inlet & ob drain (1100 GPH pump) (4164 LPH)
• Rigging station behind helm chair w/freshwater sink, insulated bait box w/ob drain & lockable drawers
• Rod holders (4)
• Rod storage racks – horizontal (6)
• Rubrail – high density PVC w/stainless steel insert

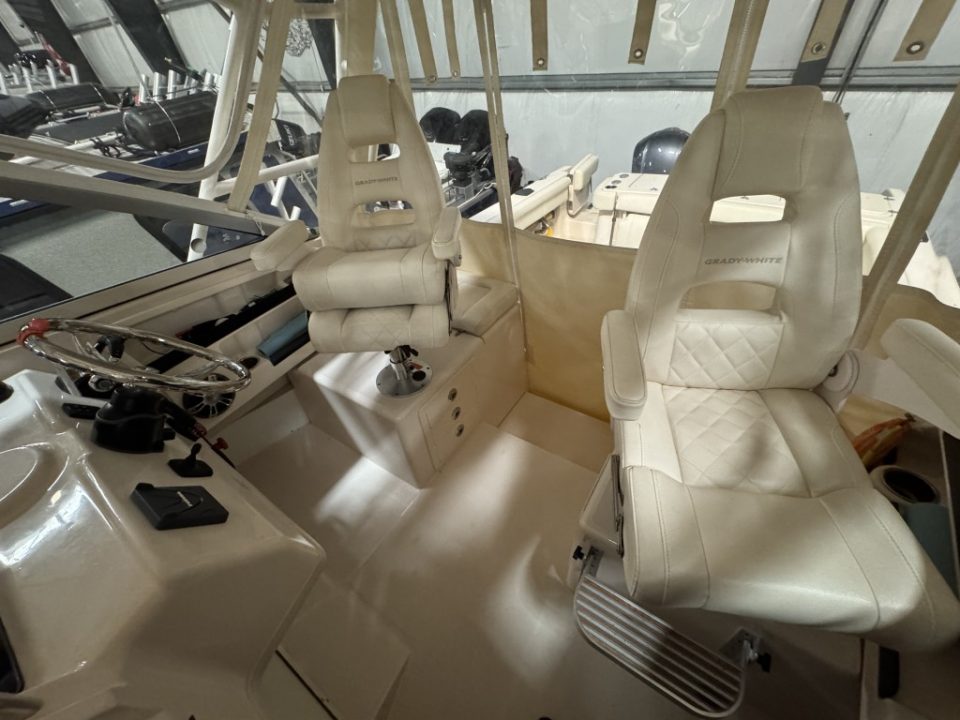

• Seating – Deluxe II vertically and horizontally adjustable helm & companion chairs
• Seating – fold away aft bench seat w/cushion
• Seating – foredeck cushions
• Seating – port livewell cushion
• Seating – starboard tackle station cushion
• Steering – hydraulic tilt w/power assist (n/a with Yamaha Helm Master control)
• Steering wheel – 316 grade stainless steel
• Stern eyes – heavy-duty 316 stainless steel
• Storage – aft deck lift out box
• Storage – forward anchor locker w/rode storage
• Storage – lockable storage under helm & companion seats
• Storage – under step compartment
• Transducer mounting flats
• Transom door – fiberglass
• Washdown – freshwater
• Washdown – pressurized raw water w/hose
• Windshield – ventilated tempered glass windshield
• Windshield wipers w/starboard washer

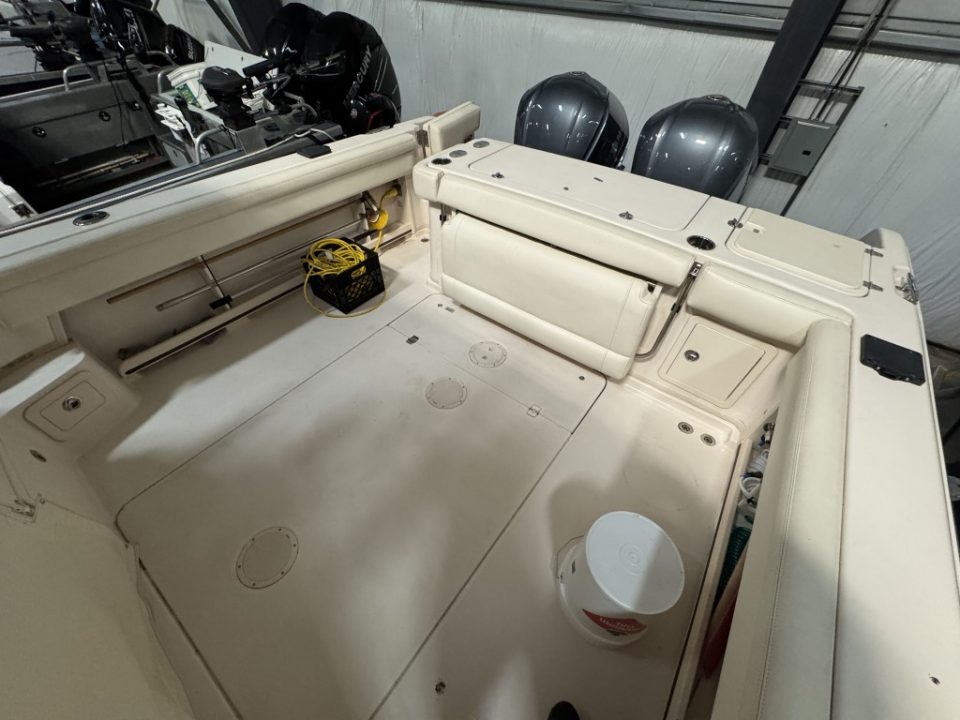

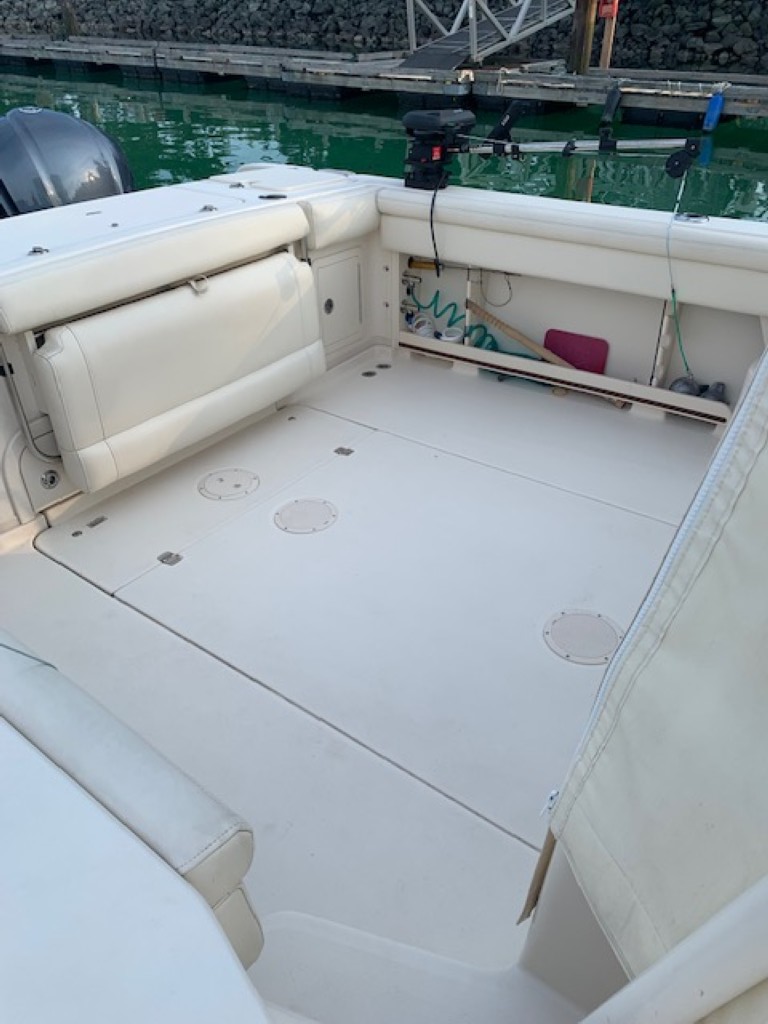

• Large self-bailing cockpit with bolsters
• Insulated 290-quart (approx. 275 L) aft fishbox with light and drain
• 32-gallon (121 L) insulated raw-water livewell with light
• Port-side rigging station with freshwater sink and bait box
• Walkaround side decks with toe rails and recessed nonskid

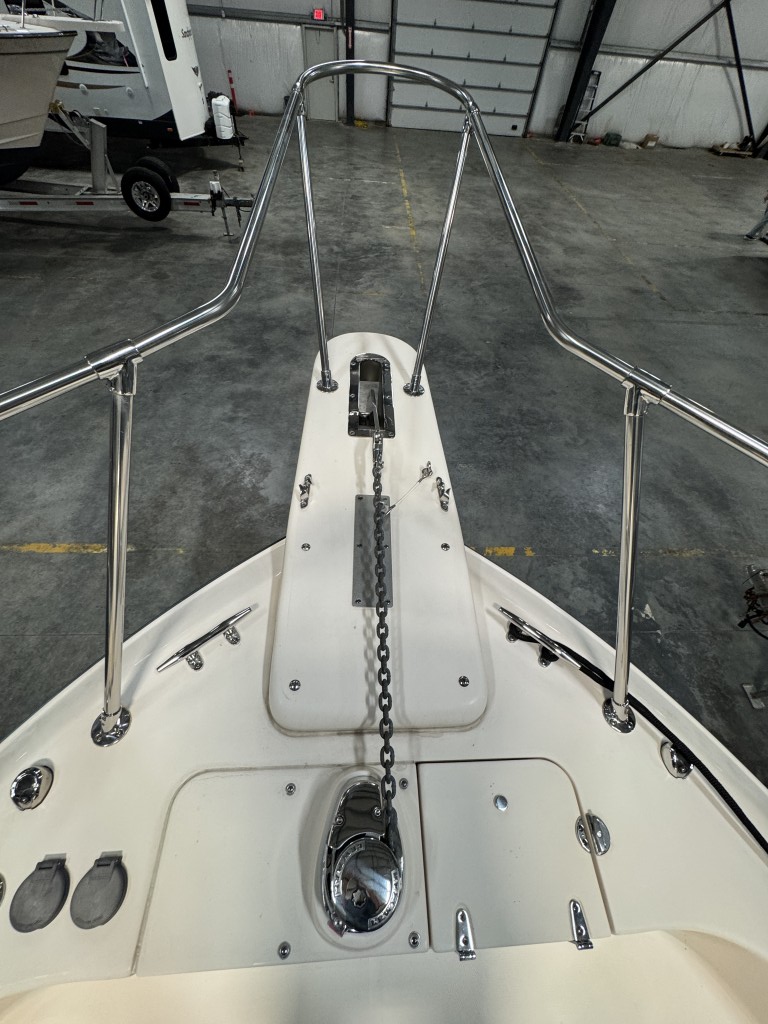

• Bow pulpit with roller and anchor windlass (with helm and foot controls)
• Port cockpit side door with boarding ladder
• Cockpit freshwater shower (hot/cold)
• Multiple rod holders, rocket launchers on hardtop, and under-gunwale rod racks
• Stainless steel drink holders, grab rails, and cleats

Safety

• 2 automatic bilge pumps (total 2600 GPH) (9842 LPH)
• Basic flotation
• Bow rail – 316 grade stainless steel
• Captain Grady – digital boat systems and operations guide for iPad and iPhone
• Cockpit toe rails
• Companion grab rail
• Composite stringer system & transom – water impervious
• Nonskid fiberglass liner
• Nonskid recessed walkaround
• Self-bailing cockpit w/cockpit drains (4)
• Stainless steel through-hull fittings

Additional Standard & Notable Features

• Multiple automatic bilge pumps
• Dockside power with galvanic isolator
• LED cockpit and navigation lighting
• Captain Grady® system (app-based owner’s manual and troubleshooting)
• Basic flotation and comprehensive safety equipment
