1985 Hunter-Vogel 30

1985 Hunter-Vogel 30

Make:
Hunter-Vogel 30
Model Length:
30 ft
Price:
CAD $29,900
Year:
1985
Boat Name:
Marakei
Hull Material:
Fiberglass
Draft:
5' 3"
Number of Engines:
1
Fuel Type:
Diesel

Listing Broker

Trina Holt

Yacht Broker - Victoria

Cell:250-818-4658

Office:250-716-2022 - EXT 402

Marakei

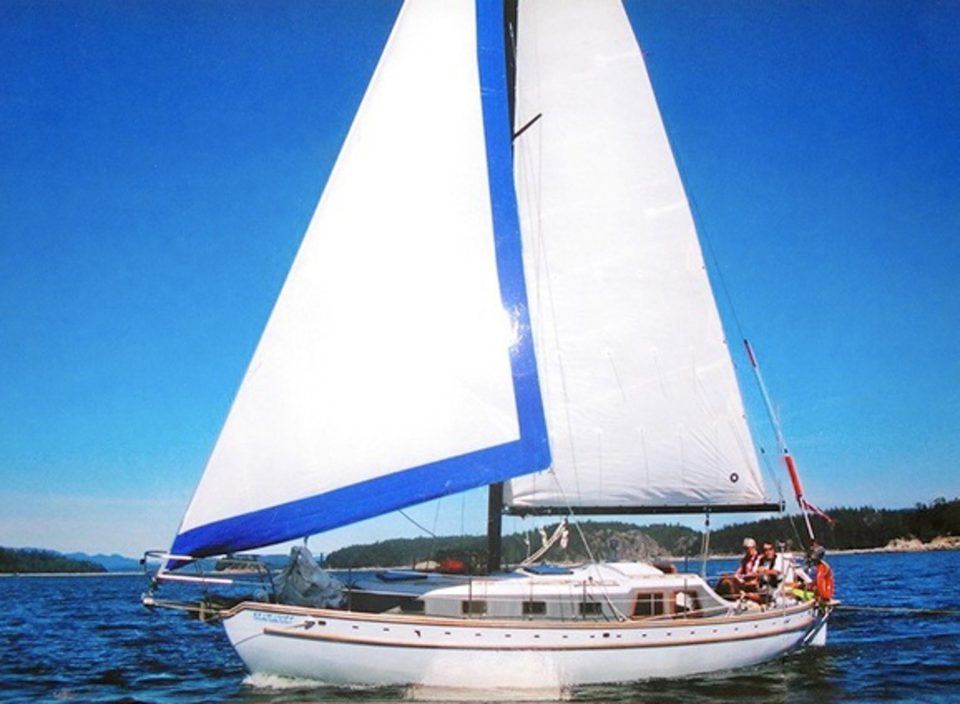

Do you want to see the Gulf Islands? Alaska? Hawaii? Mexico? If you like the traditional nautical look and feel of a stable, solidly built yacht, this is the one for you. Ag Utsen designed the molded fibreglass full-keel hull. She’s cutter rigged with furling foresails. New running rigging was installed by Blackline in 2019, including single-line reefing and lazy-jacks for short-handed sailing. A new AC/DC inverter lets you plug in your computer and appliances off-grid. The Dickenson diesel stove/oven keeps the boat cozy even in winter. She features a fully enclosed cockpit; teak deck and interior; two anchors; all current safety equipment; fridge; BBQ; eight opening bronze ports, and two large hatches that provide plenty of light and fresh air. The Volvo Penta diesel is reliable and has been regularly serviced by Gartside Marine. To top it all off, there is assumable moorage available at the Oak Bay Marina with management’s approval. If you want to get wherever you want to go in comfort, safety, and a whole lot of style, come and see this fantastic little sailing ship!

Specifications

LOA:
34'
Length:
30 ft
Beam Measure:
9' 6"
Displacement:
12,000 lbs
Number of Heads:
1
Number of Cabins:
1
Number of single berths:
2
Number of double berths:
1
Fuel Tanks#:
1
Fuel Tanks Capacity:
79 gal
Fuel Tank Material:
Steel
Fresh Water Tanks#:
1
Fresh Water Tanks Capacity:
79 gal
Fresh Water Tank Material:
Fiberglass
Holding Tanks#:
1
Holding Tank Material:
Plastic

propulsion

Engine #1

Make:
Volvo Penta
Model:
MD11
Fuel Type:
Diesel
Year:
1985/2017
Hours:
100 since rebuild

Specs

  • Boat name: SV MARAKEI
  • Model: Hunter Vogel 30
  • Type: Modified full-keel cutter-rigged sailboat
  • Builder: Independent Shipwrights Ltd. and Robert Enderby
  • Year: 1985
  • Flag of registry: Canada
  • Location: Victoria, BC, Canada
  • Sleeps: 4
  • Double berth: 1
  • Heads: 1

Dimensions

  • LOA: 34’
  • Beam: 9’ 6”
  • Draft: 5’ 3”
  • Headroom: 6’ 2” at centreline
  • Dry weight: 12,000 lbs

Engine

  • Brand: Volvo Penta
  • Model: MD11
  • Year: 1985 fully rebuilt in 2017
  • HP: 25
  • Fuel type: diesel
  • Hours: 100 since rebuild
  • Gear: reduction with reverse
  • Cooling: fresh water
  • Instrumentation: tachometer, coolant temp, oil pressure, charging amps, engine hours.
  • Maximum speed: 6.5 kts
  • Last service: Aug 2020 by Gartside Marine

Tanks

  • Fuel: 300 ltr (79 US gal), steel
  • Fresh water: 300 ltr (79 US gal), fiberglass
  • Hot water: galley range heated, or AC heating coils
  • Holding: overboard or dockside pump out

Hull, Propeller, and Rudder

  • Keel: modified full keel
  • Hull shape: displacement with rounded chines and canoe stern, raked clipper bow
  • Hull materials: solid fiberglass
  • Osmosis: none
  • Deck materials: teak planking over fiberglass on plywood
  • Electrolysis protection: zinc
  • Propeller: 3-blade Campbell, protected by keel
  • Rudder: fiberglass pintle mounted on stern

Cockpit

  • Fully enclosed cockpit
  • Cover for forward facing windows
  • Vinyl side and rear windows for easy rolling
  • 3 cockpit lockers
  • Teak grate flooring
  • BBQ on pushpit

Navigation

  • Steering: tiller

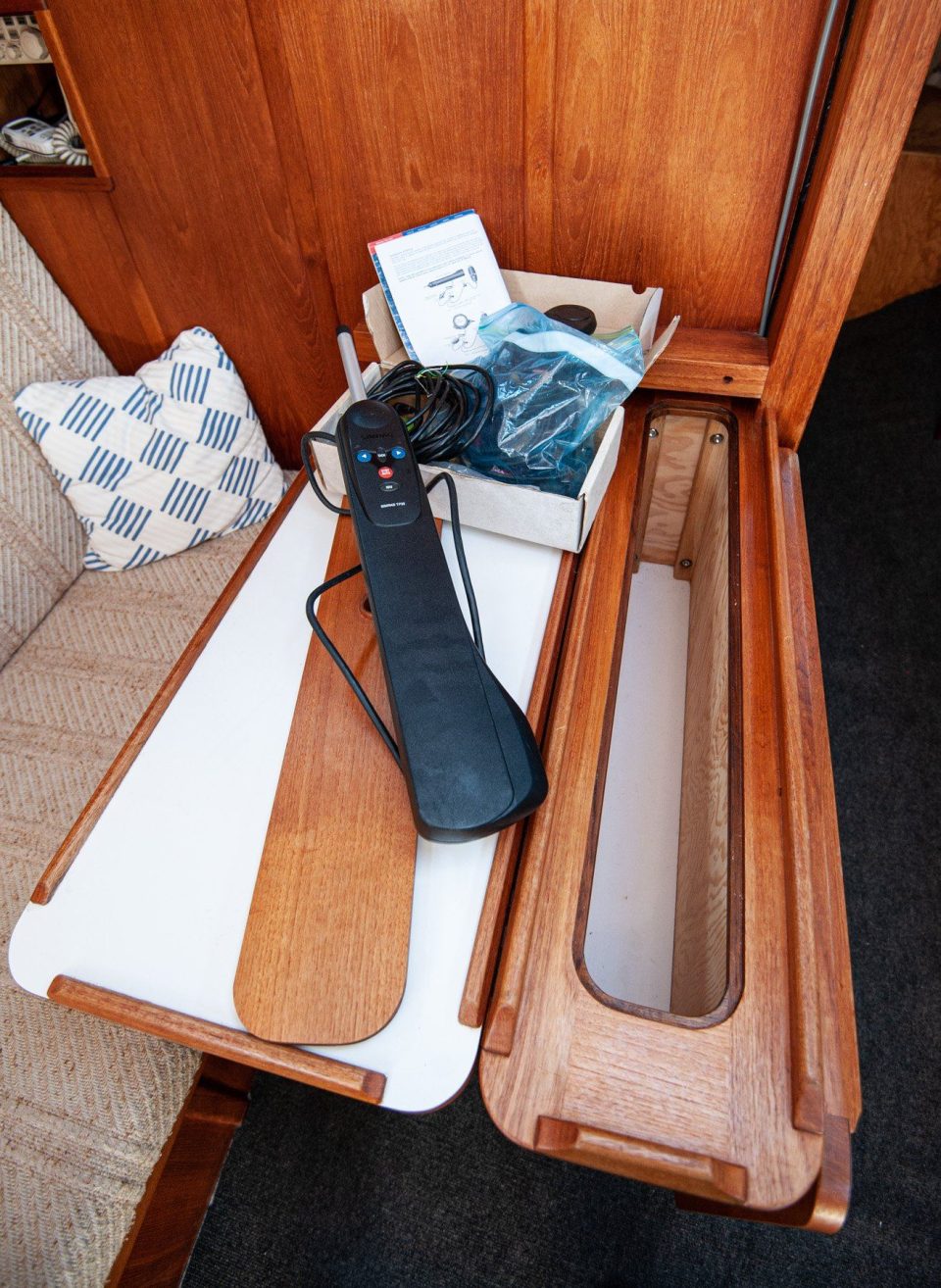

  • Autohelm: Simrad TP 32 tiller autopilot available for installation
  • Sounder/GPS/Plotter: Furuno GP-7000F
  • Compass: Gemini
  • VHF: Icom M502 with command mic

Electrical

  • House batteries: 2x 6V
  • Starter battery: 1x 12V
  • Battery charger: alternator, AC, and solar panel
  • Inverter: Phoenix 12 375
  • Shore power cord: 30 amp

Saloon

  • Two benches on either side of saloon, each 6’ 2.5”
  • Wing-folding table offset to port. Centre part has deep storage.

Galley

  • Fridge: top-loading fridge
  • Sink: deep and centred
  • Taps: electric
  • Cooking: Dickinson diesel fueled range with oven

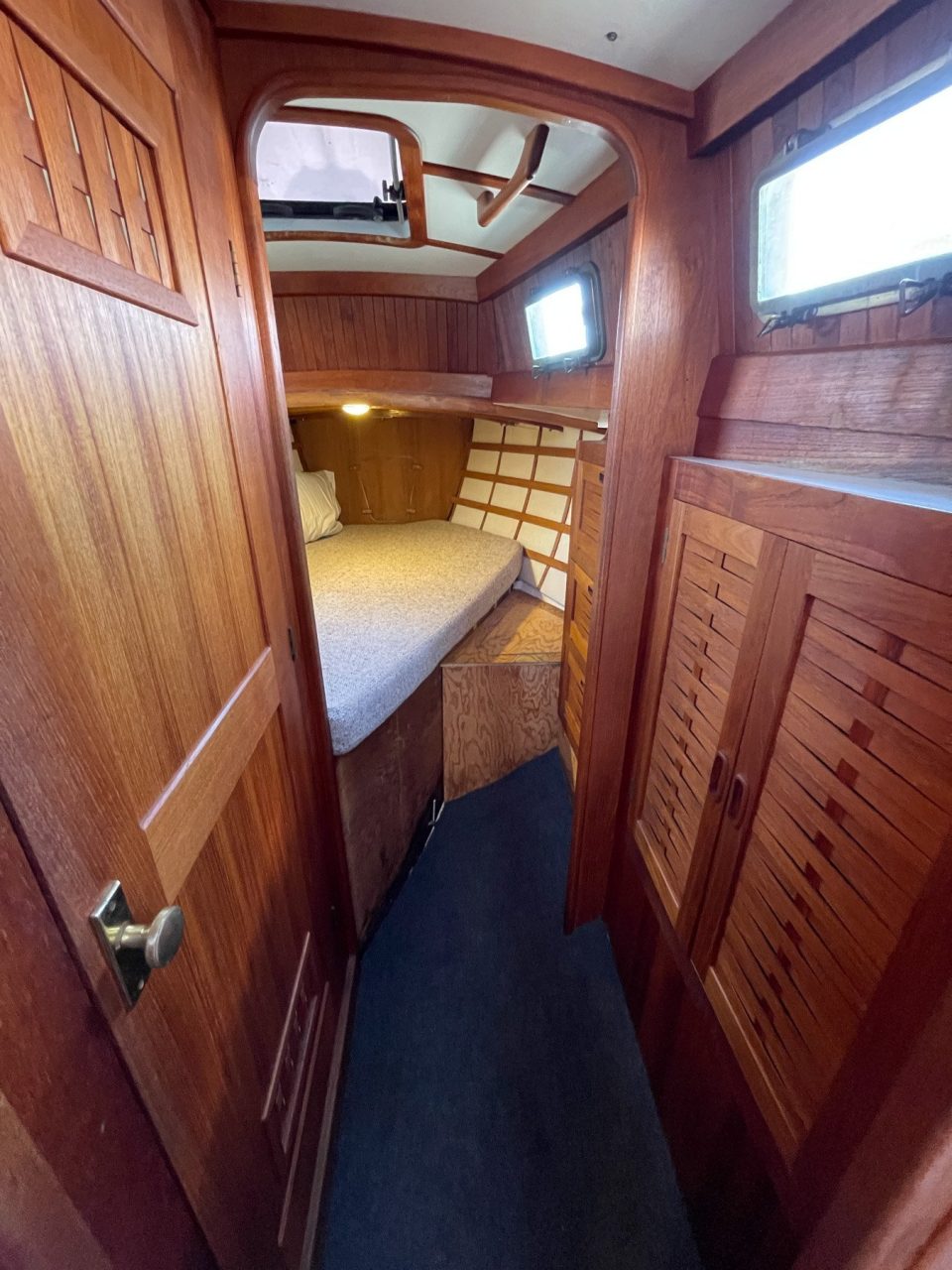

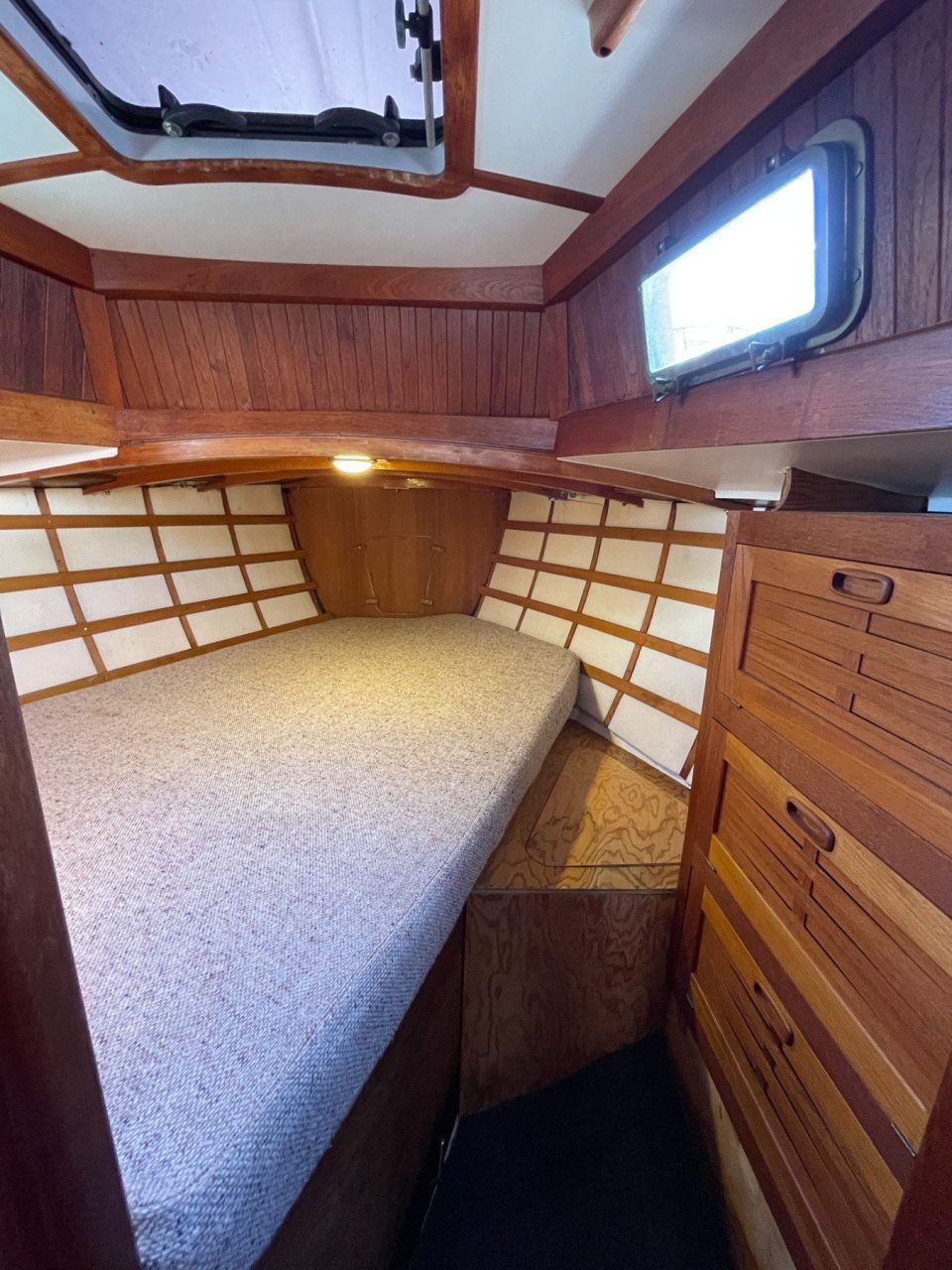

Stateroom

  • Sleeps: 2
  • Pullman berth in fo’c’sle
  • Bed length: 7’ 2”
  • Bed width: 4’ 2”
  • Dressing seat to starboard
  • Hanging locker to starboard

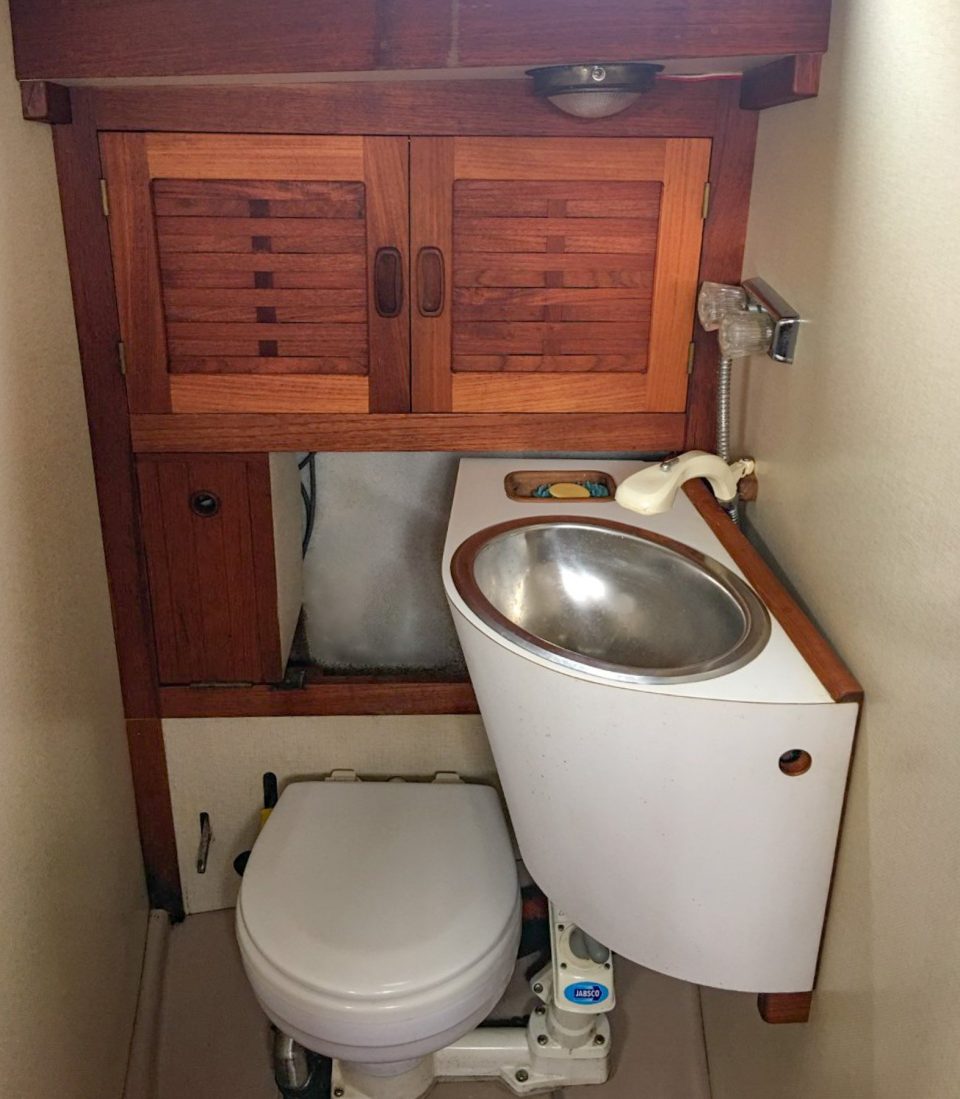

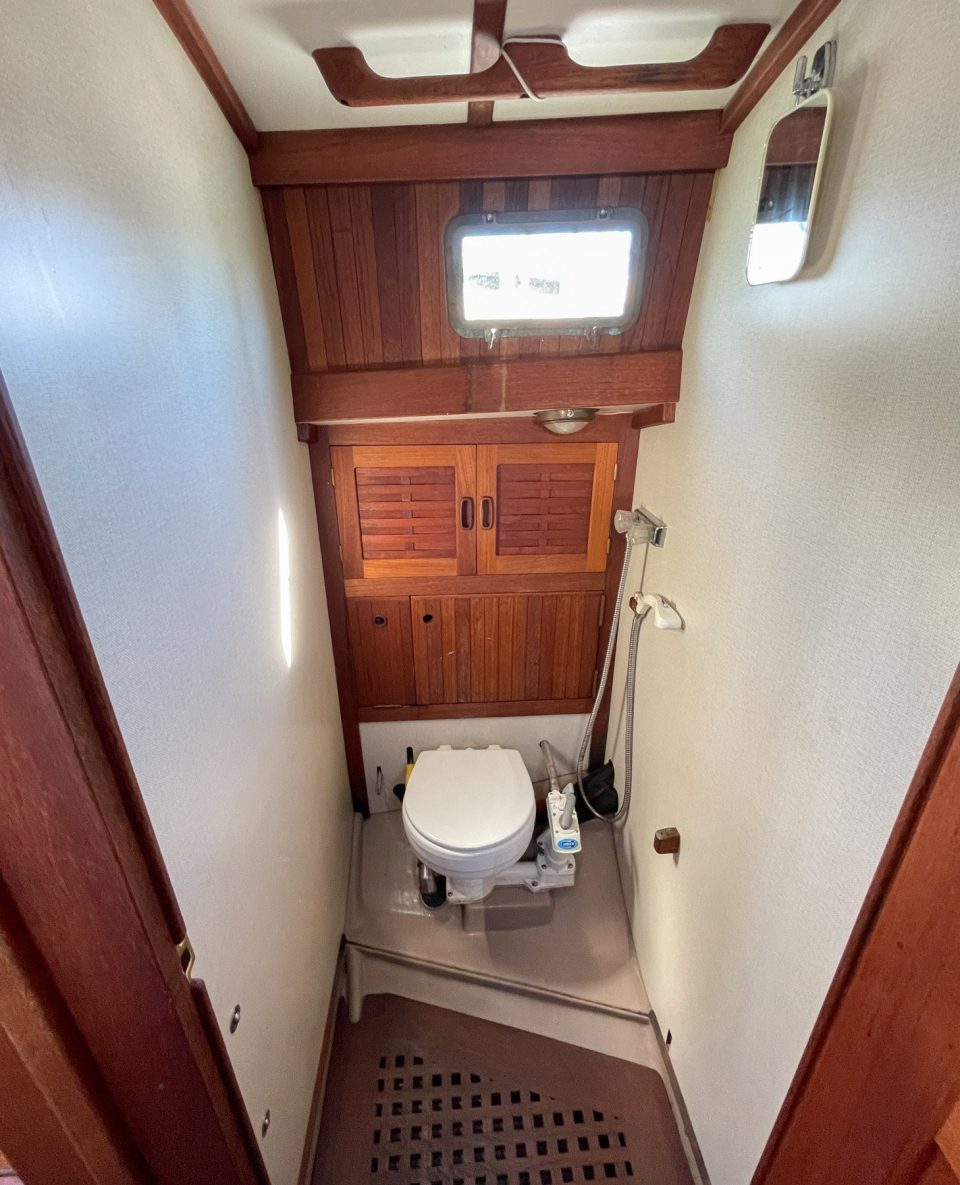

Head

  • Toilet: manual Jabsco
  • Tap: electric
  • Basin: hinged, swings out from cupboard above toilet
  • Shower: hand-held head
  • Sole: teak grating

Aft and Outer Decks

  • Portholes & windows: 4 large windows aft, 8 opening bronze
  • Note: bronze portholes seep and need service, but no known rot
  • Forward cabin access: large hatch
  • Lazarette: yes, plus two cockpit lockers
  • Railings: stainless steel push/pullpits

Rigging

  • Mast: aluminum, deck-stepped
  • Standing rigging: stainless steel cable
  • Spreaders: single
  • Running rigging: new 2019 (receipt available)
  • Winches: Barient 10, Andersen 18 self-tailing, 2x Barient 20, 2x Barient 21
  • Lazy jacks: new 2019

Sails

  • All sails are original and in serviceable condition
  • Main: yes
  • Genoa: furled
  • Staysail: furled
  • Sail cover: repaired and refreshed 2019

Ground Tackle

  • Anchor: CQR 35 lb
  • Rode: 5/16” galvanized chain
  • Secondary anchor: Bruce 15 Kg
  • Windlass: Ideal manual

Safety

  • Bilge pump: electric and manual
  • Lifesling 2: yes
  • Flares: yes
  • MOB pole: yes
  • Life ring: yes
  • Sound: portable air horn
  • Fire extinguishers: 2x 1A10BC
  • Radar reflector: yes
  • Buoyant heaving line: yes

Tender

  • Dinghy: hard dinghy, 2-person
  • Outboard engine: none
  • Dinghy storage: foredeck or tow
  • Note: there is a crack in one of the teak rails

Equipment / Extra

  • Last survey: June 2018
  • Last haul-out: May 2020
  • Spares: crank; wooden scuppers and cockpit drain plugs; stove cleaning kit; toolbox w/rasp, wood chisel, pump screws; O-rings; impeller; volt meter; temperature gauge (to 250˚F / 120˚C); pump impeller kit 21951342; 2 filters 876554; SaniGard holding tank replacement filter (309310001); Blue Sea Systems DC digital ammeter; bow roller replacement wheel; stainless hose clamps; bag of various interior light bulbs; Dayco Top Cog belts (15345 11A0875 & 15310TC 11A0785); 2” x 5.5’ black strap/belt; 000TM-OR filter w/wiring (1 7/8” x 2 7/8”); Hellamarine model 3562 navigation lamp (white, stern, w/ fuse but no glass cover); 3 pouches w/telltales; 5 Victory Products window gaskets (black, # FS0009/G); 2 Spinlock stanchion leads (to lead back 1/2” furling control lines); 2 rollers (one double w/cam cleat and quick release cleat); outdoor carpet tape in box; bag w/battery cables and hold-down screws; 2 1/4” short-handle open wrench; 2 black plastic thingies (2 3/4” long when screw closed), yellow strainer (1 3/4” dia); 2 hard plastic squares w/1 hole & 1 round corner ea; blue strapping sewn to a loop – 8.5” dia; small black toolbox w/fuses, wrenches, Allen wrenches, prop flange puller, etc; 3/4” belt lock.

Disclaimer

The Company offers the details of this vessel in good faith but cannot guarantee or warrant the accuracy of this information nor warrant the condition of the vessel. A buyer should instruct his agents, or his surveyors, to investigate such details as the buyer desires validated. This vessel is offered subject to prior sale, price change, or withdrawal without notice.
