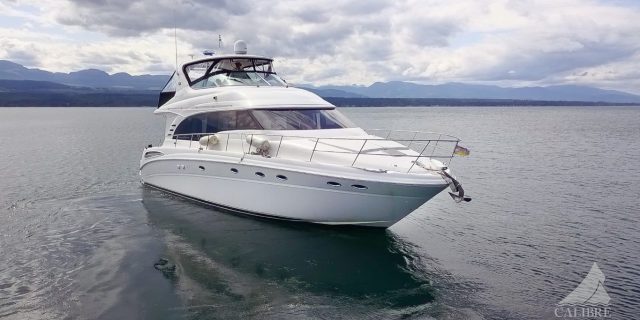

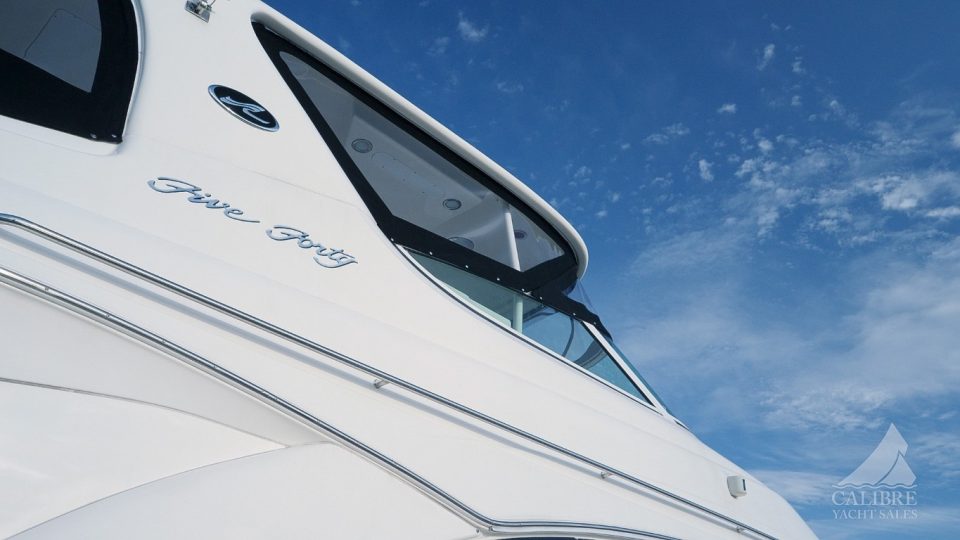

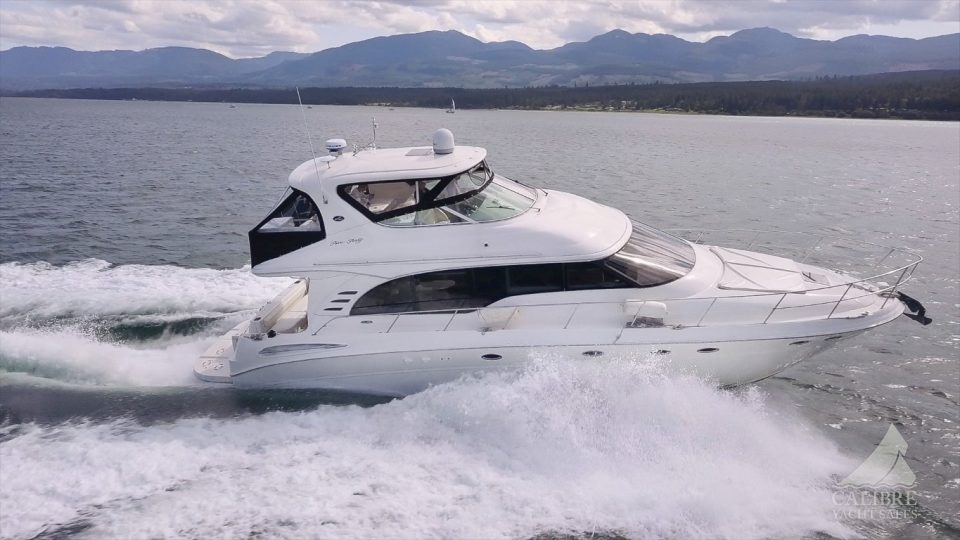

2002 Sea Ray 540 Cockpit Motor Yacht

New Upgrades 2020-2022

• Starboard engine – New Head, impeller, seals etc
• NEW Shaft seals – replaced
• OIL & Filters – Replaced 2021
• NEW Bottom paint and New zincs
• HULL Exterior fiberglass buffed, polished and looking great
• NEW Galley fridge – under counter
• Air conditioning and heating inspected and running great
• Spare Props – repitched and tuned
• New Anchor – Rocna
• New VHF Radio – Uniden UM385 BK

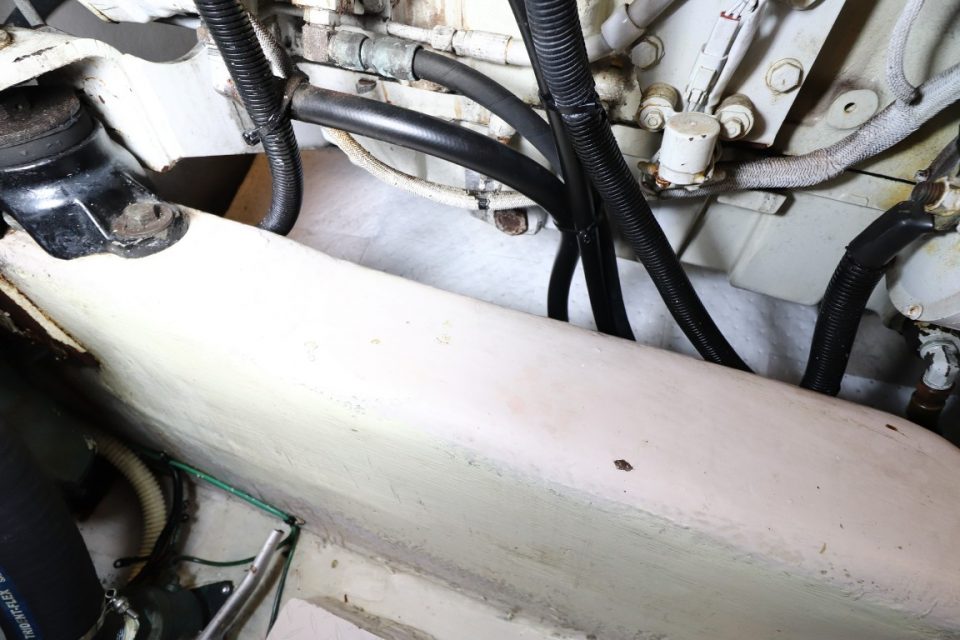

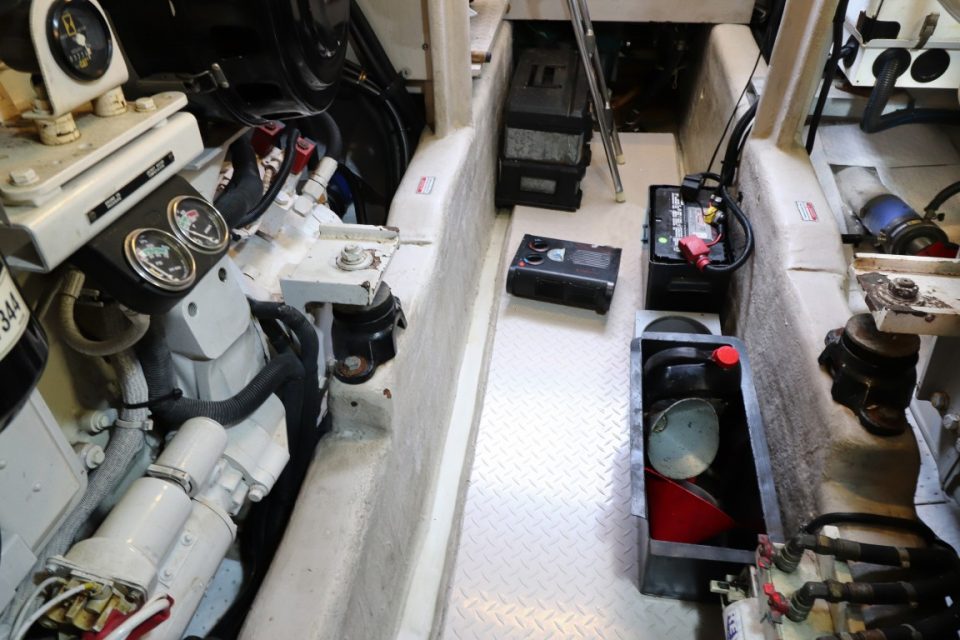

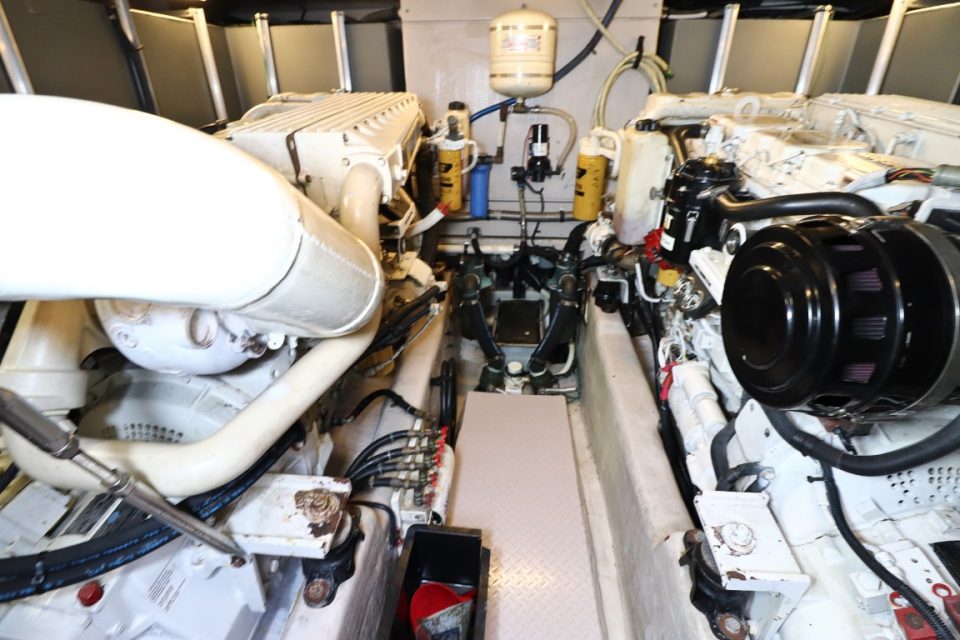

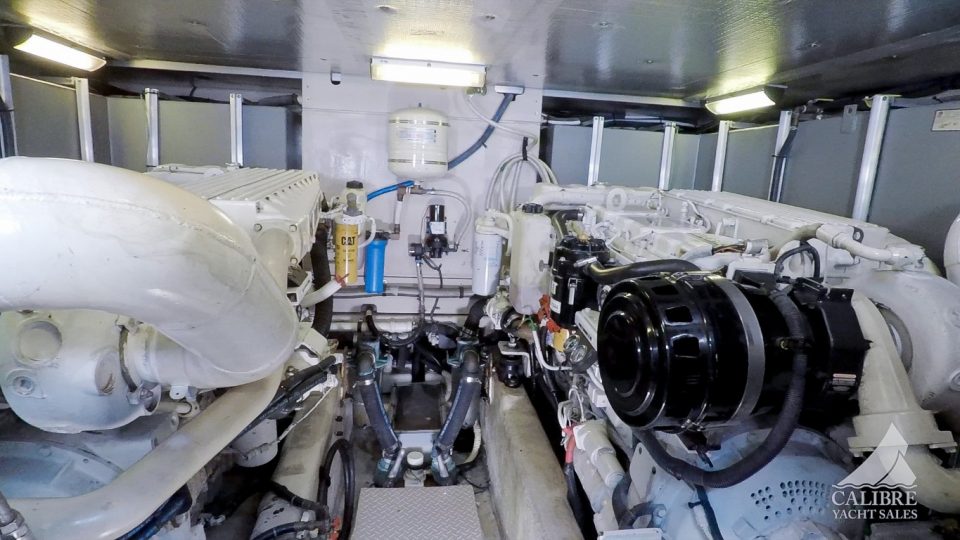

Engines & Mechanical

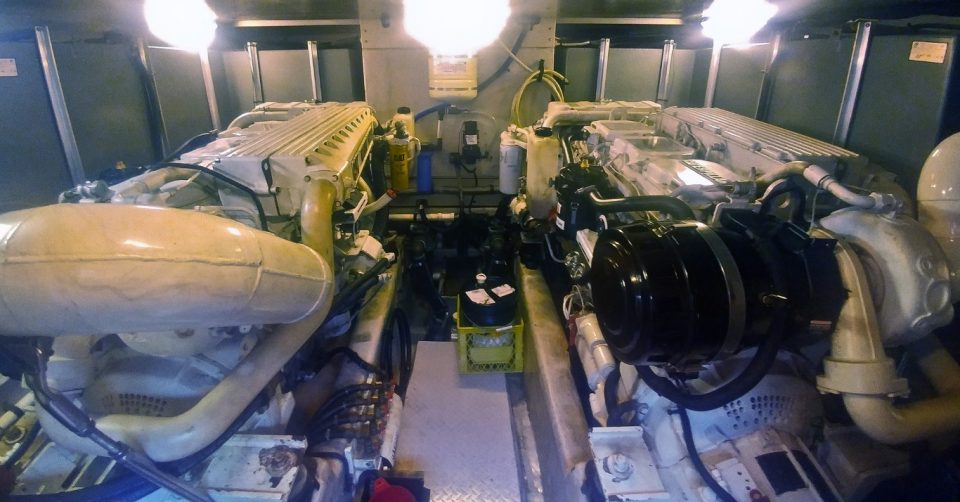

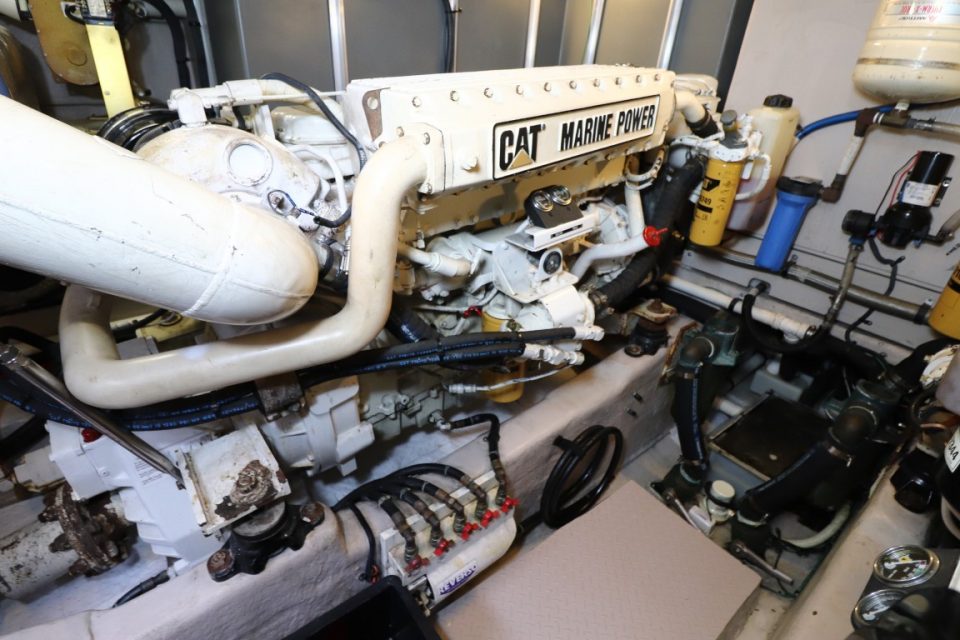

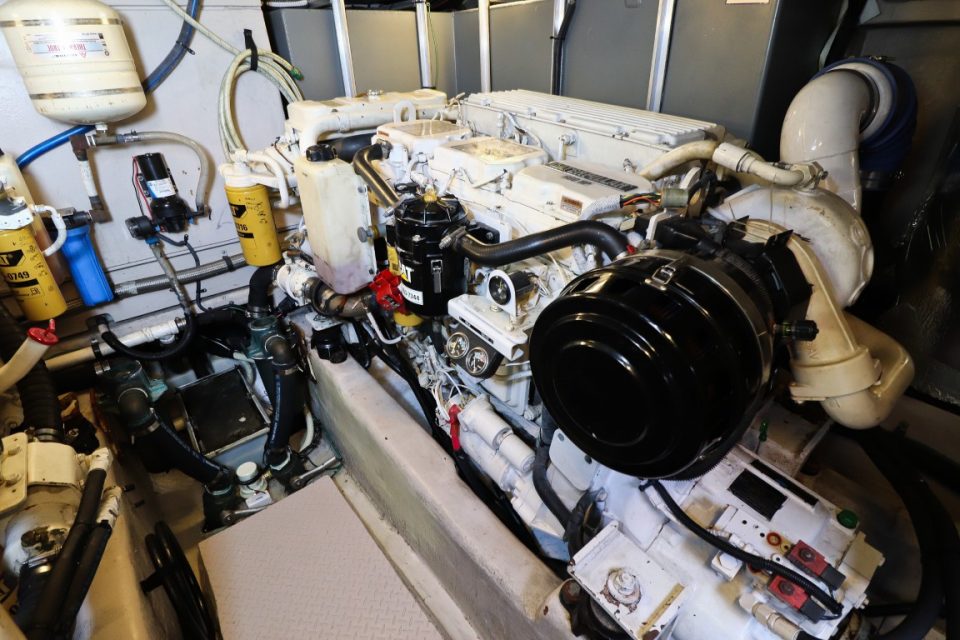

• Primary Power-Twin CAT3196TA Caterpillar-(660 hp each)
• Top speed 27 – 30 knots, Cruises 20-knots
• Starboard engine- New head and impellers 2020
• Complete Oil and Filter change 2021
• Cat Service and computer analysis on both engines 2020
• Turbocharged-after-cooled design
• Caterpillar Engine Synchronize system – just serviced

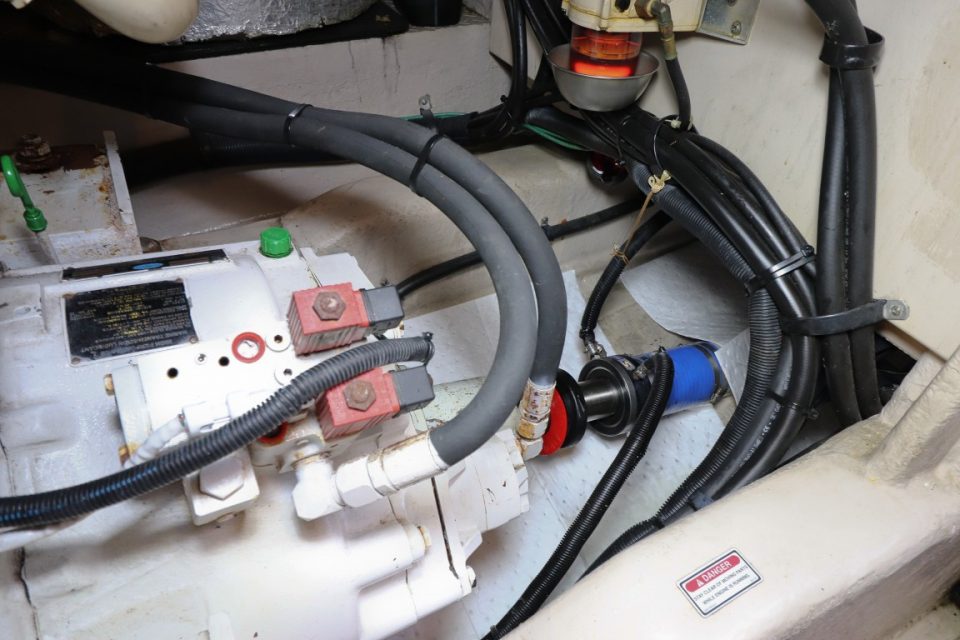

• Twin Disc Marine Transmissions

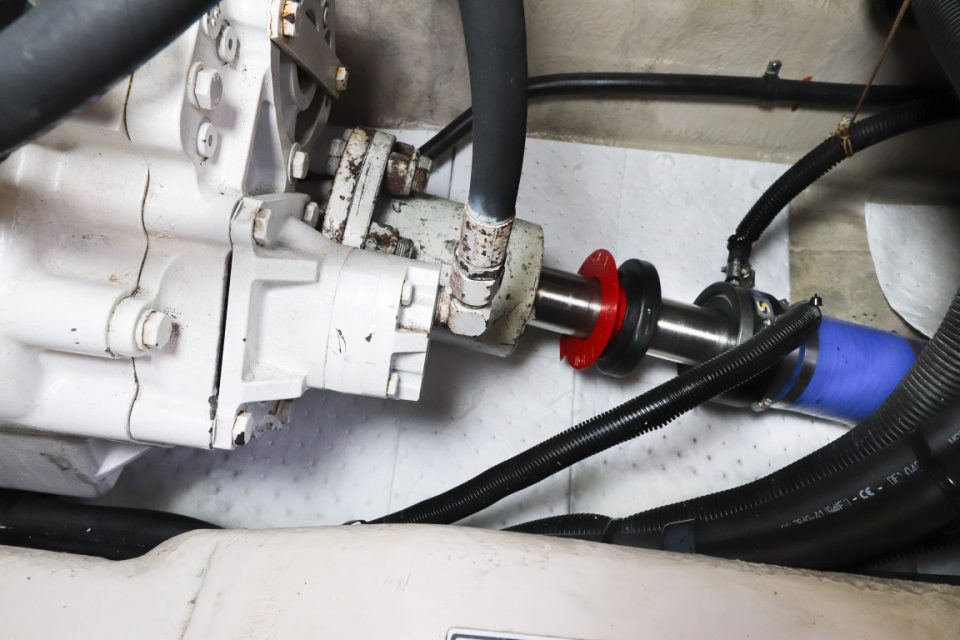

• Propeller Shafts, 2 1/2″ Stainless Steel (2) – Aquamet 22 is a high-alloy austenitic stainless steel (superior corrosion/pitting resistance along with excellent high strength)

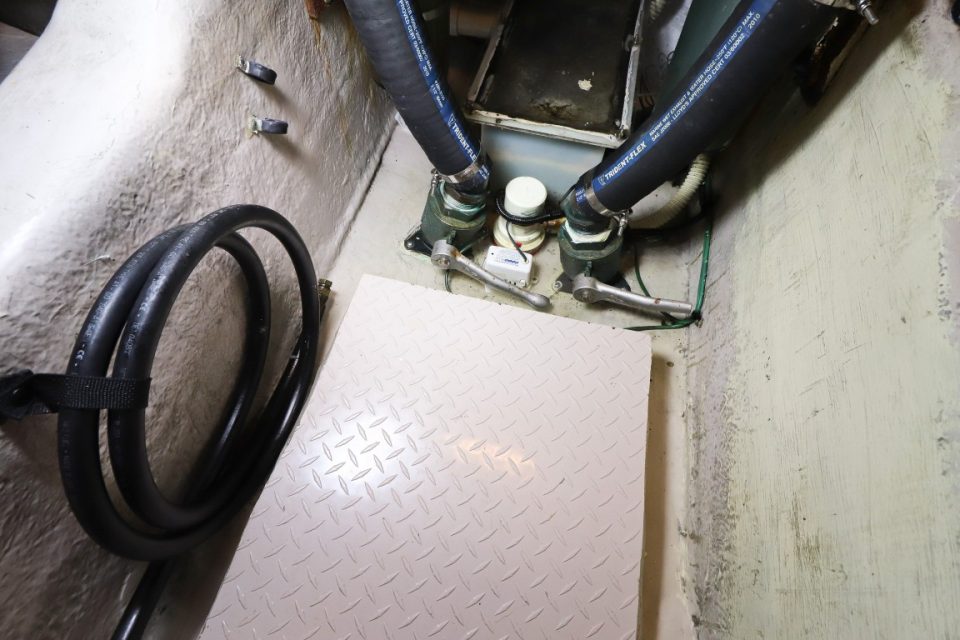

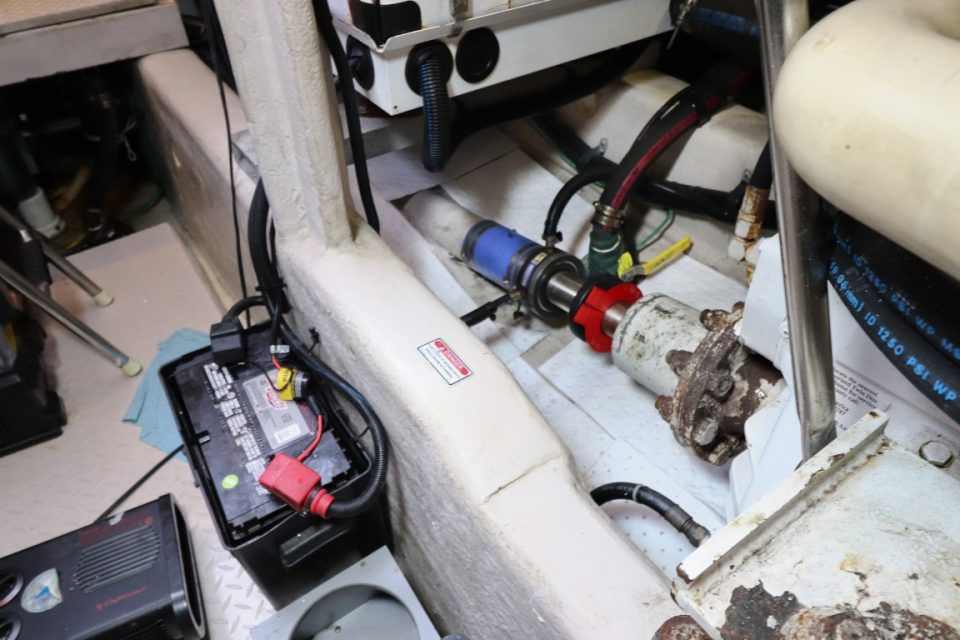

• Shaft Logs, Dripless w/Extra Seal Carrier Kit
• Propellers, 4-blade Bronze – Plus spare set of x2 Nibral 4-blade props (repitched & tuned)
• Oil Changer System – Engines & Transmissions
• Crossover Fuel System
• Fuel Filters (3) (Racor -(2) 75-1000MAX (Dual) for Engines, (1) 500MA for Generator
• Fuel Tanks, Aluminum w/Electric Sending Units (2)
• Bonding System w/Large Zinc Hull Plate
• Rudders – Manganese-Bronze w/Stainless Steel Posts
• Struts – Manganese-Bronze
• Trim Tabs, 24V Hydraulic Transom-Mounted, Heavy-Duty Dual Rams w/Pump

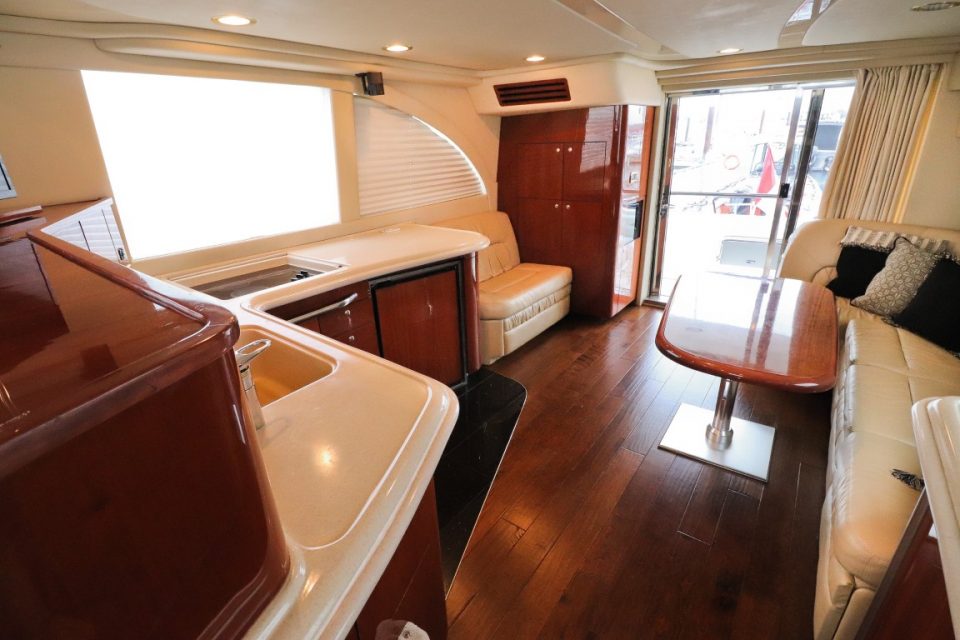

Main Saloon

• Primary entrance through lockable tinted sliding glass door
• The bright open space of the main saloon welcomes you to the interior
• L-shaped Galley on your starboard side.
• Saloon sofa and chairs in butter-soft ultra leather
• High gloss High/low dining/cocktail table
• Large windows permit panoramic views

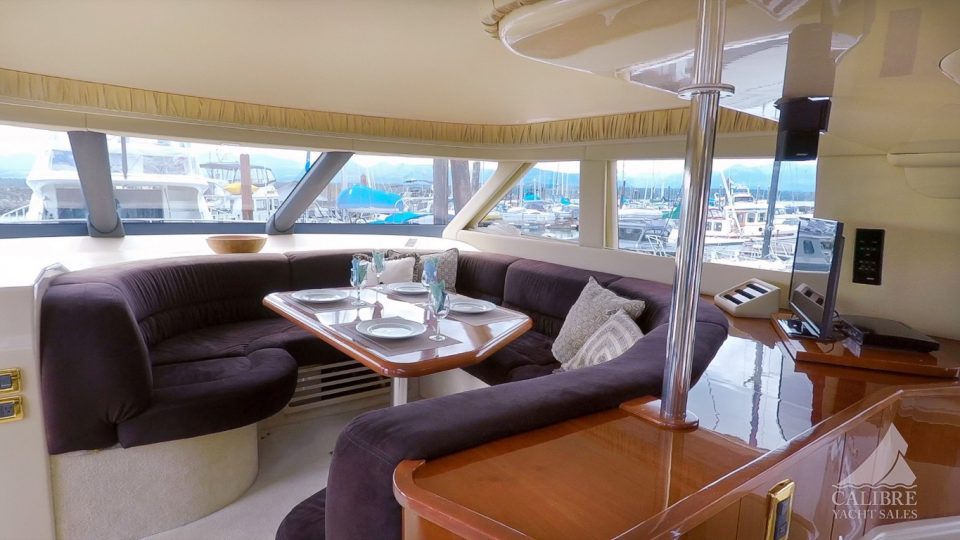

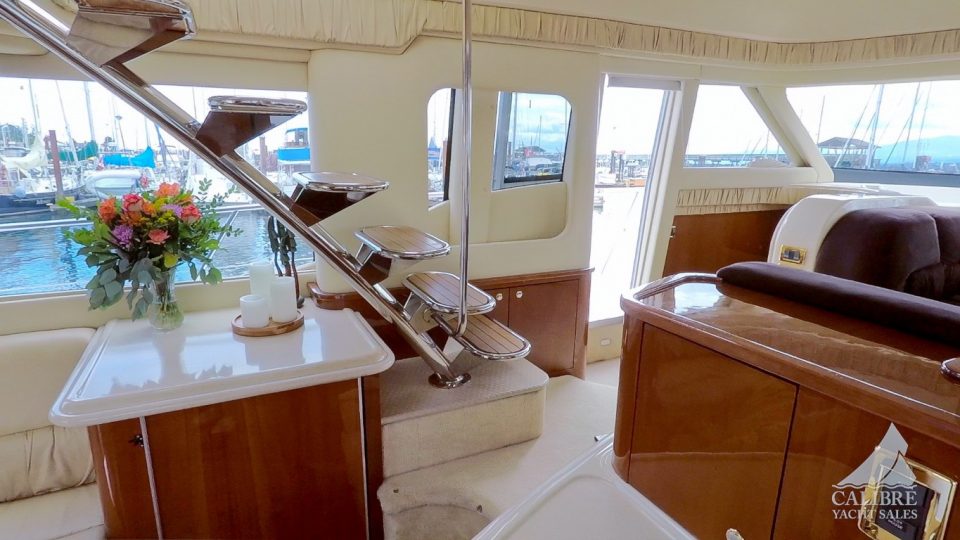

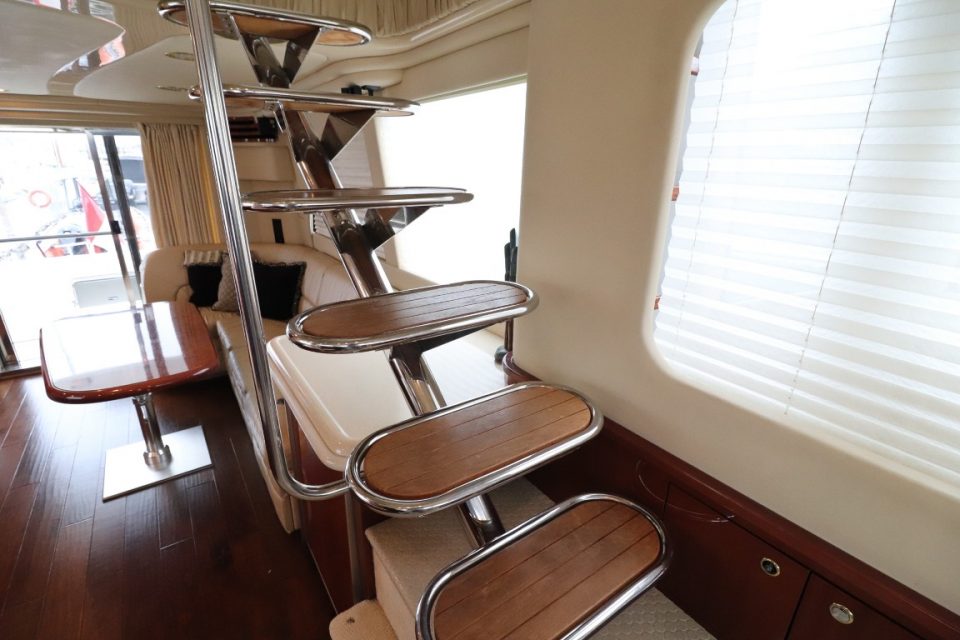

• 2-steps up and you are in the upper saloon-wrap around seating & dining table (seat up to 9)
• Entertainment system including:
• 20” TV w/sound system

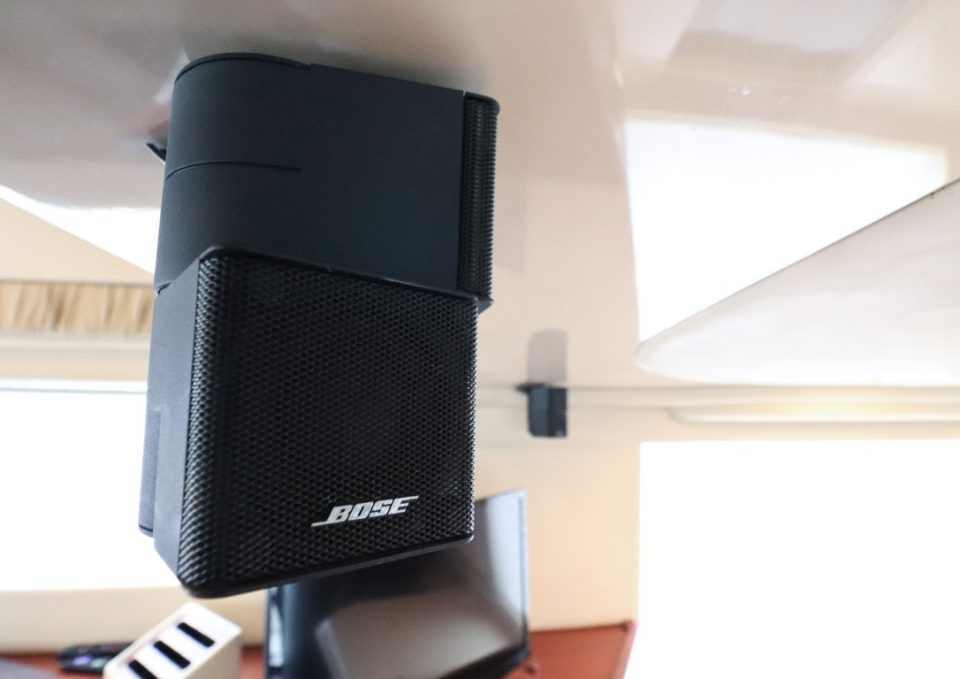

• Jewel Cube Speakers (2), LS Bass Module &
• Remotes (Bose Lifestyle 20)

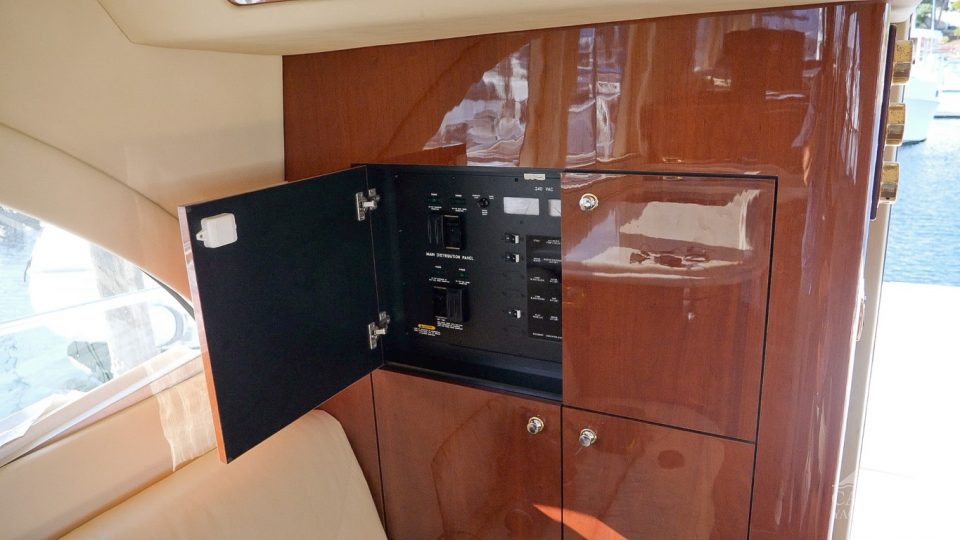

• Distribution access panel 120/240-volt a.c. & 24-volt d.c.

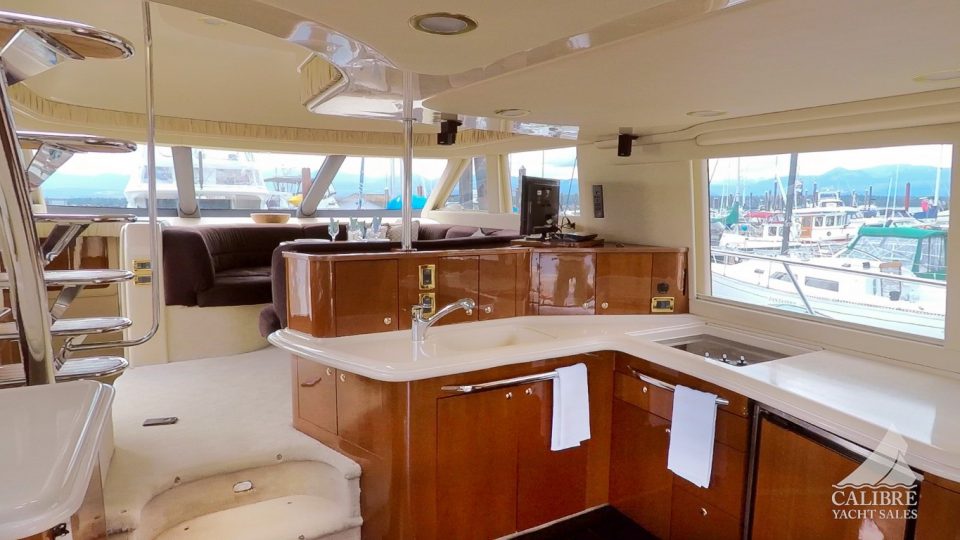

Galley

The Galley is designed into the living space of the upper and lower saloon. Very open and spacious with an L-shaped molded counter, leaving no seperation from guests.

• L-shaped Counter top, Corian Custom-Molded to fit sink and stove top
• Beautifully finished Cherry cabinets

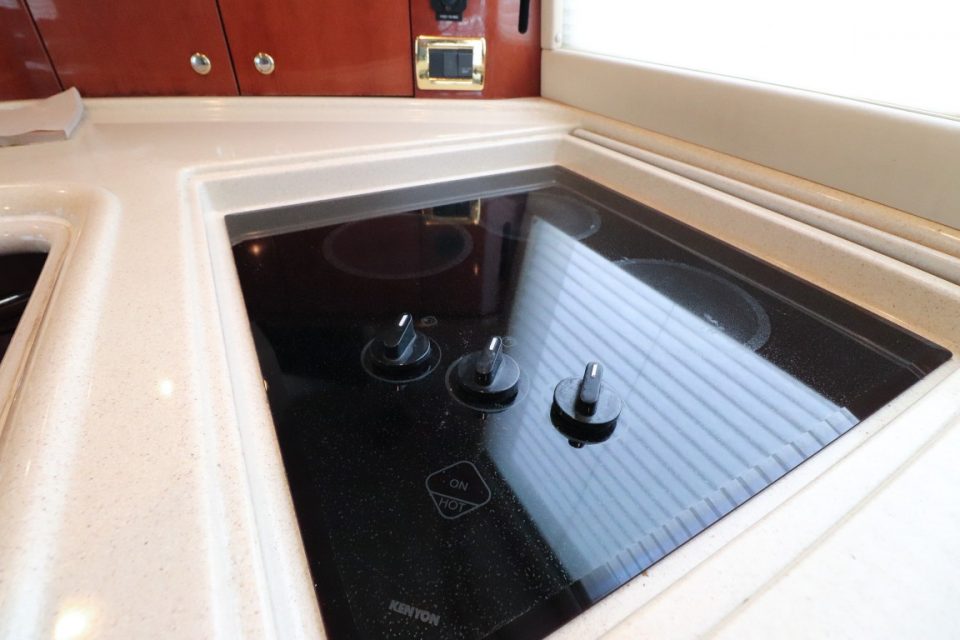

• Stove, 240V Recessed Three-Burner
• x2 Refrigerators, one to starboard- Undercounter stye, 120V (Sub Zero)
• 2nd Fridge to port w/icemaker, 120V
• Microwave/Convection Oven, 120V

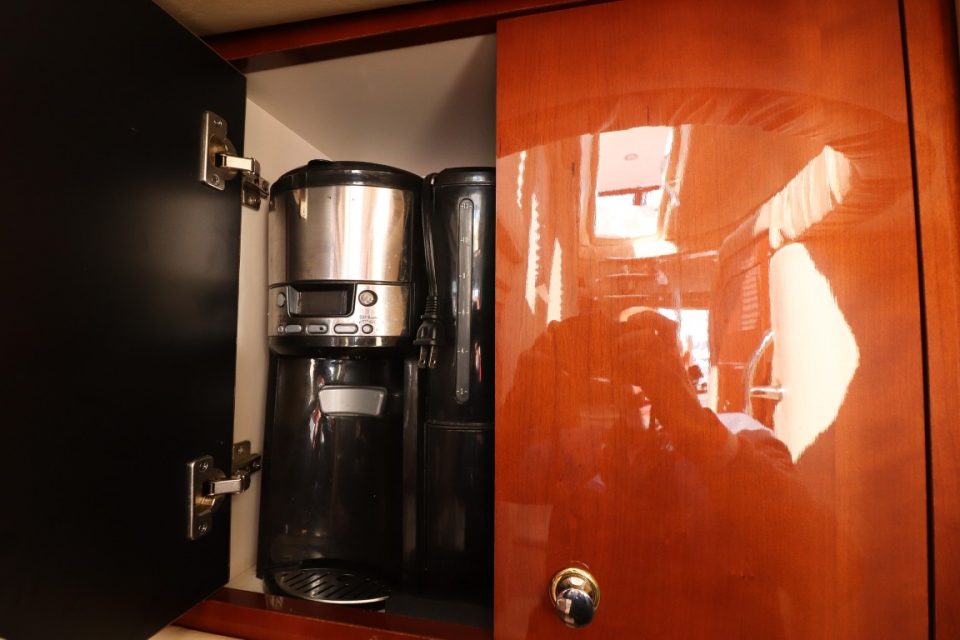

• Built in coffee maker
• The flooring carpet removed and replaced dark cherry hardwood

Accommodations Lower Level

• The vessel is luxuriously furnished to accommodate seating for up to 15 persons. Sleeping facilities for up to 8 persons, within 3 cabins below and a double electric settee converts to a double bed on the fully enclosed bridge deck.

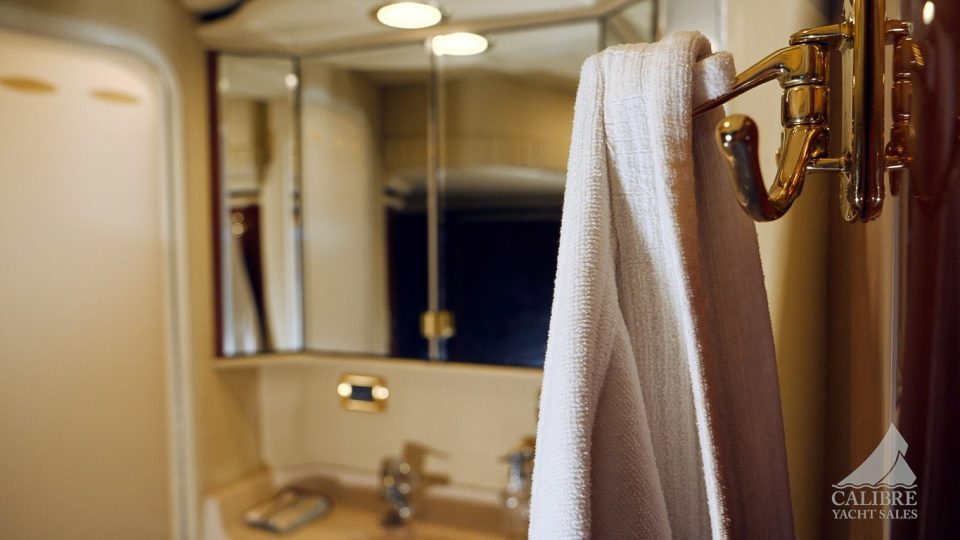

• There is Private Access to a well appointed Master Stateroom mid ship. The Master Queen-Size bed includes extra comfortable innerspring Mattress that can easily surpass your home. Head, Vanity & Shower all located as an ensuite for your private use. Washer/Dryer combo built into the cabinets along with cedar lined lockers and storage.
• The VIP cabin forward in the V Berth also provides large comfort with an island queen bed.
• The 3rd cabin to starboard is an ideal cabin for the kids with an over/under bunk arrangement.

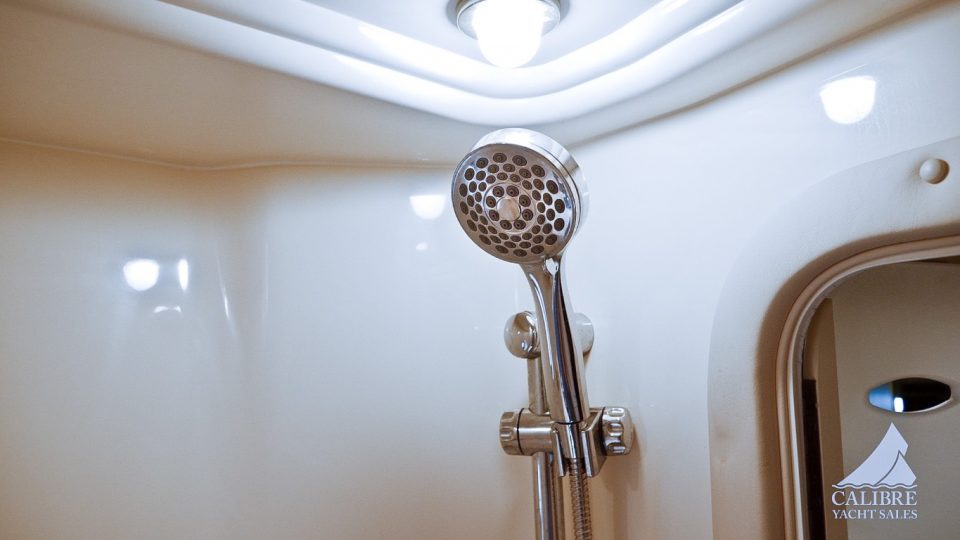

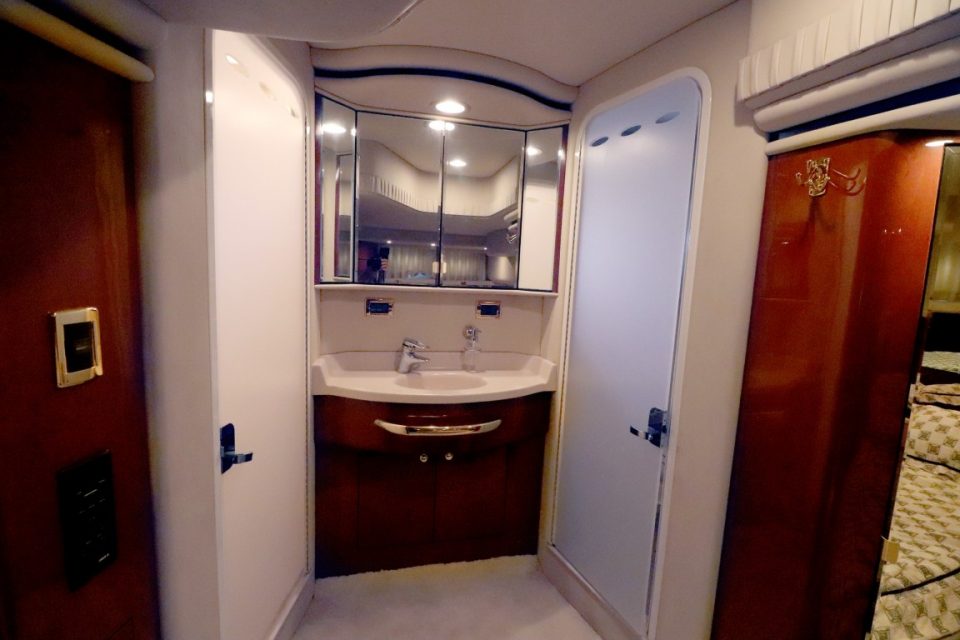

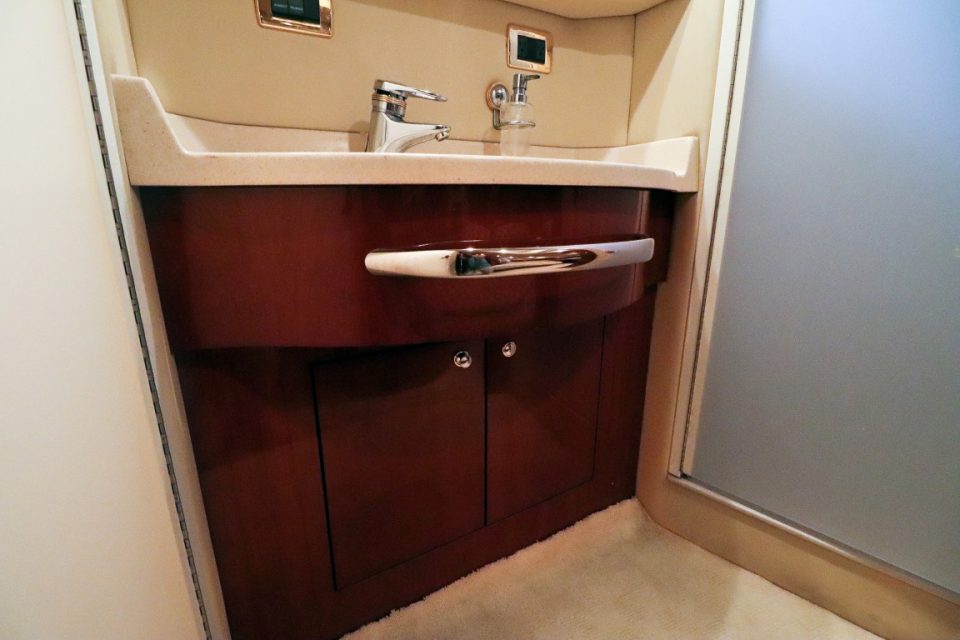

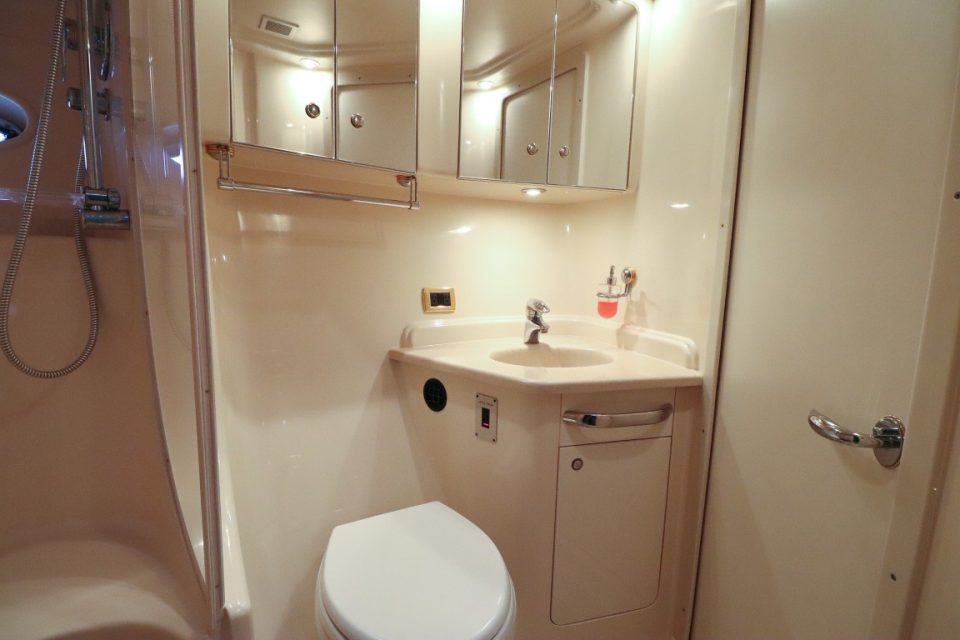

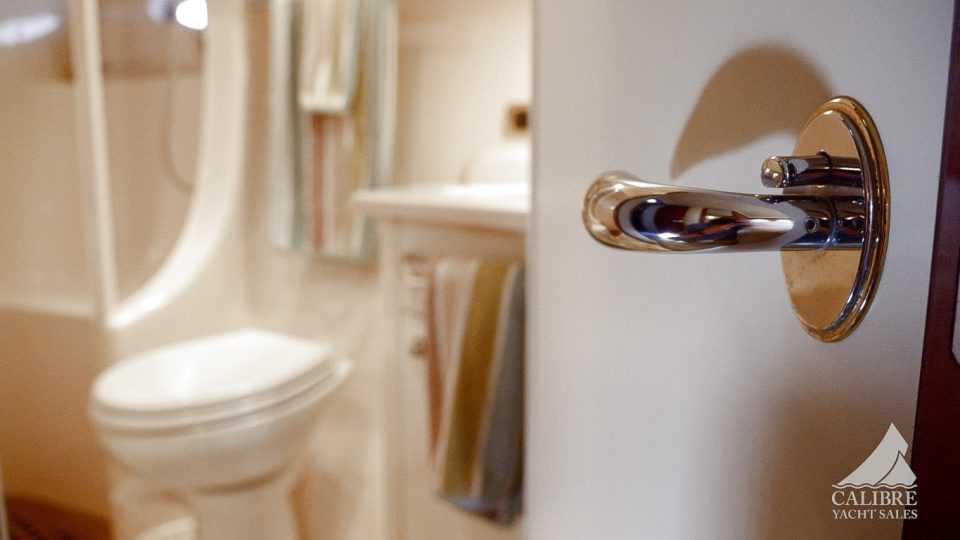

• Second head with shower for the guests
• All lower accommodations is carpeted for comfort and sound proofing
• Central vac easily accessed for these spaces
• Heating & Air conditioning throughout

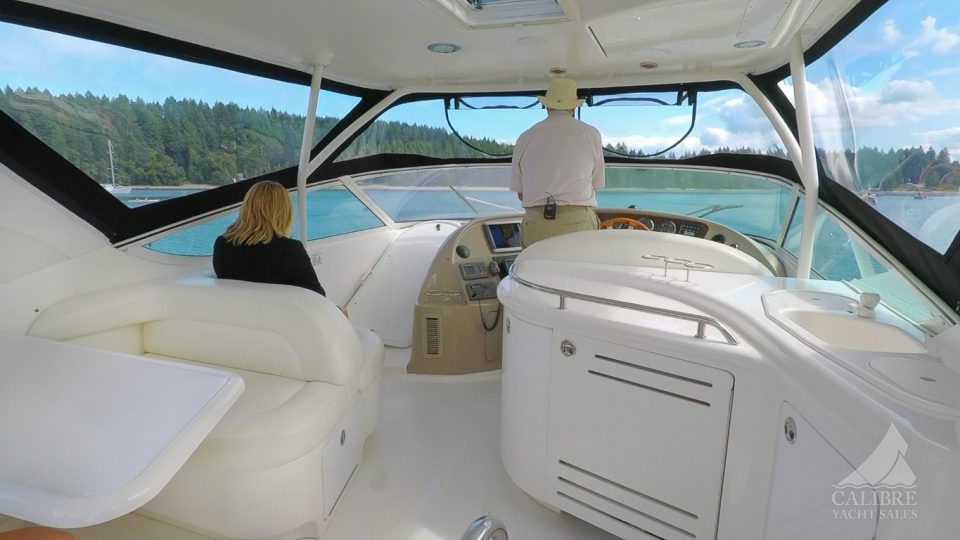

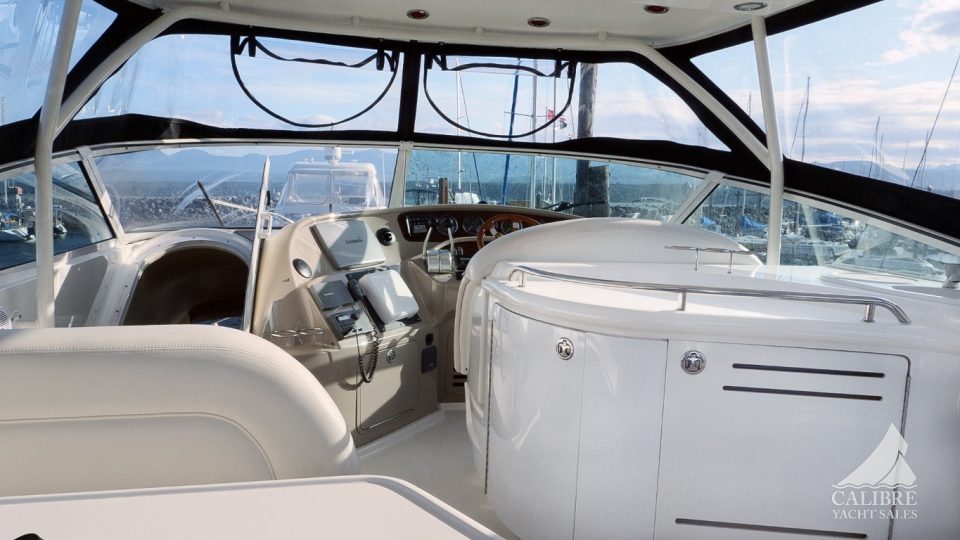

Flybridge

• Setup like a second saloon
• Access steps forward and aft with lockable hatches
• Single helm model includes wrap-around helm staton, seating for 2
• Fixed fiberglass hardtop-fully enclosed with Sunbrella canvas & Strata glass, new in 2019
• Power Adjustable seating w/Storage Below
• Dinette w/seating for 6 – includes extra storage
• Aft-Facing Bench seat w/Electrically Actuated Retractable Sun Pad
• Wet Bar w/Sink, cooler, Refrigerator/Ice maker combo, 120V
• 2nd larger Cube Freezer added into the flybridge to accommodate more freezer space
• Stereo, 12V AM/FM Single CD w/6-Disc CD Changer, subwoofer, amplifier, speakers (6) & Digital Cockpit Remote Control

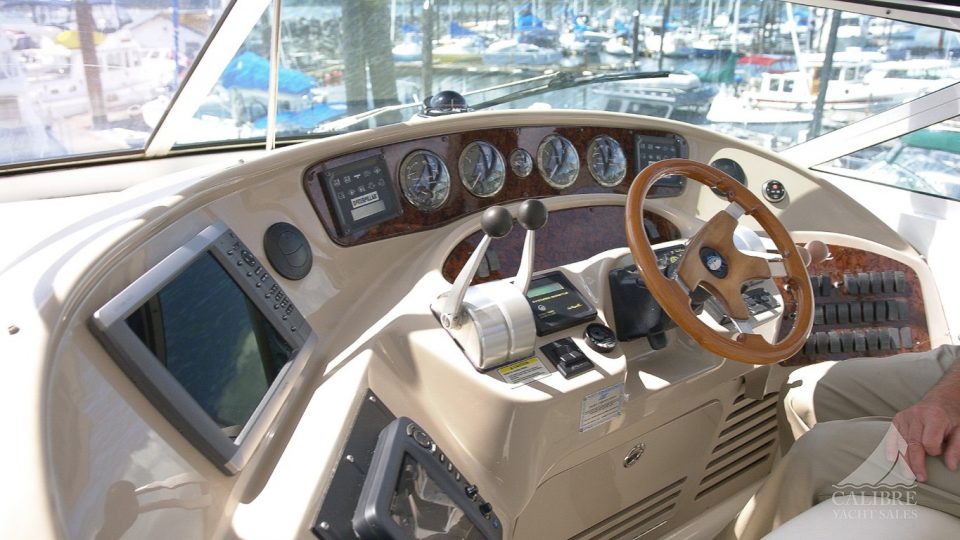

Helm Staton

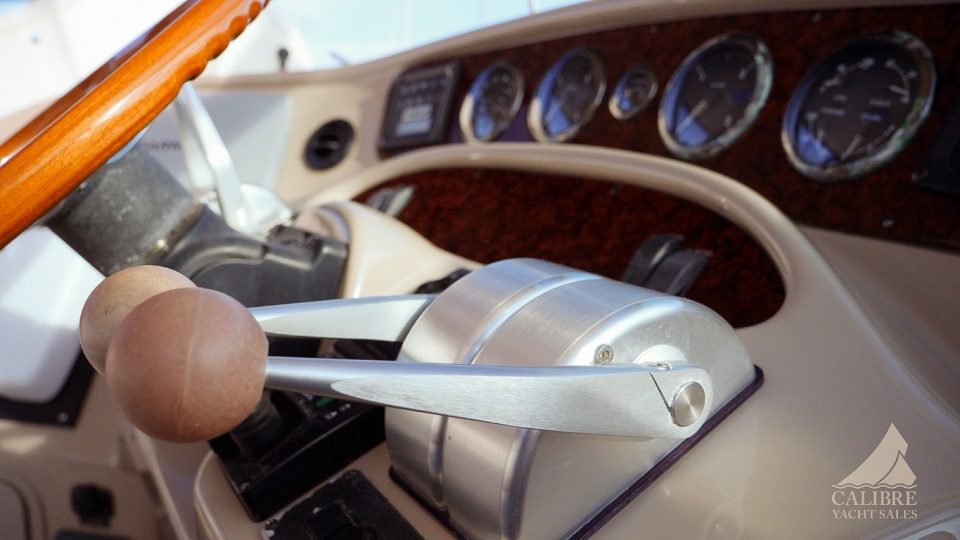

• Caterpillar engine instruments and gauges

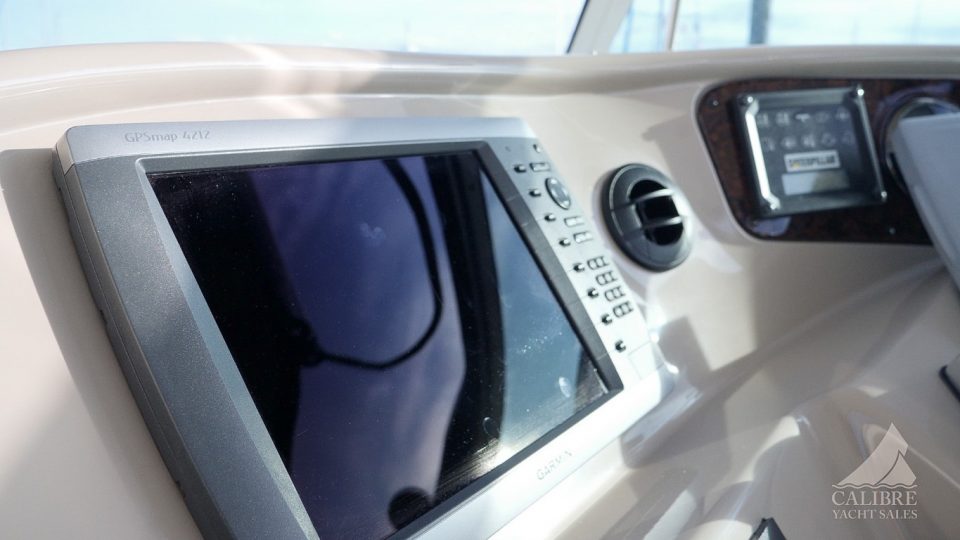

• Garmin digital depth sounder / GPS /model 4212 c/w digital nav. charts
• Raytheon model ST7001[RE1] Auto Pilot
• Raymarine Tri Data depth/speed/water temp
• Furuno LCB radar / model 1815 / new 2019
• New VHF Radio – Uniden UM385 BK
• Rudder angle indicator
• Bow Thruster control / 24v
• 2 station intercom system
• Jabsco remote search light on the bow / 6” incandescent

Other Domestic Items

• Air conditioning and heating / Zone-Controlled Reverse-Cycle Split System, 240V, (Compressor Units in Engine Room, Air Handlers in Cabin), 62,000 BTU – 5.2-Tons / Secondary Back-Up Seawater Pump w/Manifold Valve
• Custom Integral Vent System

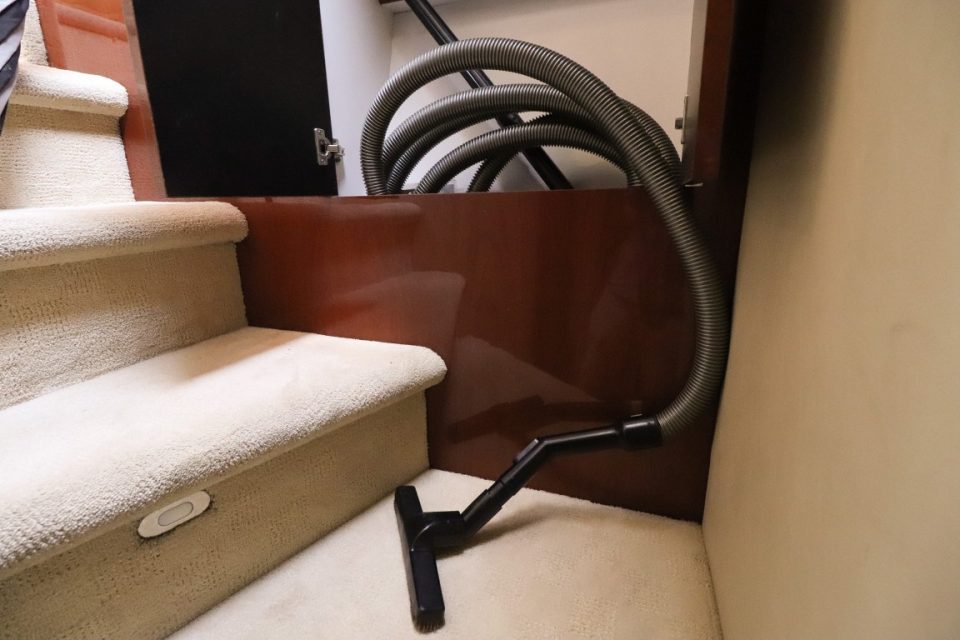

• Central vac system

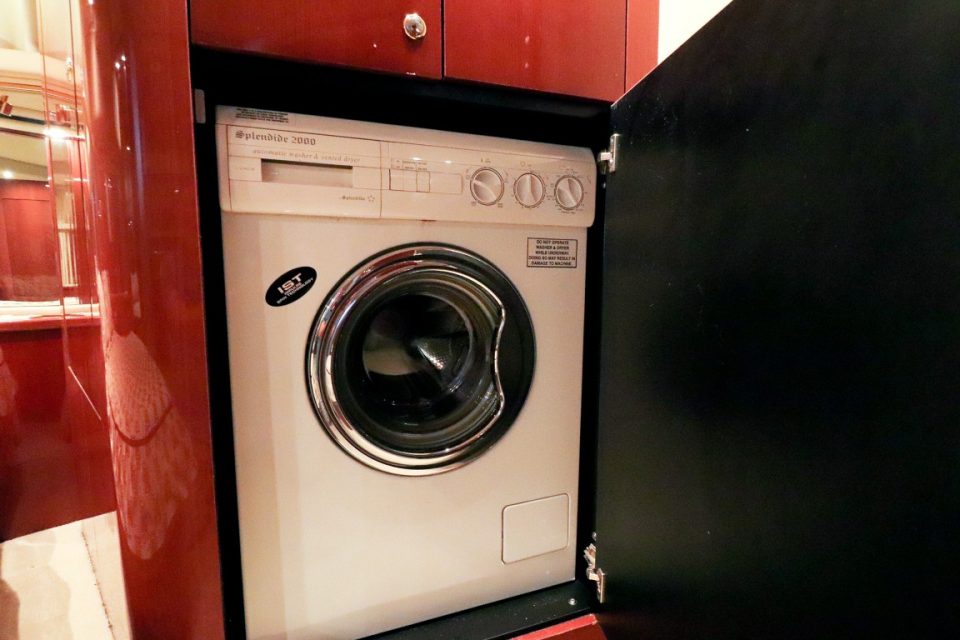

• Washer/Dryer Combo
• 120V Water Heater
• Cabin Sump Pumps,
• 24V – Shower/Air Conditioning Condensate (2)
• Central Drain System
• Head System (VacuFlush)
• Holding Tank Level Indicators – MDP & Heads
• Macerator w/Seacock Interlock System
• Freshwater Washdown & Dockside Inlet w/Cockpit Shower

Cockpit

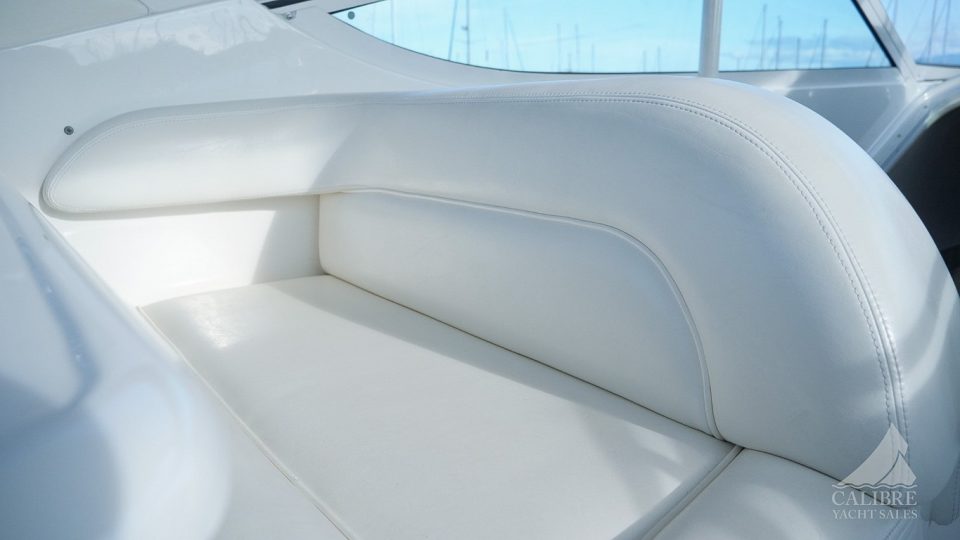

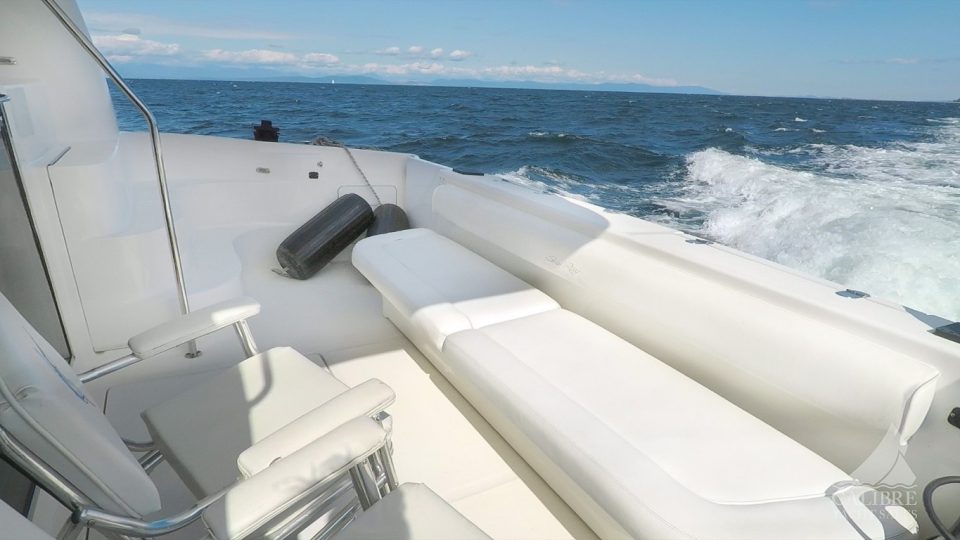

• Full width cockpit includes double wide bench seating – NEW cushion 2020
• Partial covered
• Sliding glass door opening up to the saloon
• Molded staircase w/lockable hatch to upper flybridge/Helm
• Electric Downriggers mounted on Port and Starboard
• Engine Room Access Hatch
• Large storage space below in the Engine compartment

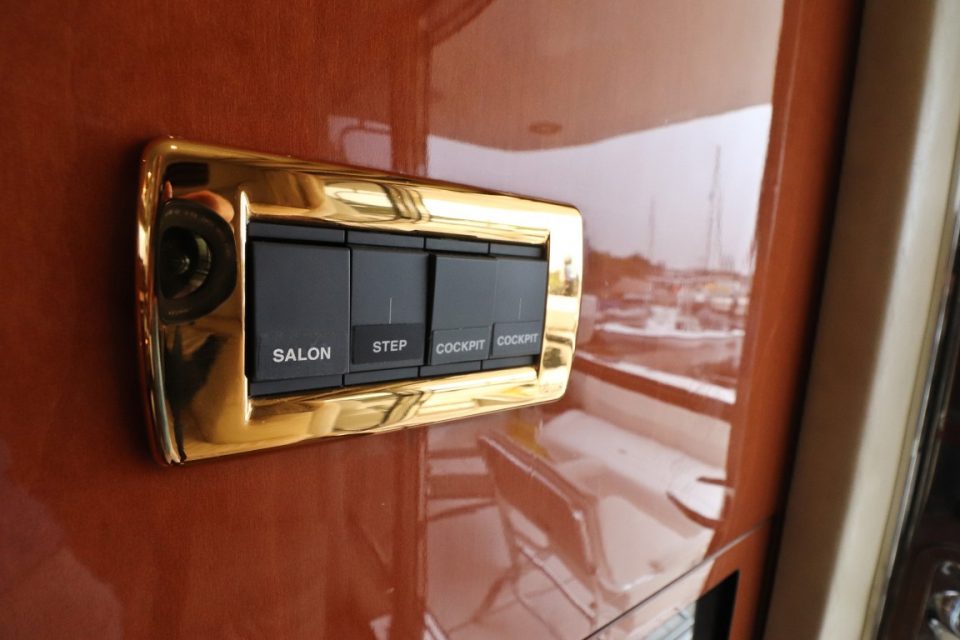

• Lighting, Indirect w/4-Way Switching Capability
• Transom door opens giving access to a massive Hydraulic Swim Grid
• Swim ladder

Electrical

• Generator /16 kW Westerbeke / Remote Start w/Muffler, Freshwater Cooling, Fuel Filter, Diesel w/Sound Box
• 4 X 8D batteries with boxes and group 31 for genset  (New 2019)
• Battery Charger/Converter, 120V/10 Amp/12V
• Battery Charger/Converter, 240V/50 Amp/24V
• Battery Charger Overcurrent Protection
• Battery Equalizer, 60 Amp (2)
• Battery Solenoid Switches, 12V (2), 24V (2)
• Isolators, Galvanic (2)
• Shore Power, Cablemasters (Glendinning)
• 50 Amp/240V/60 Cycle & 50 Amp/120V/60 Cycle w/50′ Cords &
• Wireless Remotes
• Transformers, Shore Power Isolation (2) – 50 Amp/120V/60 Cycle & 50 Amp/240V/60 Cycle

Tankage

• Fuel – 2 x 400 gal (800 gal total) Aluminum
• Water Tank (200-Gallon)
• Water Heater, 240V (20-Gallon)
• Holding Tank w/Dockside Pump-Out (68-Gallon)
